Remote control over network. 8 x powerful relays, 8 digital inputs. To temperature and moisture meter. Delayed engaging possible

8 Potential-free relay outputs - 230Vac / 16 A, 24VDC / 10 A
Relay outputs are individually via HTTPS, SNMP or Command
Startup delay from 0 to 9999 seconds. Adjusted individually
Inrush Delay is set to 1 second
Programmable on / off sequence
Activating relays can be controlled from sensor or inputs
8 channel watchdog via ICMP / TCP Ping
8 signal entrances From NO and NC units, door contacts, etc.
Entrance to sensors Temperature, humidity and air pressure
Messages via e-mail, Sylog and SNMP Trap MQTT
Depending on thresholds for sensor measurement and signal input
LED display for overall power, IP address, sensor data and error reports
Android app and iOS app
DIN bracket

ETHIO8I8PR-SENS
Call +45 56 66 20 20 for price
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

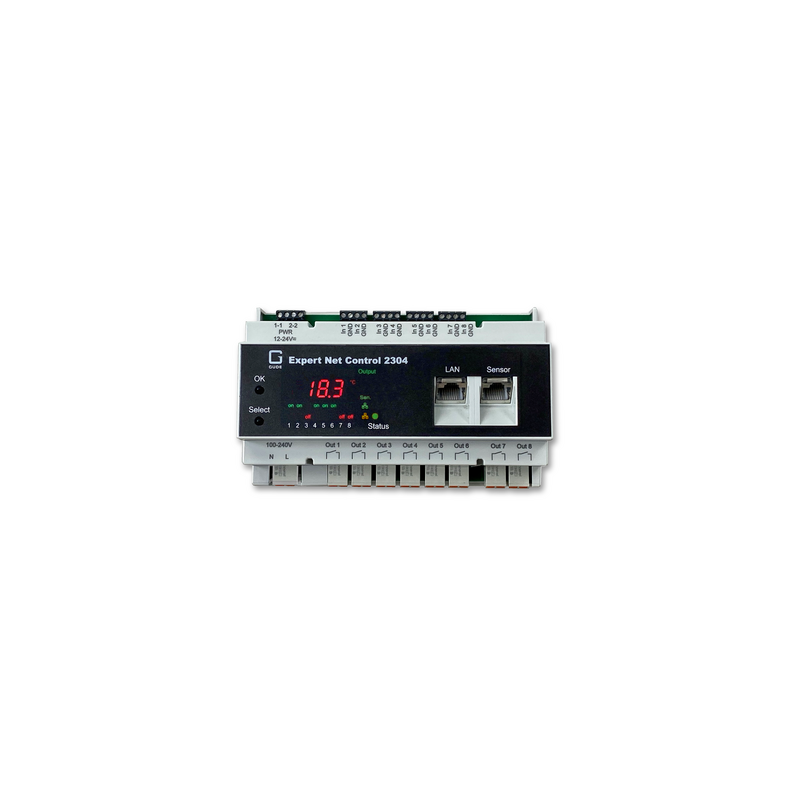

Is an intelligent remote control system that allows the user for comprehensive control options via a TCP / IP network. The device has 8 individually changeable relay outputs and 8 passive signal inputs for polling NO / NC units (eg, smoke detectors and door contacts). Thanks to sensor connection (RJ45), the external I / O system can be expanded with plug-n-play sensors to ambient temperature, humidity and air pressure and leakage monitoring.

In addition to communication via MQTT, telnet, radius and Modbus TCP supported Modern safety standards such as SNMPv3, SSL, SSH and IPv6.

Can be easily mounted on your rail and enables control and monitoring of professional AV and IT installations in no time. The smart monitoring system offers comprehensive control options required for reliable unit control and environmental monitoring. It can easily be integrated into monitoring software from leading suppliers (PRTG, Domotz, Icinga, Nagios, Power IQ, Tivoli).
