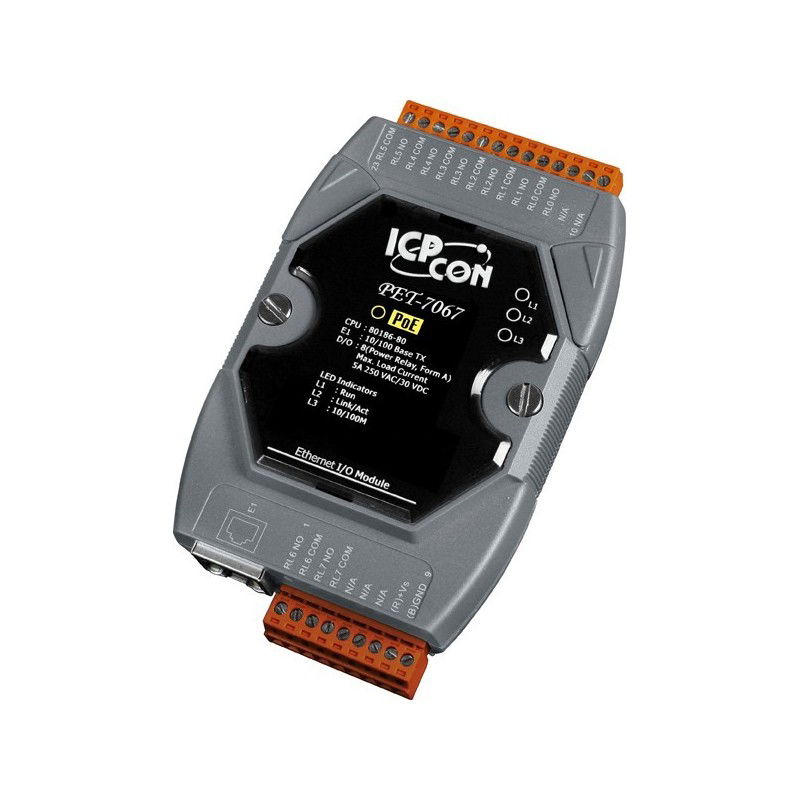

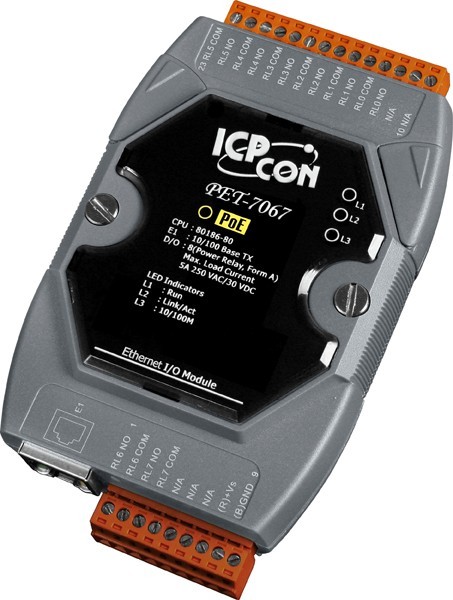

8 x Power Relay COM NO, 24VDC / 250VAC 5A, 1 x RJ45 Ethernet Modbus/TCP/UDP, PoE

Built-in web server
Web HMI
Modbus TCP and Modbus UDP protocols
Good communication security
Dual Watchdog
Operating temperature range: -25 ~ +75°C
I/O Pair - second module's input is mirrored to output
8 x Power Relay - electromechanical, COM NO
Relay switching time: on: 10ms, off: 5ms
Relay contact voltage and current: 24VDC/250VAC/5A
Electromechanical: Avoid inductive load
Supply voltage: PoE or 12 - 48VDC

ETHIO8PR-P-I
2,441.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

ETHIO8PR-PI provides 8 pcs form-A electromechanical relays COM NO It has optical isolation for 3000 VDC of transient overvoltage protection and does not have channel-to-channel isolation. The ignition value and the safe value for the relay are programmable. It can be safely used in applications where hazardous voltages are present.

Forsyning
10 - 30 VDC, 2,5 W via klemrække eller PoE
Netværk
10/100 Mbit m/RJ45-stik
Protokol
Modbus/TCP, TCP/IP og UDP
Udgange
8 stk. relæer ( Slutte ) maks 250VAC/ 5 A eller 24 volt DC / 5 A

4 other products in the same category:

8 x PhotoMOS relay output -...

8 x PhotoMOS relay output - not wear out, 60VDC 1A, 1 x RJ45 Ethernet. Modbus/TCP/UDP, 10 - 30VDC

The Web server
WEB HMI
Modbus TCP / UDP Modbus
Dual Watchdog
Operating temperature: -25 ~ +75°C
I/O Paie connection - input is mirrored to the other's output
8 x PhotoMOS relay (solid state) COM NO
Relay contact voltage: max 60VDC
Relay contact current: max. 1A
Switching times: on: 5ms, off: 0.3ms
Optical isolation to 3000 Vrms
Supply voltage: 10 - 30VDC / 3watt

Price 2,056.00 DKK
Product code: ETHIO8PR-I
On the way in
Quick view
8 x Digital Inputs Wet 0 -...

8 x Digital Inputs Wet 0 - + 50VDC 500Hz, 8 x digital output (OC) + 40VDC 650mA, 2x RJ45, Modbus TCP / UDP, PoE

Built-in Web server
Web HMI
Modbus TCP and Modbus UDP protocols
Good communication security
Dual Watchdog
Operating temperature range: -25 ~ + 75 ° C
I/O Pair connection - input is mirrored in the other's output
8 x Digital input (count): 0 - + 50VDC (500Hz)
8 x Digital Outputs: Open Collector 0 - + 40VDC / 650mA per output
2 x RJ45 Ethernet - Daisy chain
Power supply: PoE or 10 - 30VDC / 3watt
PoE fed NOT proceed to the next module - only data

Price 2,861.00 DKK
Product code: ETHIO8I8O-P2I
On the way in
Quick view
Digital inputs 8 x Wet 0 -...

Digital inputs 8 x Wet 0 - + 50VDC 500Hz, 8 x Digital output (OC) + 40VDC 650mA, 1 x RJ45, Modbus TCP / UDP 10 - 30VDC

Built-in Web server
Web HMI
Modbus TCP and Modbus UDP protocols
Good communication security
Dual Watchdog
Operating temperature range: -25 ~ +75°C
I / O Pair compound - the input is mirrored in the other's output
8 x Digital input (count): 0 - + 50VDC (500Hz)
8 x Digital Outputs: Open Collector 0 - + 40VDC / 650mA per output
Supply voltage: 10 - 30VDC / 3watt

Price 1,972.00 DKK
Product code: ETHIO8I8O-I
On the way in
Quick view
6 x Digital input, 6 x...

6 x Digital input, 6 x Relay output via Ethernet for industrial control applications. 1 x RJ45 PoE

6 x Digital Inputs - Wet (active at DC in)
6 x Power relay outputs - 24VDC / 250VAC / 5A
Protocol: Modbus TCP / UDP
1 x RJ45 Ethernet interface with PoE in
I / O Pair-function - the input is mirrored to the second output
Digital inputs with counter - max 500Hz
the minimum pulse width: 1 ms
Screw terminal
Supply voltage: PoE or 10 - 30VDC / 3watt

Price 2,510.00 DKK
Product code: ETHIO6I6PR-P-I
Physically in stock
Quick view
