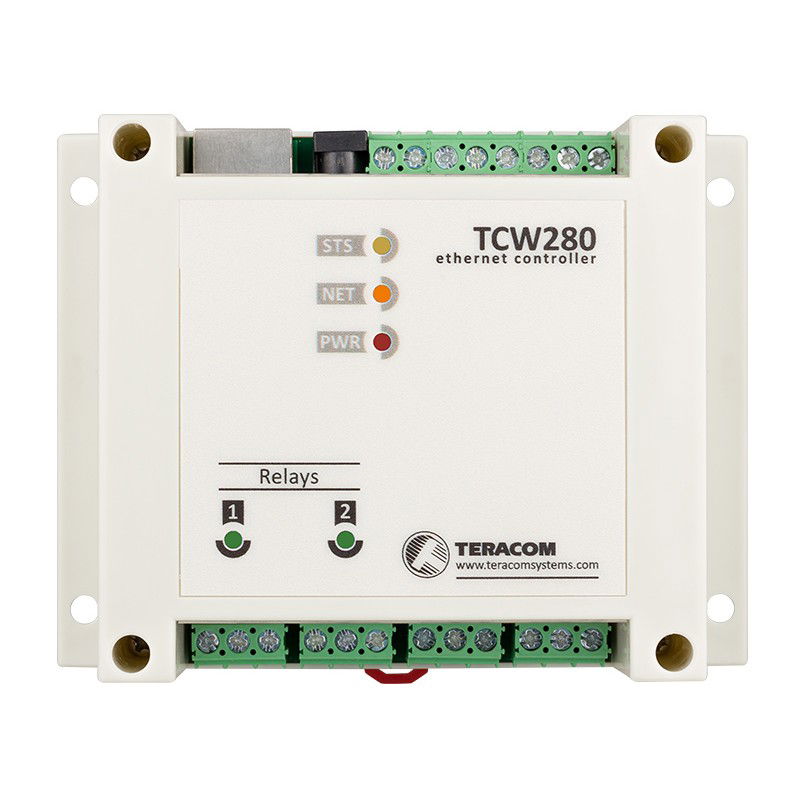

Ethernet-based output module with 2 x analog output, 4 x digital out with PWM, 2 x relay contact, MODBUS

Multi-Network Output Module with Galvanic I / O
10/100 Mbit Ethernet Connection
Password Protected WEB Server
2 Analog Outputs with Voltage and Power Generator
0 - 20mA, 4 - 20mA, 0 - 24mA
0 - 5V or 0 - 10V voltage output
4 digital (open drain) outputs with ON / OFF or PWM
2 relays with COM, NO and NC contacts
4 scheduled actions, 1 time or weekly
NTP, SNMP v2, SNMP trap for up to 5 recipients
MODBUS TCP / IP
HTTP upload with current status in XML or JSON remote server file
HTTP API commands in server and client mode
HTTP Post can be sent to 3 servers
DIN rail / wall mounting
Supply voltage: 10 - 32VDC / max 250mA

TCW280
3,104.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

TCW280 er et analogt/digitalt udgangsmodul med Ethernet-grænseflade og galvanisk isolation mellem strømforsyning og udgange.
Den har 2 analoge udgangskanaler. Hver kanal kan sættes til enten spænding (0-5 eller 0-10V) eller strøm-loop (0-20mA, 4-20mA eller 0-24mA) tilstand.
De genererede signaler har supergod stabilitet og med 12-bit opløsning.
Enheden har også 4 digitale udgange, open Drain. De digitale udgange er enten ON/OFF eller som PWM (puls-vidde-modulation).
I ON/OFF-tilstand kan de bruges som standard digital "kontakt" til styring af enheder med "dry-contact".
I PWM-tilstanden kan udgangen bruges som en samplet "analog" udgang for passende processer - DC-motorstyring, LED-dæmpning osv.
Frekvensen i PWM-tilstand kan være op til 2 kHz.
TCW280 har 2 skifte-relæer. Begge relæer kan aktiveres fra WEB-grænsefladen, M2M-protokollen eller af tidsplanen.
Planlægningsfunktionaliteten tilbyder 4 forskellige tidsplaner for enkelte eller gentagne (ugentlige) opgaver.
Modulet understøtter MODBUS TCP/IP, SNMP og HTTP API til M2M kommunikation.
