Data logger for external temperature and humidity sensors
Sensors are not included - must be purchased separately, see selection
Memory for 70,000 measurements
Temperature, humidity and dew point can be displayed graphically
1-Wire and RS485 sensor interface
Up to 8 Teracom sensors can be connected
MODBUS TCP/IP support
SNMP v2 with trap alarm for 5 email recipients
Secure email
XML/JSON and HTTP API commands for client-server
Dynamic DNS, DynDNS, No-IP and DNS-O-Matic
NTP support for time synchronization
Remote firmware update
Supply voltage: 10 - 32VDC - purchase PSU

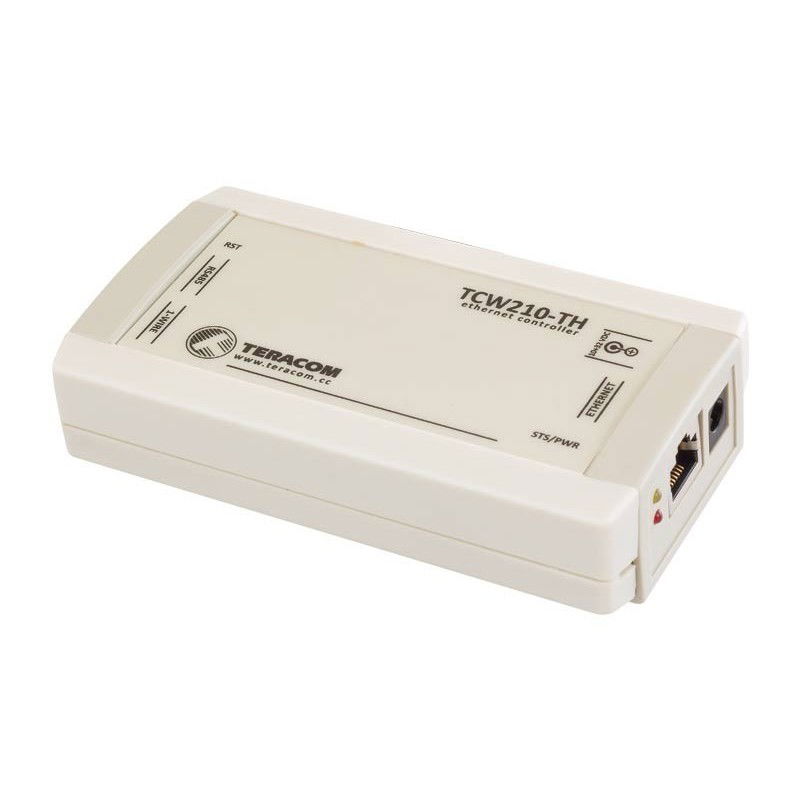

TCW210-TH is a temperature and humidity data logger with Ethernet interface. Real-time data and curves of temperature, humidity and dew point can be monitored with a standard web browser (no special software required).
The device stores all monitored parameters in internal FLASH memory. The logging takes place at the pre-set time interval and/or in an alarm mode. The memory capacity is at least 36 days if the logging is at 1 minute intervals. The log file can be uploaded on a dedicated server by HTTP Post.
The logger uses circular buffer in FLASH memory. When it is full, the new data overwrites the oldest. In this way, the FLASH memory stores the entire log all the time. There is not a command to clear the log for security reasons. A copy of the full log is always available for download.
TCW210-TH supports Teracom temperature or temperature humidity sensors. All of them can be connected either to 1-Wire interface or to more robust industrial RS485. The maximum number of sensors is 8 and it depends on which of the two interfaces is used.
TCW210-TH can start a connection (HTTP Post) to remote dedicated servers with XML or JSON file. The files contain current values for monitoring parameters. HTTP content can be sent periodically or upon pre-set alarm conditions.
Standard protocols such as SNMP, MODBUS/TCP and HTTP/API are also available for M2M applications.
TCW210-TH supports communication with ThingSpeak server. Four different parameters (channels) can be processed simultaneously.
Mains adapter - switch mode type
110-240 VAC to 12VDC/1.5A
DC plug: 5.5/2.1 mm
1 meter cable
Temperature sensor with Dallas chip - up to 8 pieces on the same bus
1-wire communication to the measuring electronics
With connector for cascade coupling to the next sensor
±0.5°C accuracy from -40°C to +85°C
12 bit resolution
Temperature sensor in the box
Very low power consumption
Each device has a unique 64 bit serial number
Temperature sensor TST300V2 with RS485 interface
±0.13°C accuracy from +20°C to +60°C
14 bit resolution
2 x RJ45 for daisy chain connection to the next sensor
IP20 sealed housing
Low power consumption
Modbus address table: see TST300 manual
Log in to danbit.dk and press DOWNLOADS
MODBUS RTU interface
Get your free license key from Teracom
DAQ software for Teracom Ethernet-based measuring devices
User-friendly WEB interface for easy configuration and control
Flexible user access and management
Distributed monitoring units in "client" fashion
Alarm notification
Activity log
Graphics and data display with large visualization
Easy access to raw data, tables, export in CSV format (comma separated)
Database management
Send command to check in "server" and "client" mode
command status log
GSM/LTE alarm - 4G - Global version
Supports all LTE frequencies
Configuration via USB (Windows program) or SMS
2 x digital inputs with "dry contact" or "logic level" mode
2 x analogue input from 0 to 60VDC, 10 bits
2 x relay output with NO/NC contacts
1-Wire interface for 4 Teracom temperature and humidity sensors
Input can be navigated with alarm text etc.
SMS alarm - up to 5 numbers
Email alarm - up to 5 email recipients, SMTP with TLS support
1 relay can be activated with calls from up to 100 phone numbers
Push mode – XML data is sent via HTTP Post to a remote server. Responses from server may contain relay setup.
MQTT 3.1.1 support
Firmware update "on air"
Supply voltage: 8 - 32VDC, 2Watt - purchase PSU
Dimensions: 109 x 65 x 32 mm
Weight: 152g
Remote collection of data, remote meter monitoring, energy management
Energy Meter Interface Module with MODBUS RTU
RS-485 interface with up to 63 units per BUS
Built-in 120 ohm termination resistor
Flash memory data and setup
Power supply from 5 to 32VDC, 25mA at 5VDC
Galvanic isolated digital input - 10mS pollinghastighed
Optional inputs: Open / Closed (dry contact and 32 bit counter)
S0 pulse counter applications :
Remote monitoring of electricity meters
Industrial process control
Remote monitoring of gas meters and water meters
monitoring devices with S0 outputs;
process monitoring
DIN rail mounting
Firmware update via interface.
Dim: 35 x 86 x 59 mm
Temperature and Humidity sensor
RS485 MODBUS RTU
Temperature: +/-0,4 °C (-10 to +60°C), max. +/-0,6°C
Resolution: 0,1°C
Humidity: +/-3,0% RH (20 - 80% RH), max. +/-5% RH
Resolution: 0,1% RH
Supply voltage: 4,5 - 26VDC
LED indicator for status of communication
Long-term stability based on digital signal processing
RS-485 interface (2-wire) carrying up to 32 nodes
Changeable bitrate and other communication parameters
Firmware update via the interface
Size: 81 x 81 x 30 mm
Weight: 66g
