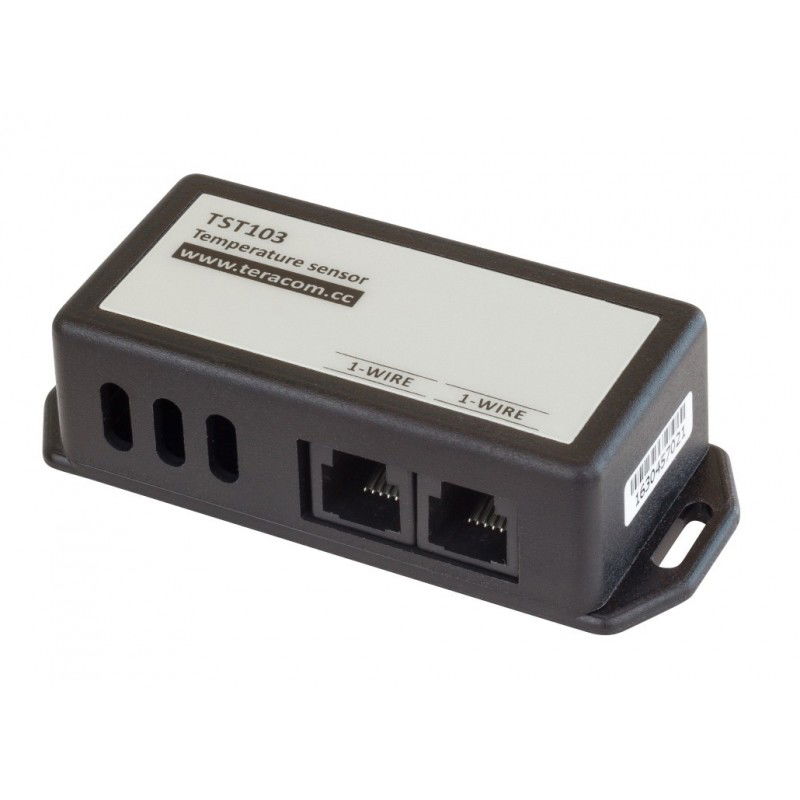

1-wire temperature sensor, -40 - + 85 ° C, box with 2 x RJ11. Cascading. Dallas chip, wall mount

Temperature sensor with Dallas chip - up to 8 pieces on the same bus
1-wire communication to the measuring electronics
With connector for cascade coupling to the next sensor
±0.5°C accuracy from -40°C to +85°C
12 bit resolution
Temperature sensor in the box
Very low power consumption
Each device has a unique 64 bit serial number

TST103
395.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

TST103 is a digital temperature sensor with a 1-Wire interface. It is an excellent solution for temperature monitoring and control.
It focuses on applications that require precise temperature monitoring – server rooms, offices, drug and food stores, etc. It is also suitable for smart office applications, as well as for data loggers and thermostats.
A special accessory, allows easy installation on 19” cabinets, can be ordered separately.
The digital temperature sensor provides high measurement accuracy as low as ±0.5°C in -10 to +85°C range. It works with 12 bits precision from the onboard digital-to-analog converter. The current consumption is lower than 2mA, while the supply voltage is from 3 to 5.5VDC.
TST103 communicates with controllers over a 1-Wire bus. Each sensor has a unique 64-bit serial code, which allows multi-sensors support over the same 1-Wire bus. The digital temperature sensor utilizes two RJ11 connectors for an easy daisy chain wiring.
