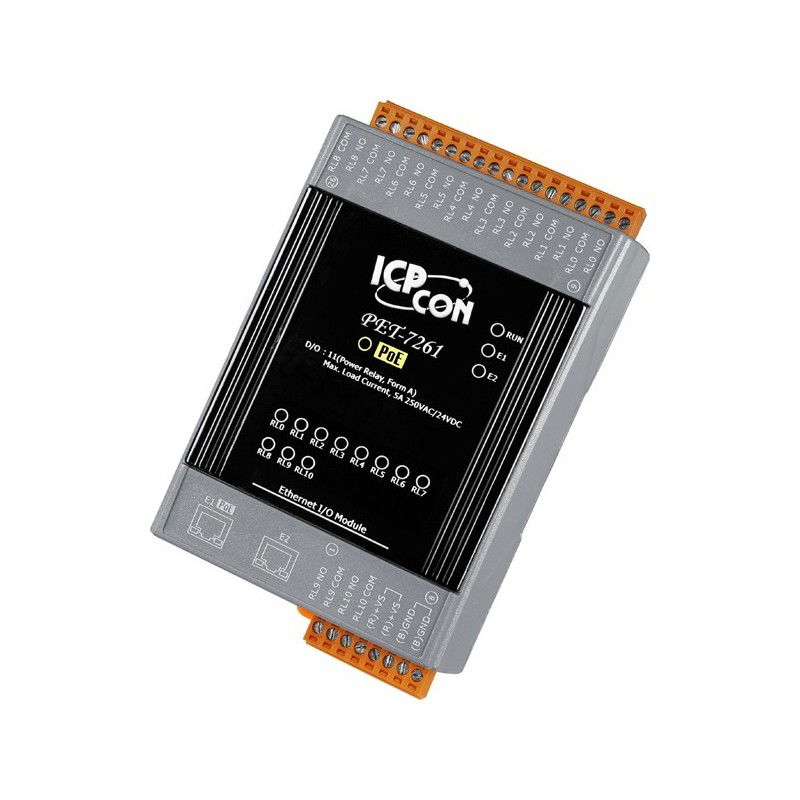

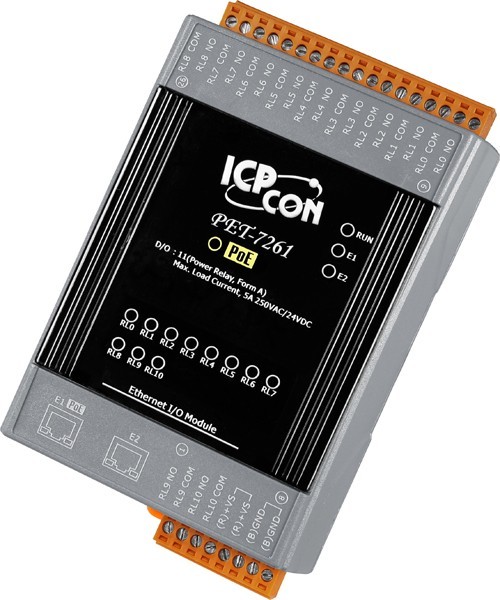

11-channel Power Relay Module for Ethernet / MODBUS with PoE. 2 LAN ports for Daisy Chain

Built-in Web server
Web HMI
Modbus TCP and Modbus UDP protocols
Good communication security
2-port Ethernet switch for daisy-chain topology
Double watchdog
Wide operating temperature range: -25 ~ + 75 ° C
I / O pair connection. Mirrors the input to output
Built-in I / O to 11 x Power relay: 250VAC / 24VDC 5A
Supply voltage: 10 - 30VDC
PoE voltage is not fed to the LAN port 2
DIN mount

ETHIO11PR-P2I
2,752.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

ETHIO11PR-P2i gives 11 Form A-electromechanical relays. It has optical isolation to 3000 VDC of the transient over-voltage protection and has no channel-to-channel isolation. Power-on value and safe value for the relay are programmable. It can be safely used in applications where hazardous voltages.

Forsyning
10 - 30 VDC, 2,5 W via klemrække eller PoE
Netværk
10/100 Mbit m/RJ45-stik. Indbygget 2 ports switch PoE videre føres ikke
Protokol
Modbus/TCP, TCP/IP og UDP
Software
Leveres med konfigureringssoftware til Windows 2000, XP, Vista, WIN7/8/10
Udgange
11 stk. relæer ( Slutte ) maks 250VAC/ 5 A eller 24 volt DC / 5 A
