3 thread PT 100 sensor in metal house 4 x 80 mm, - 20 ° - +130 ° C, 2 meter cable
3 thread PT 100 sensor
metal house 4 x 80mm
2 meter cable
accuracy: +/- 1 ° C
Temperature range: - 20 - +130°C

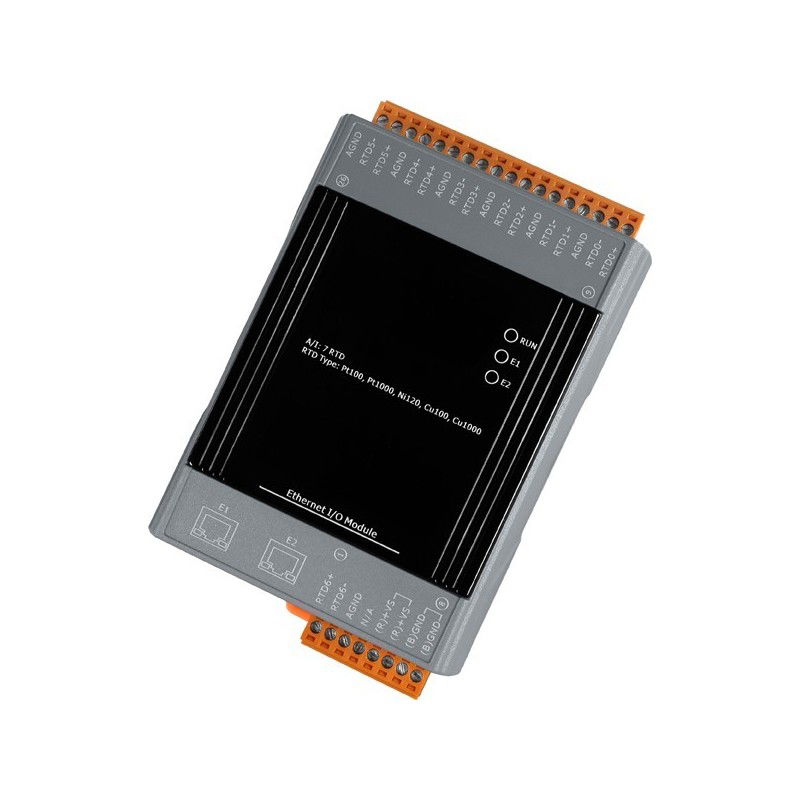

7 pcs. differentialindgange for temperature sensor
Pt-100, Pt-1000, Ni120, Cu100/1000
With built-in 2 port ethernet switch
LAN Daisy Chain to the next module
Built-in Web server
Web HMI
Modbus TCP and Modbus UDP protocols
16 bit resolution - 12 samples / second
Good communication security
Dual Watchdog
Operating temperature: -25 to + 75 ° C
I / O Pair compound. Mirroring input to output
Supply voltage: 10 - 30VDC / 3watt
ETHIO7RTD-2I is especially designed for long distance RTD measurement. It has automatic compensation for three-wire RTD regardless of the length of the wires and provides for open ledningsdetektion to the RTD measurement. ETHIO7RTD-2I is by 7 channels, each of which can be connected to different kinds of RTD (Pt100, Pt1000, Ni120, CU100, Cu1000). ETHIO7RTD-2I are also fully RoHS compliant and has 4 kV ESD protection and 2500 VDC intra-module isolation.
3 thread PT 100 sensor
metal house 4 x 80mm
2 meter cable
accuracy: +/- 1 ° C
Temperature range: - 20 - +130°C
Built-in Web server
Web HMI
Modbus TCP and Modbus UDP protocols
Good communication security
1 x RJ45 port Ethernet
Dual Watchdog
Operating temperature range: -25 to + 75 ° C
I / O Pair-connection input is mirrored in the other's output
7 x RTD Interface: Pt100, Pt1000, Ni120, CU100, CU1000
Differentialindgange to the temperature sensor, 2 and 3-wire solution
16bit
Power supply: PoE or 10 - 30VDC / 2.5watt

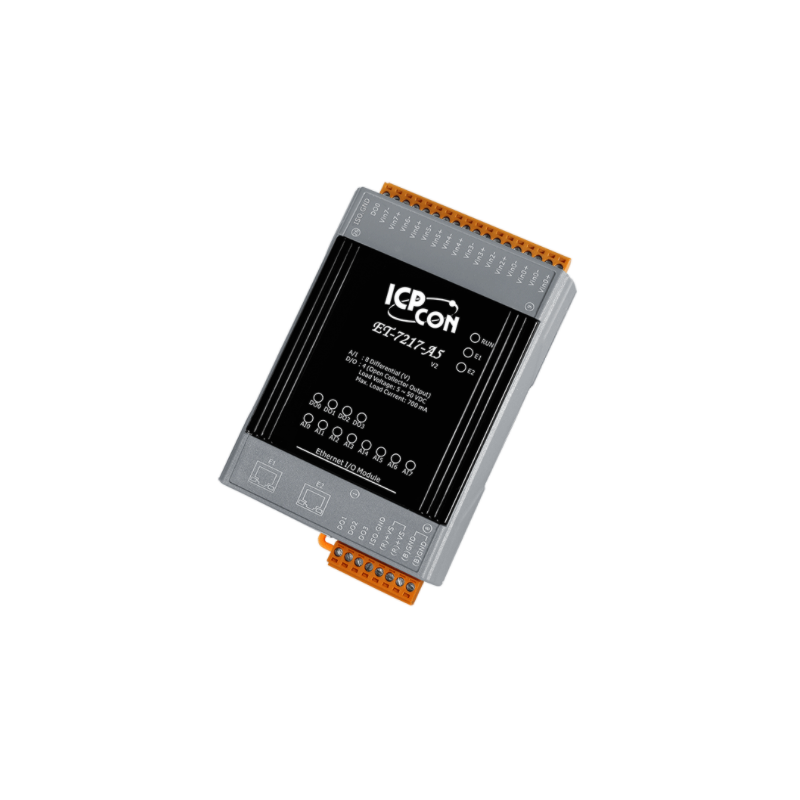

Ethernet I/O module for the measurement of analog high-voltage differential inputs
8 x Analog input: +/-50V, +/-150V
4 x Digital output - Isolated Open Collector, max. 50VDC, 700mA per channel
16bit solution
Sample frequency: Normal mode 10 samples per second
Sample frequency fixed mode: 50 samples per second
Supports MODBUS TCP and UDP
Integrated Web Server - access with ID, password and IP filter
Power up and safe levels can be programmed
2 x RJ45 10 / 100Mbit ports - daisy-chain
Pair-connection - mirror one input to others output
Supply voltage: 12 - 48VDC 4,2Watt
Dimensions: 120 x 76 x 38 mm
Housing: plastic with DIN bracket
Built-in Web server
Web HMI
Modbus / TCP and Modbus / UDP protocols
Good communication security
Dual Watchdog
Operating temperature range: -25 ~ + 75 ° C
I/O Pair-link - the input is mirrored in the other's output
6 x Analog inputs: 500mV +/- - +/- 10 V, 0 - 20mA (16bit)
2 x Analog outputs: 0 - +/- 10VDC, 0 - 20mA (12bit)
10 samples per second
2 x Digital input (count): Wet / Dry, max. + 30VDC (100Hz)
2 x Digital outputs: Open Collector, max. 50VDC / 700mA
2 x RJ45 Ethernet Daisy chain
Supply voltage: PoE or 10 - 30VDC / 4Watt
Built-in Web server
Web HMI
Modbus TCP and Modbus UDP protocols
Good communication security
1 x RJ45 port Ethernet
Dual Watchdog
Operating temperature range: -25 to + 75 ° C
I / O Pair-connection input is mirrored in the other's output
7 x RTD Interface: Pt100, Pt1000, Ni120, CU100, CU1000
Differentialindgange to the temperature sensor, 2 and 3-wire solution
16bit
Supply voltage: 10 - 30VDC / 2.5watt
