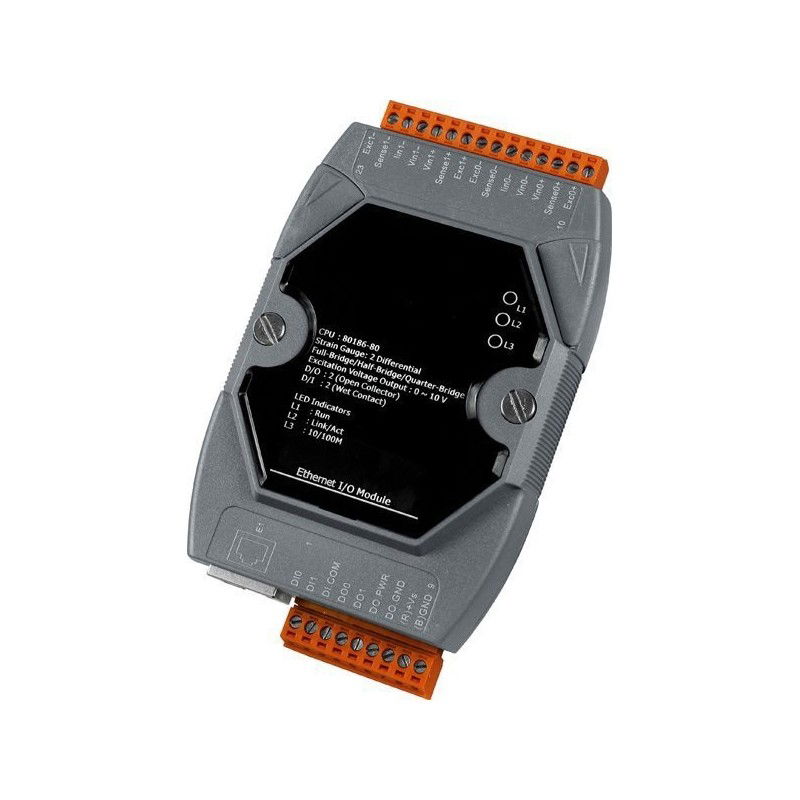

2 x Analog to Load Cell, +/- 2.5V, 0-20mA, 1 x Excitation like cell, 2x digital zoom, 2 x Digital Output (OC). LAN
2 stk. analog indgange samt 1 analog og 2 digital indgange
Built-in Web server
Web HMI
Modbus / TCP and Modbus / UDP protocols
Good communication security
Dual Watchdog
Operating temperature range: -25 ~ + 75 ° C
I/O Pair-link - the input is mirrored in the other's output
6 x Analog inputs: 500mV +/- - +/- 10 V, 0 - 20mA (16bit)
2 x Analog outputs: 0 - +/- 10VDC, 0 - 20mA (12bit)
10 samples per second
2 x Digital input (count): Wet / Dry, max. + 30VDC (100Hz)
2 x Digital outputs: Open Collector, max. 50VDC / 700mA
1 x RJ45 Ethernet
Supply voltage: 10 - 30VDC / 4Watt
ETHIO8I4O-I is a multifunctional module with 6-channel analog inputs, 2-channel analog outputs 2-channel digital inputs and 2-channel digital outputs. It provides various programmable analog inputs (+/- 500 mV, +/- 1 V, +/- 5V, +/- 10V, +/- 20 mA, 0 ~ 20 ~ 4 mA and 20 mA) and analog outputs (+/- 5V, +/- 10 V, 0 ~ 20 ~ 4 mA and 20 mA). Each analog input has allowed to set up a proper range of 240 Vrms with high voltage protection. Each analog input / output can be programmed to accept the current or voltage as an input / output depending on the location of the corresponding jumper.
2 stk. analog indgange samt 1 analog og 2 digital indgange
7 pcs. differentialindgange for temperature sensor
Pt-100, Pt-1000, Ni120, Cu100/1000
With built-in 2 port ethernet switch
LAN Daisy Chain to the next module
Built-in Web server
Web HMI
Modbus TCP and Modbus UDP protocols
16 bit resolution - 12 samples / second
Good communication security
Dual Watchdog
Operating temperature: -25 to + 75 ° C
I / O Pair compound. Mirroring input to output
Supply voltage: 10 - 30VDC / 3watt
Built-in Web server
Web HMI
Modbus / TCP and Modbus / UDP protocols
Good communication security
Dual Watchdog
Operating temperature range: -25 ~ + 75 ° C
I/O Pair-link - the input is mirrored in the other's output
6 x Analog inputs: 500mV +/- - +/- 10 V, 0 - 20mA (16bit)
2 x Analog outputs: 0 - +/- 10VDC, 0 - 20mA (12bit)
10 samples per second
2 x Digital input (count): Wet / Dry, max. + 30VDC (100Hz)
2 x Digital outputs: Open Collector, max. 50VDC / 700mA
1 x RJ45 Ethernet
Power supply: PoE or 10 - 30VDC / 4Watt
MODBUS TCP/IP module with analogue in- and output
User-definable Modbus TCP Slave addressing
Max. 10 clients connected
Supports RESTful API for IIoT applications
Supports peer-to-peer communications
Saves time and wiring costs with daisy-chain topologies
Active communication with WIN-OPC UA Server
Supports SNMP v1
Easy mass deployment and configuration with Device Search utility
Friendly configuration via Web browser
Temperature range -20 to +70°C
DIN Mount
Phoenix contacts
Supply 12 - 36VDC/ 3 Watt
Size: 124 x 84 x 28 mm
