3 thread PT 100 sensor in metal house 4 x 80 mm, - 20 ° - +130 ° C, 2 meter cable
3 thread PT 100 sensor
metal house 4 x 80mm
2 meter cable
accuracy: +/- 1 ° C
Temperature range: - 20 - +130°C
Built-in Web server
Web HMI
Modbus TCP and Modbus UDP protocols
Good communication security
2 x RJ45 port Ethernet - Daisy chain to the next module
Dual Watchdog
Operating Temperature Range: -25 to + 75 ° C
I / O Pair-connection input is mirrored in the other's output
7 x RTD Interface: Pt100, Pt1000, Ni120, CU100, CU1000
Differentialindgange to the temperature sensor 2 and 3- wire
16bit resolution
Power supply: PoE or 10 - 30VDC / 2.5watt
PoE is NOT passed on to the next module - only data.

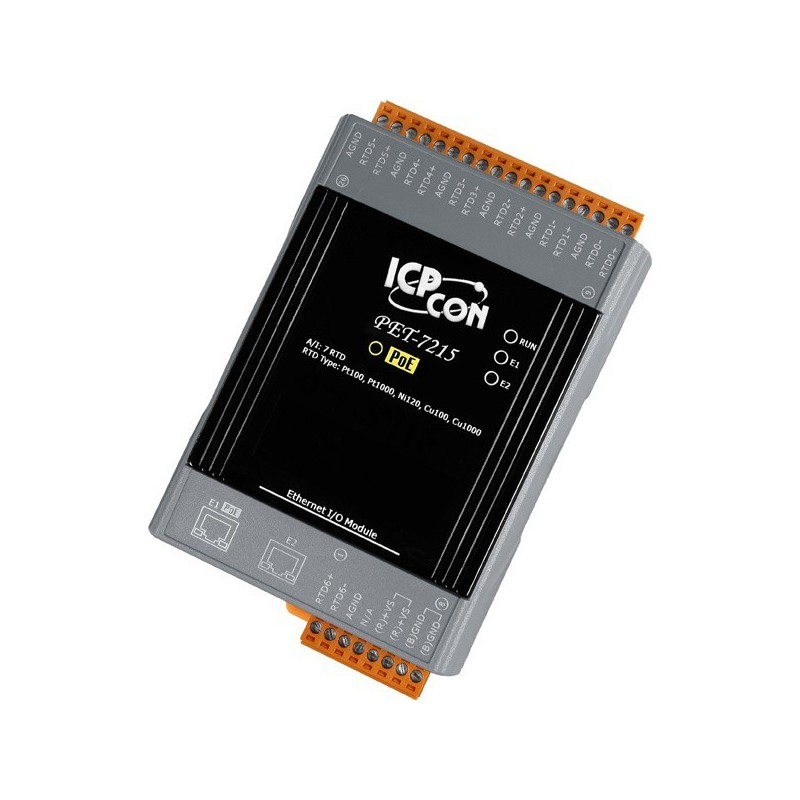

ETHIO7RTD-P2i is especially designed for long distance RTD measurement. It has automatic compensation for three-wire RTD regardless of the length of the wires and provides for open ledningsdetektion to the RTD measurement. ETHIO7RTD-P2i provides 7 channels, each of which can be connected to different types of RTD (Pt100, Pt1000, Ni120, CU100, Cu1000). ETHIO7RTD-P2i are also fully RoHS compliant and has qualification for 4 kV ESD protection as well as 2500 VDC isolation within the module.
3 thread PT 100 sensor
metal house 4 x 80mm
2 meter cable
accuracy: +/- 1 ° C
Temperature range: - 20 - +130°C
Built-in Web server
Web HMI
Modbus TCP and Modbus UDP protocols
Good communication security
1 x RJ45 port Ethernet
Dual Watchdog
Operating temperature range: -25 to + 75 ° C
I / O Pair-connection input is mirrored in the other's output
7 x RTD Interface: Pt100, Pt1000, Ni120, CU100, CU1000
Differentialindgange to the temperature sensor, 2 and 3-wire solution
16bit
Power supply: PoE or 10 - 30VDC / 2.5watt
8x Analog Inputs to RS485
16-bit Readout
Power: 10 - 30 VDC
Dimensions: 123mm x 72mm x 35mm
Modbus RTU and DCON
16 analog inputs with common ground
or 8 differencial inputs.
Up to +/- 10 Volt, 250kHz
16 Bit resolution
Software Support: LabVIEW, Matlab
Software Support : C / C++, Visual Basic, Visual Studio.net
Power from the USB port
4 single ended input +/- 10V analog, +/- 5V, +/- 2.5V ... +/- 20mV
128kS / s for each channel sampling rate
FIFO: 4000 samples - memory 30 million data samples
24bit resolution
2 x analog output +/- 10V, +/- 5V, 0-5 / 10V
analog output 12bit resolution
Trigger mode: SW, Ext analog
1 x 32bit counter, max. 30kHz
1 x Encoder input: Qadrant / CW / CCW and pulse
3 x digital inputs (wet) up to + 30VDC
4 x digital output (Open Collector) up to + 30VDC, 100mA
Overload protection up to 1.3A
1 x Ethernet port RJ45
Security: ID, password and IP filter
Powered by the PoE or 12 - 48VDC, 2,6W
Dimensions: 120 x 76 x 38 mm | Housing: Metal, with DIN bracket
Operating temperature: -25 - + 75 ° C
