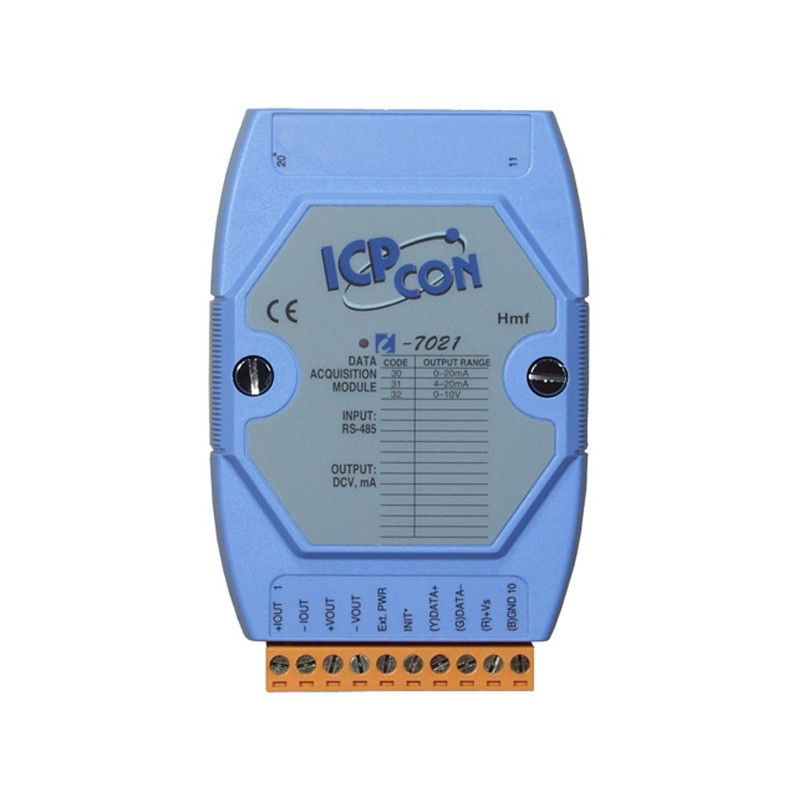

Interface: RS-485
Bias Resistance: No (Normally supplied by RS-485 Master. Alternatively you can add a tM-SG4 or SG-785.)
Format: (N, 8, 1) (N, 8, 2) (E, 8, 1) (O, 8, 1)
Baud Rate: 1200 to 115200 bps
Protocol: DCON
Dual Watchdog: Yes, Module (1.6 seconds), Communication (Programmable)
LED Indicators / Display
System LED Indicator: Yes, 1 as Power / Communication Indicator
Isolation
Intra Module Insulation, Field-to-Logic: 3000 VDC
EMS Protection
ESD (IEC 61000-4-2): ± 4 kV Connector for each terminal
EFT (IEC 61000-4-4): ± 4 kV for Power Line
Overvoltage (IEC 61000- 4-5): ± 0.5 kV for Power Line
Power
Reverse Polarity Protection: Yes
Input Range: +10 ~ +30 VDC
Consumption: 1.8 W
Mechanical
Dimensions: (L x W x H) 123 mm x 72 mm x 35 mm
Installation: DIN Rail or Wall Mount
Environment
Operating Temperature: -25 to + 75 ° C
Storage Temperature : -40 to + 85 ° C
Moisture: 10 to 95% RH, Non-Condenser End

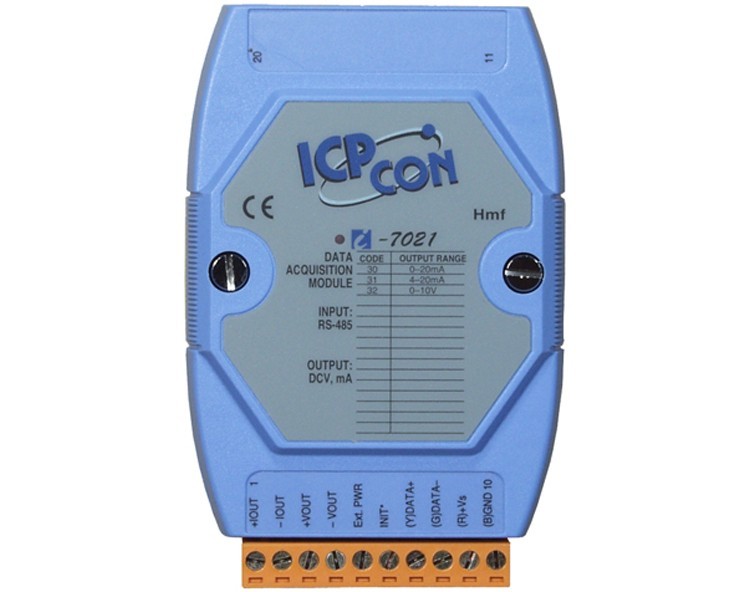

Analog Output
Channels: 1
Range:
Voltage: 0 ~ +10V,
Current: 0 ~ +20 mA, +4 ~ +20 mA
Resolution: 12-bit
Accuracy: 0.1%
Readout Accuracy: ± 0.5% of FSR
DA Output Response Time: 10ms
Programmable Output Slope:
Voltage: 0.0625 ~ 1024 , 0 V / second
Current: 0.125 ~ 2048 mA / Second
Current load resistance:
Internal power: 500 Ω
External power: 1050 Ω
Open wire detection (current only): Yes
Short-circuit: Yes
Power-on Value: Yes
Safe Value: Yes
