125 Ohm resistance to current measurement. Convert 0-20mA loop to voltage for measuring module
125 Ω Shunt resistance, 1 pc. pr. Channel

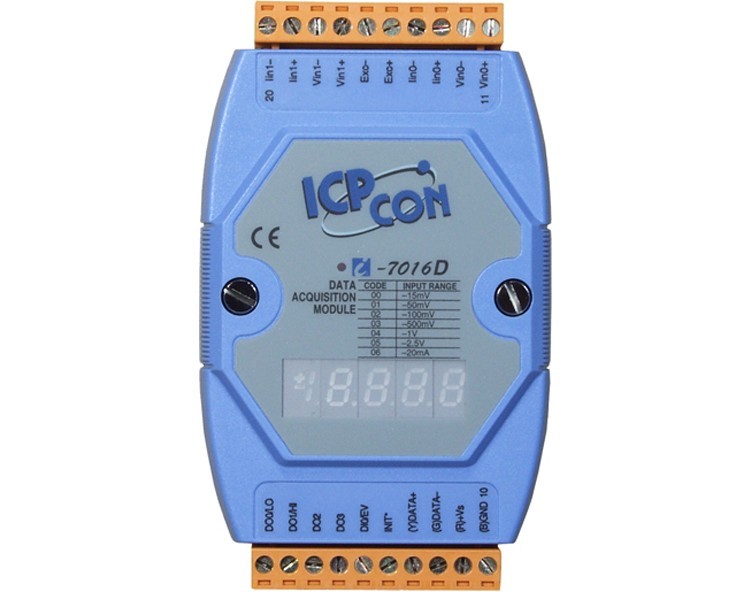

RS485 Module for load cells
2 analog inputs for 4 wire load cell,
1 excitation Exit
1 Digital input
4 digital outputs
Supply: 10 - 30VDC
In the industrial environment, there are many examples where force is to be converted to a measurable electrical output.
In most cases, a strain gauge bar meter in a load cell is used. But the question is, how should we handle these electrical output measurements? In this situation, the M485-AD16DA12 ID certainly is the best choice. Not only can the module process data from a load cell or bar meter, it also has linear mapping that can be used to directly convert the resulting data to weight via a custom correspondent table. M485-AD16DA12 ID supports full-bridge voltage meters and provides 2 analog input channels, 1 excitation voltage output channel, 1 digital input channels and 4 digital output channels. The module has a programmable input range (± 15 mV, ± 50 mV, ± 100 mV, ± 500 mV, ± 1 V and ± 2.5 V), and each analog input channel can be configured individually. Excitation voltage output may be in the range 0 ~ +10 V with a driving efficiency of 40 mA. Digital output channels can also be set as high or low alarm outputs.
125 Ω Shunt resistance, 1 pc. pr. Channel
RS485 module with volt / mA output. Digital input
4 x analog output - 0 - +/- 10V and 0-20mA
Resolution: 14bit
5 x Digital input - Active high on contact for frame
RS485 Bus - Module is Slave
Format: (N, 8, 1) (N, 8, 2) (E, 8, 1) (O, 8, 1)
Baud Rate: 1200 ~ 115200 bps
Supply: 10 ~ 30 VDC
Module for PT100 or PT1000 sensor with 4-, 3- or 2-wire
for nickel temperature sensor (Ni RTD)
16 bit resolution
15 Measurements per second (Total)
Supply voltage: 10 - 30vdc / 1 Watt
Master RS485 must establish bias voltage
Dim: 123 x 72 x 35 mm
1 A/D indgang til vejecelle,
1 D/A udgang
4 digitale udgange
8-channel True RMS Input
±0.15% factory calibrated accuracy
The RMS input range can be from +150 mVrms to +10 Vrms
Designed for standard operation with frequencies of 45 Hz to 10 KHz
Channels can be individually configured
