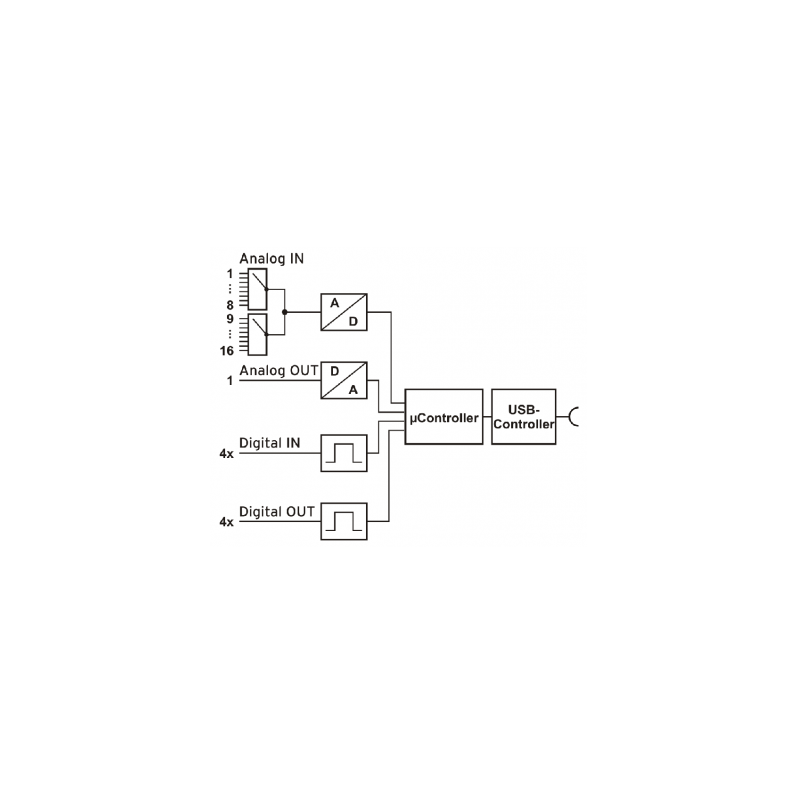

16 analog inputs via USB port, 10-100S / S
Resolution: 12 bit
Sample-speed: 10Hz per channel
1 Analog output +/- 5V
4 digital outputs TTL ( CMOS
4 digital inputs TTL / CMOS
Power supplied from the USB port
DAQ Software: Purchase NextView

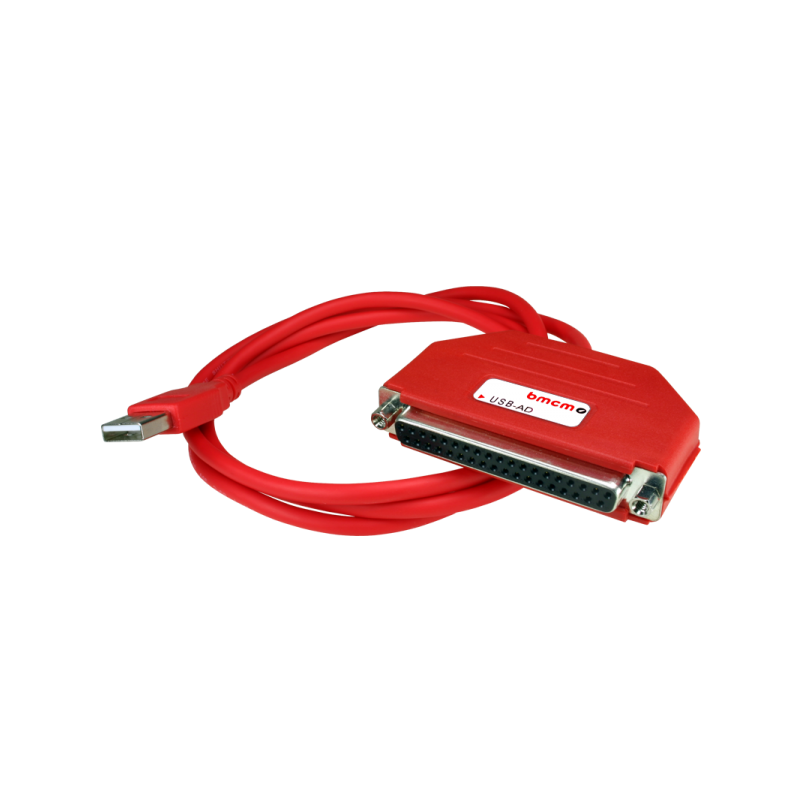

Measurement and control simple. USB-AD16S12+ is USB data collection system ideal for universal applications and because of the small size perfectly suitable for mobile use - just connect and get started! Extra small. Extra red. The unique idea of USB-AD16S12 + placed in D-sub housing is optimal for fieldwork.
Digital modes are recorded or controlled at 4 digital inputs and outputs each. Digital inputs are sampled time synchronously with analog inputs.
The device is supplied with power via USB interface. This reduces the cabling effort to a minimum and makes mobile measurements much easier.
The data collection system can be used under Windows® XP / 7/8/10 as well as under Mac OS X, free BSD and Linux.
Complete software for installation and programming USB-AD16S12+ is free. NEXTVIEW®. Try for free.
The DAQ system is supported by NEXTVIEW®, software for data collection and analysis.
A fully functional 14-day sample is included in the delivery to the test directly functionality of USB-AD16S12+.
Forlængerkabel med DB37 han til DB37 hun stik
AWG28
Guldbelagte stik
Terminal card with screw terminals
DB37 male / female cable of 1.8m included
For DIN rail mounting
103 x 85 x 50 mm (W x L)
Supports M-Bus Standard: EN-13757, CJ / T -188
1 x RJ45 Modbus TCP
1 x M bus for maximum 100 slaves
M-Bus Power limiter
1 X RS232 for firmware update
Modbus TCP / RTU Function code 0x03 and 0x04 To read measurement data
Baud rate: DIP switch to M-Bus and serial port from 300 to 115200 BPS. Standard M-Bus port- Data format: data bit 8, parity straight, stop bit 1
supports up to 100 m bus slaves
m-bus power protection
short circuit protection on M-bus
Firmware updates via serial port
gives PWR, MTX and MRX 3 LED Indicators
Wall Mounting
Dim: 123 x 102 x 40 mm
Supply voltage: 10 - 30VDC
Web based controller with I/O, 1-wire bus
4 x digital inputs (Common GND)
1-wire bus, max. 16 sensors (temp / moisture etc.)
Permissions: Administrator, Manager, User
Tasks
50 Scheduled
50 Conditional
16 Automatic Restart
20 Over Rule Terms
E-mail Alarms by defined conditions
Supports encrypted e- Mail servers such as Gmail
RTC with NTP server synchronization
No software Required
Basic Script Support for Advanced Flexibility
Configurable Logging
Graph (Logged Data)
HTTPS / TLS encrypted
Static or DHCP IP Address Configuration
Modbus, SNMP, Remote Service, IP Filtering
On-site update
Supply voltage: 9 - 28VDC
Compact Modbus / TCP to RTU / ASCII gateway with PoE
not to be programmed
1 x RJ45 10 / 100Mbps
1 x RS232 (terminal block) - 5-pin
1 x RS485 (terminal block ) - 2-pin
baud rate up to 115,200 bps
Self-tuner for RS232
IEEE 802.3af - PoE (PD)
Supply voltage u / PoE: 12 - 48VDC 2Watt
Dimensions: 90 x 52 x 27 mm
DIN bracket
Operating temperature: -25 - +75°C
Built-in Web server
Web HMI
2 x RJ45 - Daisy Chain
Modbus TCP and Modbus UDP protocols
Good communication security
Dual Watchdog
Operating temperature range: -25 ~ +75 ° C
I / O connection input pair is mirrored to the other's output
3 x Analog input +/- 10VDC, 0 - 20mA (differential)
6 x Digital input with counter
3 x Relay outputs COM, NO
