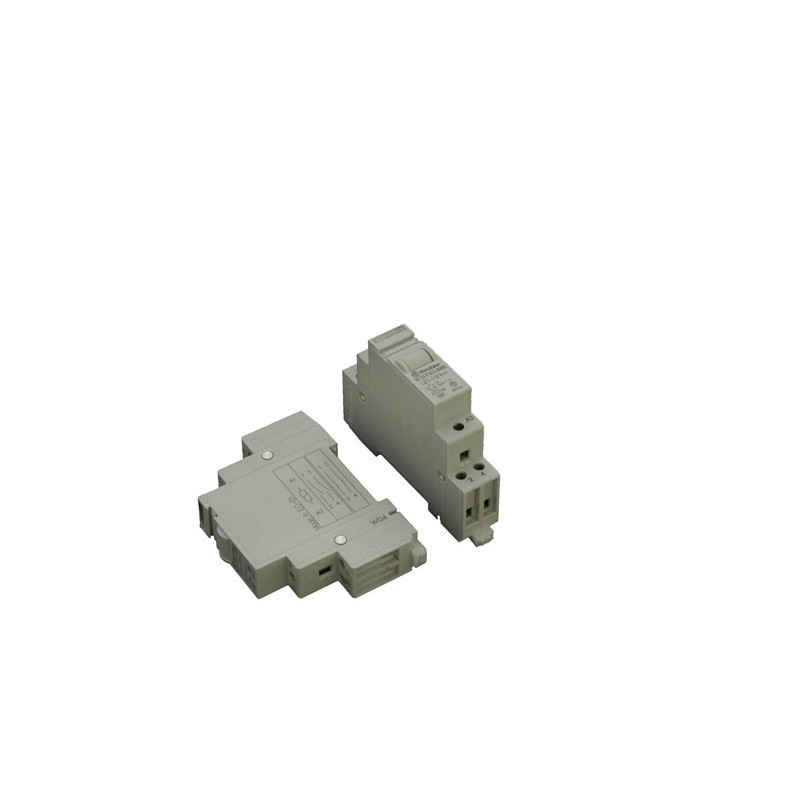

Relay, 2-pole relay connect COM N.O. to 30VDC, 230VAC. Control voltage 12VDC / 105mA

250 VAC relæ til DIN skinne

DIN-RELAY
534.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Used when the relay output is not powerful enough to the existing equipment.
relays for DIN rail.

Control voltage: 12V DC 105 mA.
Contact data 2 pin plug 250 VAC or 30 VDC, 20 A, max.
knob for manual testing.
Screw terminals for all connections.
17.5 mm wide EN50022 enclosure, IP20-close.

Driftstemperatur
-40° ~ +40° C
