8 x Digital inputs Wet, 0 - 500Hz + 50VDC, 8 x Digital output (OC) + 40VDC 650mA, Wifi, Modbus TCP/UDP, 10 - 30VDC

Wireless Digital I / O module, Wifi 2.4GHz
Built-in Web server
Web HMI
Modbus TCP and Modbus UDP protocols
Good communication security
Dual Watchdog
Operating Temperature Range: - 25 ~ + 75 ° C

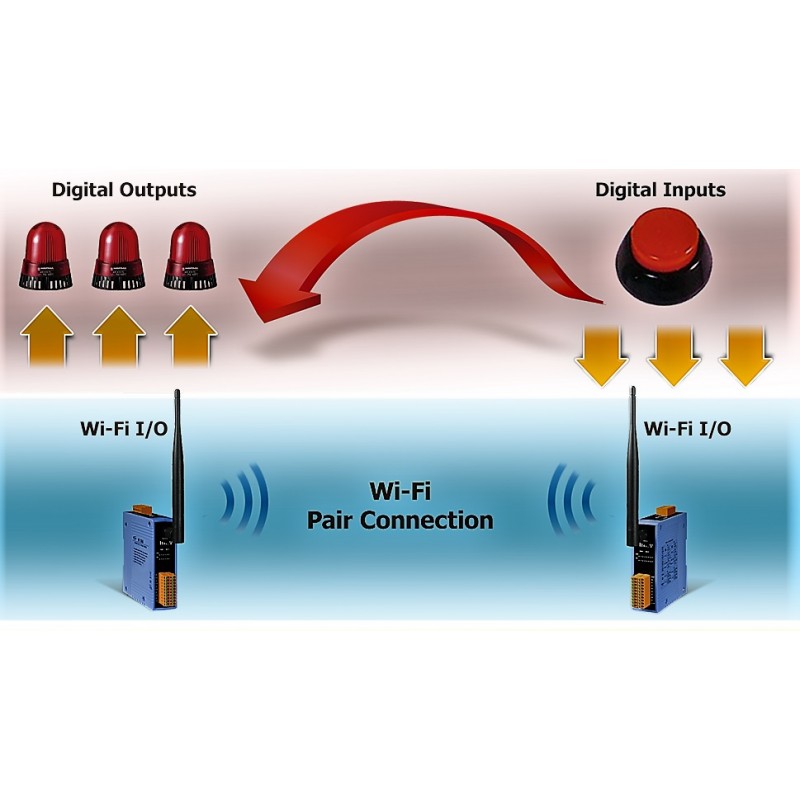

I/O Pair-link - the input is mirrored in the other's output
8 x Digital input (count): 0 - + 50VDC (500Hz)
8 x Digital Outputs: Open Collector 0 - + 40VDC / 650mA per output
Supply voltage: 10 - 30VDC / 3watt

ETHIO8I8O-IW
2,671.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

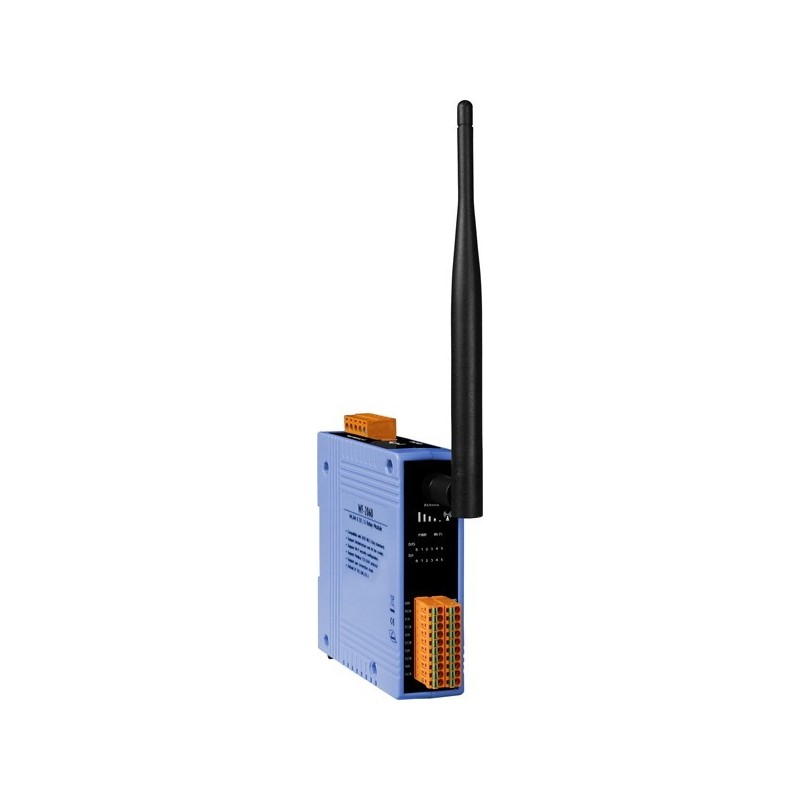

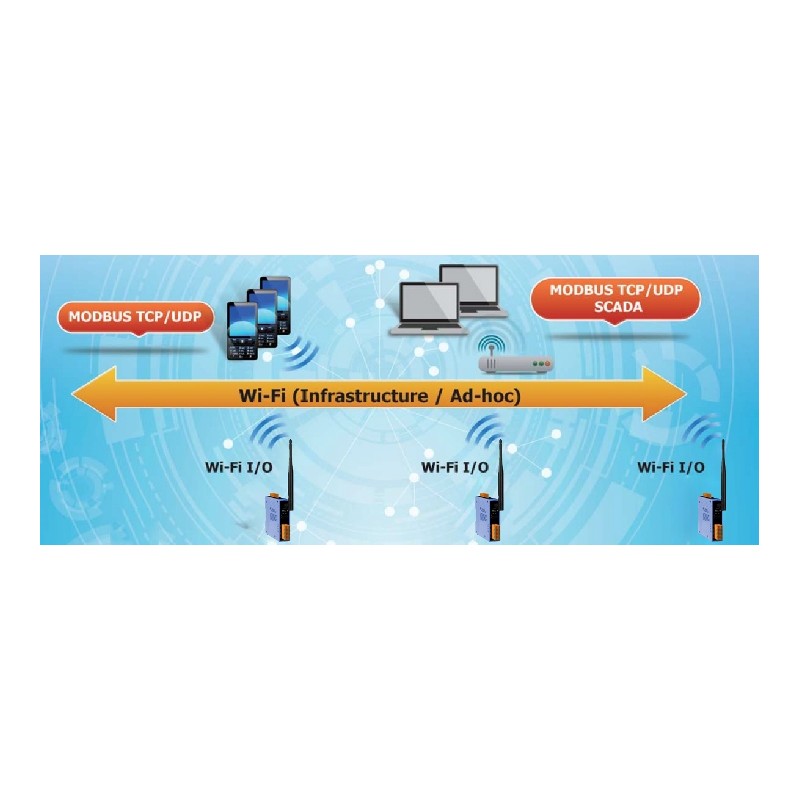

The ETHIO8IO-IW, is an 8-channel isolated digital input with 32-bit counters, 8-channel zinc-type isolated digital output module. ETHIO8IO-IW in WLAN connection complies with the IEEE802.11b / g standards. With the popularity of 802.11 network infrastructure, the ETHIO8IO-IW makes an easy way to incorporate wireless connectivity into monitoring and control systems. The ETHIO8IO-IW also supports Modbus / TCP and UDP protocols and the network encryption configuration, which makes perfect integration to SCADA software and offers easy and safe access for users from anytime and anywhere.

Dimensioner
110 x 33 x 90 mm
Forsyning
10 - 30 VDC 1,9 W
Funktioner
Understøtter Ad-hoc og infrastructure Kryptering WEP, WPA og WPA2
Indgang
8 isolerede kanaler med fælles stel. Som kontaktindgang: Logisk 0: Svævende Logisk 1: Indgang lagt til stel Som signalindgang: Logisk 0: 0 – 4 V Logisk 1: 10 – 50 V
Porte
Konsolport RS232 kabel medfølger
Protokol
IEEE 802.11b/g
Stik
Skrueterminaler og RSMA stik
Tæller
Alle indgange kan også bruges som 32 bit tæller. Maks. tællefrekvens er 10kHz
Udgange
8 isolerede NPN open collector fælles stel Belastning: 3,5 - 50 VDC / 700 mA maks. pr. kanal
