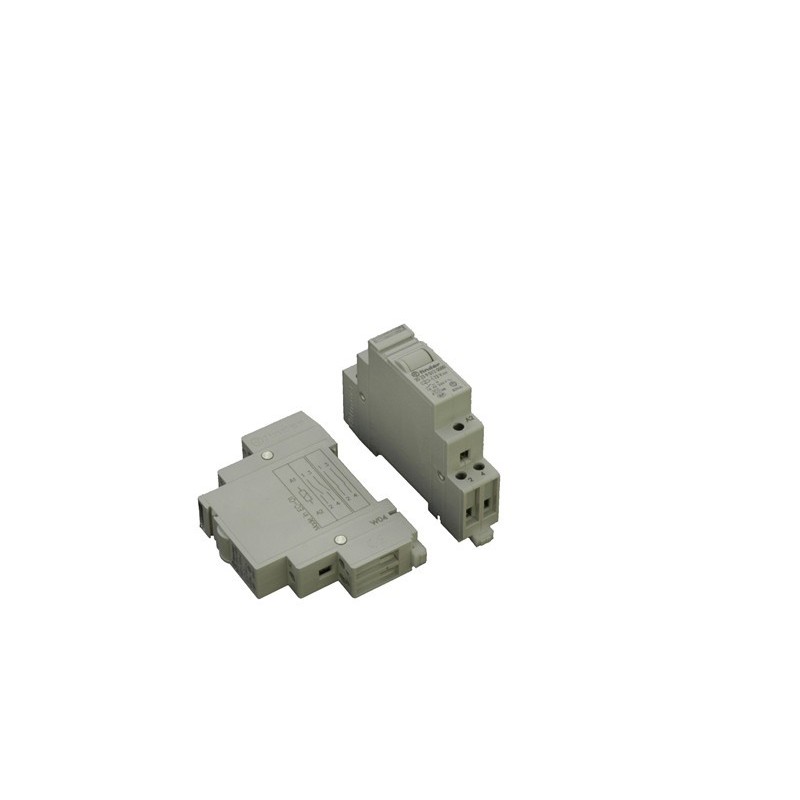

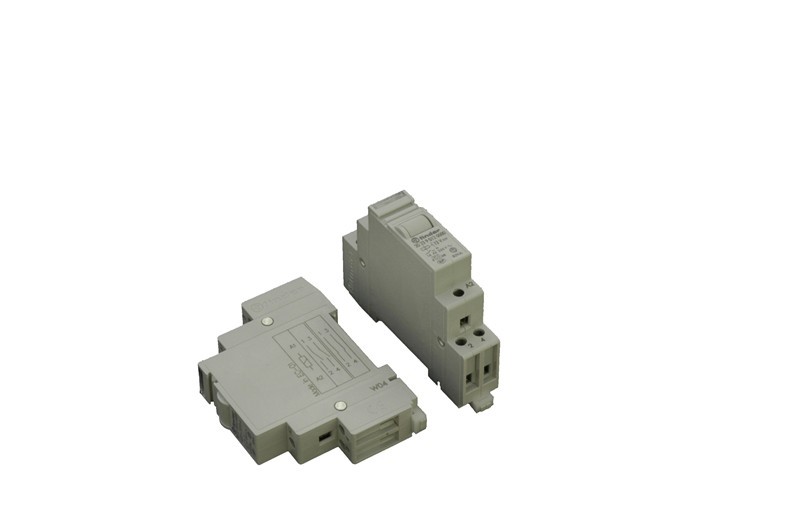

250 VAC klæberelæ til DIN skinne
Bruges når relæudgangen ikke er kraftig nok på eksisterende udstyr
Relæ til DIN skinnemontage. Fås i specialversion som ”klæberelæ”, der bevarer stillingen selv om strømmen går.
Relæ til DIN skinne.
Trækkes af 12 VDC 444 mA.
Kontakt data 2 polet slutte 16 A, maks. 3520 watt.
Knap til manuel test eller omskiftning.
Visuel indikation af relæstilling.
Skrueterminaler til alle forbindelser.
17,5 mm bredt EN50022 kabinet, IP20-tæt.
12 connect relays (COM N, O.)
RS485 communications bus
Modbus / TCP I / O module with built-in Web server
Modbus / TCP and Modbus / UDP protocols
2 x RJ45 Ethernet switch to Daisy-Chain topology
Dual Watchdog
Operating temperature range: - 25 to + 75 ° C
I / O Pair connection - Ingang refles in the second's exit
8 x Digital input: Wet (Apply Volt), Dry (Contact) - Digital Input: 0 - + 50CDC or Open / GND
8 x Digital Outout, Open Collector 0 - 40VDC / 650MA
Dimensions: 76 mm x 120 mm x 38 mm
Supply voltage: 12 - 48vdc, 4 watt
your bracket Wall mounting
Modbus TCP Slave Module LAN or Internet
6 x Relay, End Contact 250VAC / 5A, 30VDC / 5A
Avoid inductive load
6 x Digital input. High is 10 - 50V
supply via PoE or 12 - 48VDC
is with I / O Pair Connection - Input is mirrored to exit.
with important "Sale Setting" which sets relays as desired
watchdog which sets relays in "Safe Setting" in error detection
Dim: 123 x 72 x 35 mm
built-in your bracket
I / O box with RS485 port for PC
8 digital input channels and 3 relay output channels
Form A Power relay output
Sink & nbsp; and source type for digital input
Digital input channels can be used as 16-bit counters
Configurable Power-on value settings
Configurable Safe Value Settings
Dual Watchdog
Wide operating temperature range: -25 ~ + 75 ° C
