MQTT 16 x Digital input module. TCP and MQTT protocol, 2 x LAN ports Daisy chain. Dry contact input. 12 - 48VDC

Built-in web server
Web HMI
Supports Modbus TCP and MQTT protocols

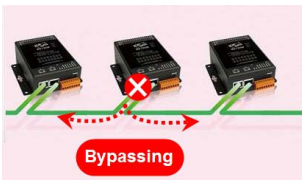

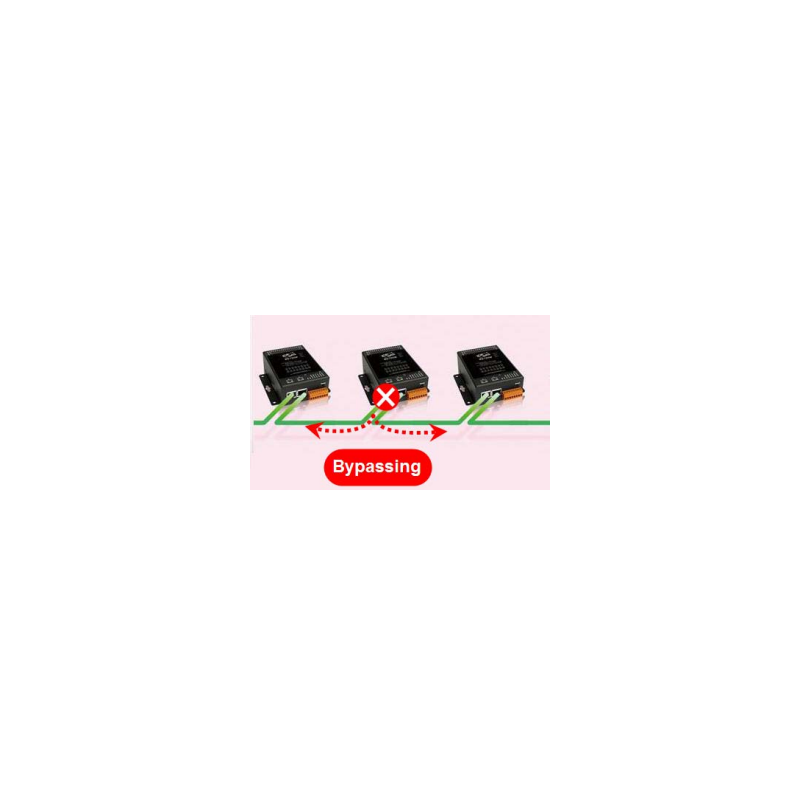

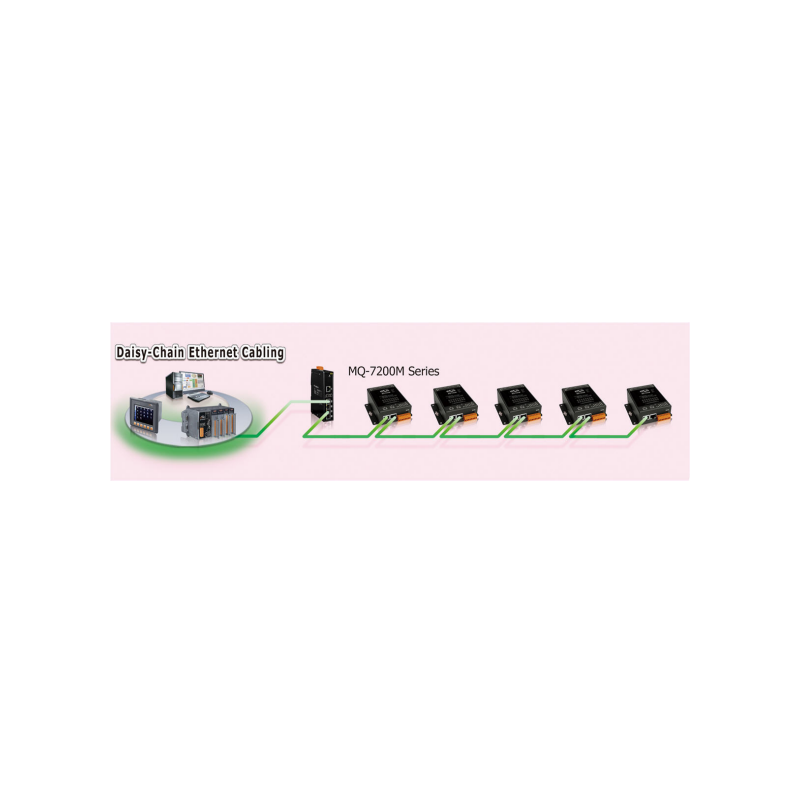

2-port Ethernet switch (LAN Bypass) for Daisy-Chain Wiring
Double watchdog
Digital input: 16 channels
Dry contact input
Input to Gnd = High (ON)
Input open = Low (OFF)
Supply voltage: 12 - 48VDC
Temperature: -25 - +75°C
Dimensions: 120 x 97 x 42

MQ-I16D-2L
2,443.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

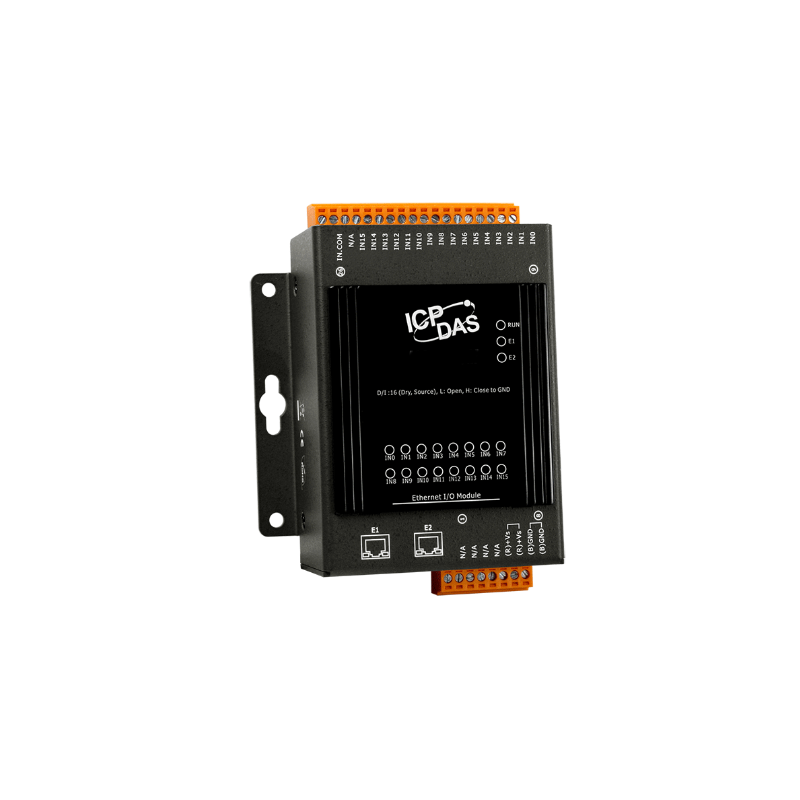

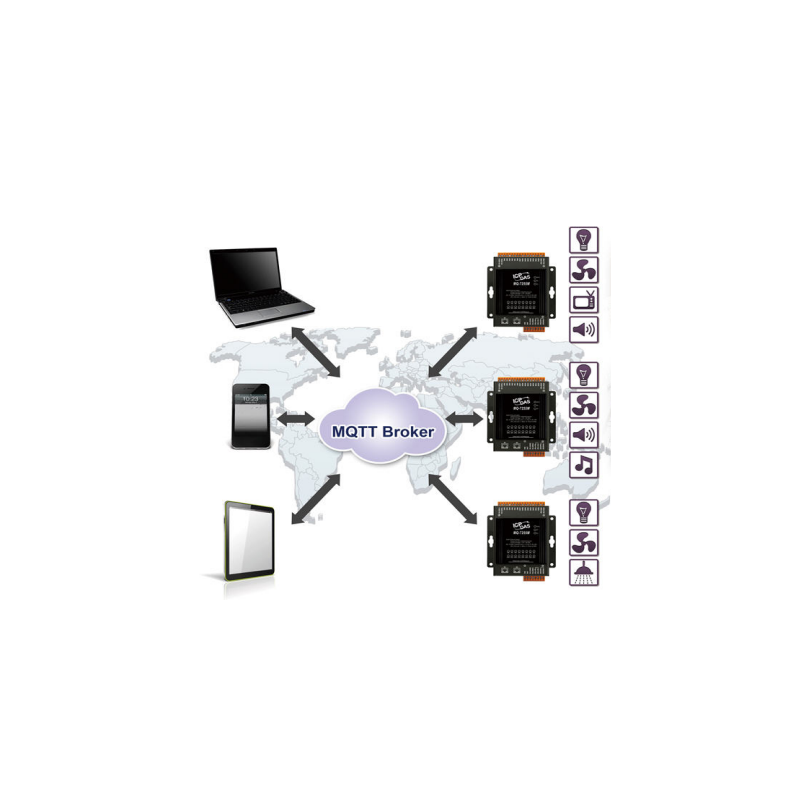

The MQ-I16D-2L is an Ethernet I/O device equipped with 16-channel DI as well as the MQTT and Modbus TCP protocols, which are supported to connect with a variety of digital sensors in Industrial Internet of Things (IIoT) applications. A friendly web-based user interface is provided to allow users to configure the module and access network connection status and I/O status via a normal web browser on a mobile device or computer.

The MQ-I16D-2L has optical isolation for 2500 VDC transient overvoltage protection, but does not provide channel-to-channel isolation. It can be safely used in applications where hazardous voltages are present.

Application:
Building automation, Factory automation, Machine automation, Remote maintenance, Remote diagnosis, Test equipment.
