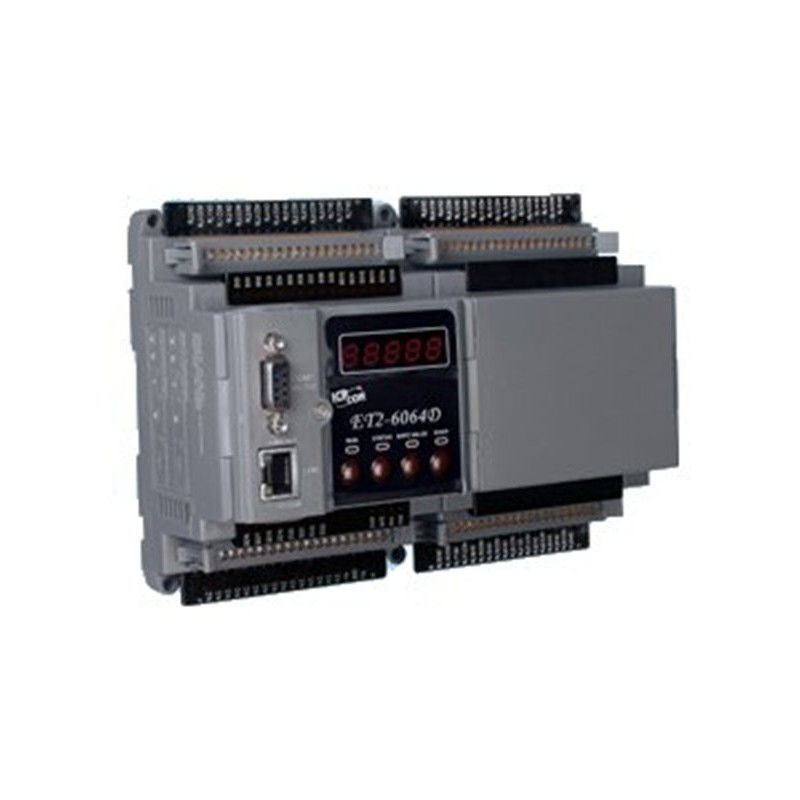

Ethernet-based relay module with Modbus
with I/O Pair Function
Digital signals are mirrored on another module outputs
Power Relay, 250vac, 30vdc, 5A
DINr
Supply voltage: 10 - 30vdc, 3 watts
Dim: 180 x 111 x 70 mm
Operating temperature: -25 - +75°C
These I / O units use the Modbus / TCP protocol for reading and control with digital signals.
A digital signal on a module input can be mirrored on an exit of Another module connected to the network. Multiple modules can retrieve the status of the same inputs on a single module, so it is possible to get a signal transferred to several different locations in e.g. A building.
With the built-in web server, the simple control and monitoring sites can be made without knowledge of HTML or Java programming. Different phases of the program are displayed. Since ETH-MODXX supports MODBUS / TCP, they can also be used with software automation systems based on this protocol.
2 stk. analog indgange samt 1 analog og 2 digital indgange
16 digital inputs with isolation
Inputs with common frame GND)
DRY input is High at 0VDC on the input.
Built-in 2 port Ethernet switch.
Several devices sit on the same network cable - daisy chain
I/O Pair connection - input is mirrored in the other's output
Network module with digital I / O Korenix JETI / O 6550
Channels: 14/8
Digital inputs: 14 pcs., Logic 0: 0 - 4 V, Logic 1: 5 - 30V
Digital outputs: & nbsp; 8 pcs. Open collector, 5 - 40 V 250mA
Isolation: Optical 2500 VRMS for analog and digital inputs and outputs for the power supply
Magnetic 1500 V from the network interface for the power supply
10/100 Mbit m / RJ45 their connector
Operating temperature: - 25 ° C - 70 ° C
Supports Modbus / TCP, OPC server, SNMP. Software included for configuration
For DIN rail mounting
Supply: 10 - 30 VDC via terminal block, Max 1.92 W
16 digitale indgange med isolation, fælles stel. med PoE
