Cabinet for HMI4.3 "ETH-IC. Wall-mounted backing to 4.3" HMI panel.
Kabinet til montering inde i væggen

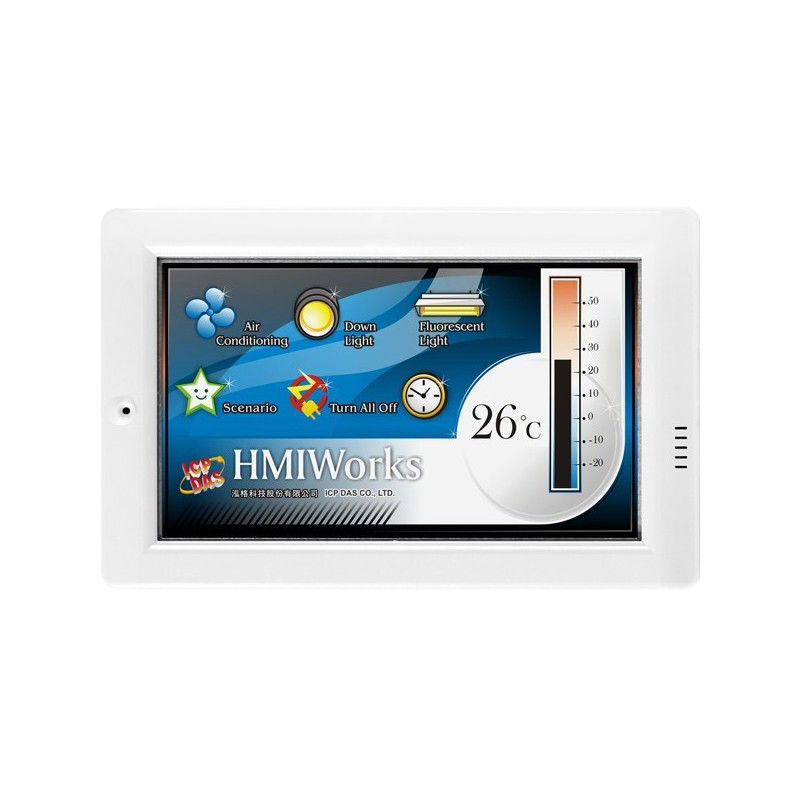

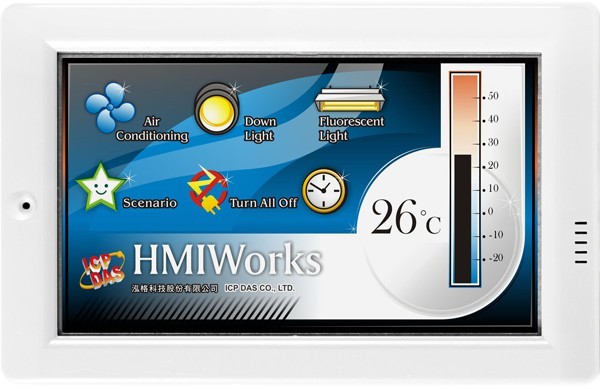

HMI Panel with LCD Display, Ethernet and Com Ports
Can be connected to most of the manufacturer's I / O modules
Power supplied from PoE or 12 - 48VDC / 2.5 Watt
RS-485 (with self-tunes) < Br> RS-232 (RX / TX / GND)
RTC - Real-time tour
GUI design
Free HmiWorks development tools
supports C and Ladder designer
design suggestions from manufacturer
Modbus TCP / RTU protocol
Dim: 140 x 87 x 41 mm
A stand-alone dedicated Controls PC with built-in TFT screen and touch
software package for design of own graphic layout included. Supports standard C and "Ladder" charts. Has built-in network port with POE and can control Ethernet modules based on the Modbus protocol eg. Ethioxxx-i. Can via the RS485 port control M485-XXX-in modules or RS485 modules based on the Modbus RTU protocol. HMI (Human Machine Interface)
Kabinet til montering inde i væggen
2.8" Touch HMI device with Ethernet and PoE
High Resolution color touchscreen
RTC (Real Time Clock)
GUI design
Modbus TCP/RTU protocol
ESD protection: 4 kV
Operating temperature: -20 ° C ~ 70
Modbus / TCP I / O module with built-in Web server
Modbus / TCP and Modbus / UDP protocols
2 x RJ45 Ethernet switch to Daisy-Chain topology
Dual Watchdog
Operating temperature range: - 25 to + 75 ° C
I / O Pair connection - Ingang refles in the second's exit
8 x Digital input: Wet (Apply Volt), Dry (Contact) - Digital Input: 0 - + 50CDC or Open / GND
8 x Digital Outout, Open Collector 0 - 40VDC / 650MA
Dimensions: 76 mm x 120 mm x 38 mm
Supply voltage: 12 - 48vdc, 4 watt
your bracket Wall mounting
Pt100 sensor 2 m Cable
100 mm Steel Tips
3.2 mm Diameter
Module to Can 2.0a and B
ISO 11898-2 standard
Baudrate 10Kbps for 1M bps
software for setting CAN and RS232 / 422/485
Transparency between RS-232 / 485/422 Via CAN bus
Full duplex on RS-232/422 units are not supported
CAN Bus Baud Rate Configuration
CAN Accept Filter Configuration
CAN 2.0A or 2.0B Specific Choice
RS-232 / 485/422 Baud rate and data file setting
RS-232/485/422 Respond Options
Setting: Normal or pair connection
