Waterproof electronic door magnet, 12VDC. Stainless steel house. Holding force up to 136 kg
Waterproof electronic door magnet, 12VDC. Stainless steel house. Holding force up to 136 kg

Waterproof electronic door magnet, 12VDC. Stainless steel house. Holding force up to 136 kg

The door magnet with holding force up to 136 kg
stainless steel housing full sealed with epoxy
Voltage for holding: 12VDC 6 Watt
No holding force at voltageless
Operating temperature: -10 to +55°C

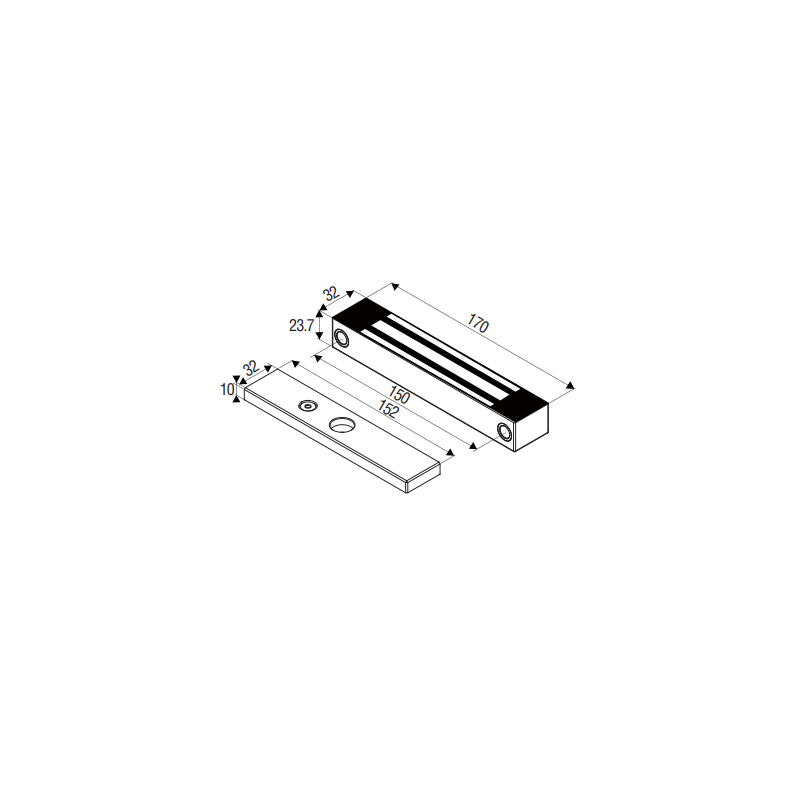

Magnet: 170 x 32 x 24 mm
Amaturple plate: 152 x 32 x 10 mm
Anti magnetic function
Weight: Approx. 2.5 kg

1,231.00 kr
Excl. VAT
Quantity
Physically in stock
ADD TO CART
Product number DOOR-MAGNET-170U
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Door-magnet-170U is 100% waterproof in stainless steel execution to the compromious harsh environment. Door-magnet-170U can be used with all access control controls that have relay output. The product contains a powerful electro magnet that "locks" itself fixed to the piece of metal that is mounted on the door. When there is voltage on Door-Magnet-170U, the door cannot be opened. An access control connected to Door-Magnet-170U accepts eg. A password will interrupt the voltage of the magnetic coil and the magnet drops so that the door can be opened. Holding power: 136 kg. 24VDC voltage to the holding magnet.

Access control with chip - Electric code lock - Door locks - RFID - code keying
Outdoor keyboard with RFID/chip reader. Stand-alone access control. 12 - 24VDC

Stand-alone access control in IP68 sealed housing

ADGANG20-RFID is a stand-alone access control that can control an electronic door lock.
Identification: Via keyboard or RFID EM card/chip.
User capacity: Max. 2000 users.
Identification time: < 20 ms.
RFID Reader: EM type for 125 kHz.
Checking the door lock:
Relay output with make and break function 12VDC or 24VDC / 6Watt
Housing: IP68 sealed stainless metal housing

Technically demanding product - Support hours can be purchased additionally

755.00 kr
Item Number: ADGANG20-RFID
Physically in stock
ADD TO CART
Quick view
Reguleret 100-240 VAC til 12 VDC strømforsyningforPower Supply
12VDC 5 Amp (60Watt) power supply, 100-240 VAC, plug: 5.5 / 2.5mm, C14 plug

Power supply 100 - 240VAC to 12 VDC / 5A, switch mode. 2.5mm / 5.5mm Jack
Power cord included.

355.00 kr
Item Number: DC12V/5A-R-Q
On the way in
ADD TO CART
Quick view
Info kommer snarestforAdgangskontrol
Stand-alone access control in IP68 close cabinet

 stand-alone adgangskontroller Mifare

1,192.00 kr
Item Number: ADGANG20-RFID-M
Physically in stock
ADD TO CART
Quick view
Bluetooth relay door control, Door lock with bluetooth - Access control via mobile phone Android APP
Access control for controlling the electronic door lock via the mobile phone Android APP, Bluetooth

Bluetooth
Up to 196 users
APP for Android - e-access E1196
Range up to 50 meters
Can be set to open by pressing in the APP
Can be set to open automatically when you are within range
Built-in buzzer 85dBA can be activated when the door is open.
When you choose to activate Bi-stable function, you can press down the E button on the screen for a few seconds to activate and keep the door unlocked indefinitely.
Does not save events (no log function)

990.00 kr
Item Number: ADGANG-BT
On the way in
ADD TO CART
Quick view
Previous
Next

Other products in same category:

Syge og ældre alarm til WA-BASE+
Syge og ældre alarm til WA-BASE+

Syge og ældre alarm til WA-BASE+

294.00 kr
Item Number: WA-MEDIC
Physically in stock
ADD TO CART
Quick view
Wireless PIR sensor - Outdoor motion sensor - Anti-theft alarm
Outdoor wireless PIR sensor - infrared motion sensor with antenna, battery operated, 35 m

Wireless infrared outdoor PIR motion sensor
External antenna
Adjustable range sensor 10-35m / 750 sqm
Battery operated 2 x AAA 1.5 volt
Operating temperature -20 to + 55 °
IP55 close to 150 meters line-of-sight
For wall mounting (fittings included)
The system does not work without reciever PIR-WL-R

1,704.00 kr
Item Number: PIR-WL35
On the way in
ADD TO CART
Quick view
Modtager til PIR-WL35 - styreenhed til eksternt udendørs trådløst P...
Modtager til PIR-WL35 - styreenhed til eksternt udendørs trådløst PIR system

Modtager/ styreenhed til trådløst PIR system
Håndterer 1-3 sensorer/ detektorer
Forsynes via 12V dc 35mA
Driftstemperatur -20 til +55°
IP65 tæt til udendørs brug
Frekvens 433 MHz - rækkevidde 150m
Til vægmontering
Virker ikke uden PIR sensor PIR-WL35

2,362.00 kr
Item Number: PIR-WL-R
On the way in
ADD TO CART
Quick view
MDB cable for Nayax VPOS Touch
Accessories: Basic MDB cable for VPOS Touch and Onyx

MDB Male and Female
DEX Male and Female

375.00 kr
Item Number: PAY-N-K-MDB-YDEX
On the way in
ADD TO CART
Quick view
Waterproof electronic door magnet. Holding force of 363 kg, 12 / 24VDC switching. Stainless steel
Waterproof electronic door magnet, 12 / 24VDC switching. Stainless steel, 100% sealed. Holding force up to 363 kg

The door magnet with holding force up to 363 kg
Rust free steel cabinet full sealed with epoxy and is vandal safe
Voltage for hold: 12VDC or 24VDC, 6 Watt
Switch between 12 and 24VDC
No holding force at no voltage
Operating temperature: -10 to + 55 ° C
Magnet: 216 x 53 x 32 mm
Amaturple plate: 185 x 45 x 14 mm
anti magnetic function
Weight: Approx. 4.5 kg

1,707.00 kr
Item Number: DOOR-MAGNET-V8
Physically in stock
ADD TO CART
Quick view
Electronic lock for cabinets and doors 12/24 DC/AC - Holding force of 100kg - DANBIT A/S
Electronic lock, for mounting on cupboards and doors, holding force approx. 100kg, 12-28VDC

Compact motorized lock with separate pawl
Locked without tension
Releases the locking pawl in case of short-term tension
The pal part has a push-out (5-8mm)
Adjustable delay on relocking 2 to 5 seconds
2 lock inputs
Can be mounted in 2 different ways
Control voltage - 12 - 28VDC / VAC, max. 165mA
Dimensions: 60 x 60 x 22mm

788.00 kr
Item Number: LOCK-CAB12-28V100
Physically in stock
ADD TO CART
Quick view
Waterproof electronic door magnet, holding force 545 kg, 12 / 24VDC automatic switching. Stainless steel
Waterproof electronic door magnet, holding force 545 kg, 12 / 24VDC / 6 Watt. Bond-sensor Stainless steel, 100% sealed

door magnet with clamping force up to 545kg
Rusrfri steel cabinet full sealed with epoxy and is vandal proof
Equipped with thread for flexible tube to protect the cable
Supply voltage for team: 12VDC or 24VDC, 6Watt
Cable change-over between 12 and 24 VDC
Only holding force when energized
With Bond Sensor (Lock indicator)
Operating temperature: -10 to + 55°C
Magnetic: 220 x 62 x 41 mm
Door-plate: 185 x 61 x 16 mm
Anti-magnetic feature
Weight: ca. 5 kg

1,483.00 kr
Item Number: DOOR-MAGNET-V12
Physically in stock
ADD TO CART
Quick view
Mounting bracket for DOOR-MAGNET-V8 for outward-facing door.
Mounting bracket for DOOR-MAGNET-V8 for outward-facing door. Extruded aluminium. L-bracket.

Mounting angle for DOOR-MAGNET-V8 for outward-facing door. The angle clamp is mounted on the lower edge of the door frame.
It is very important that the anchor plate is mounted floating suspended and that it can come into 100% contact with the holding magnet.

339.00 kr
Item Number: DOOR-BRACKET-L400
Physically in stock
ADD TO CART
Quick view
