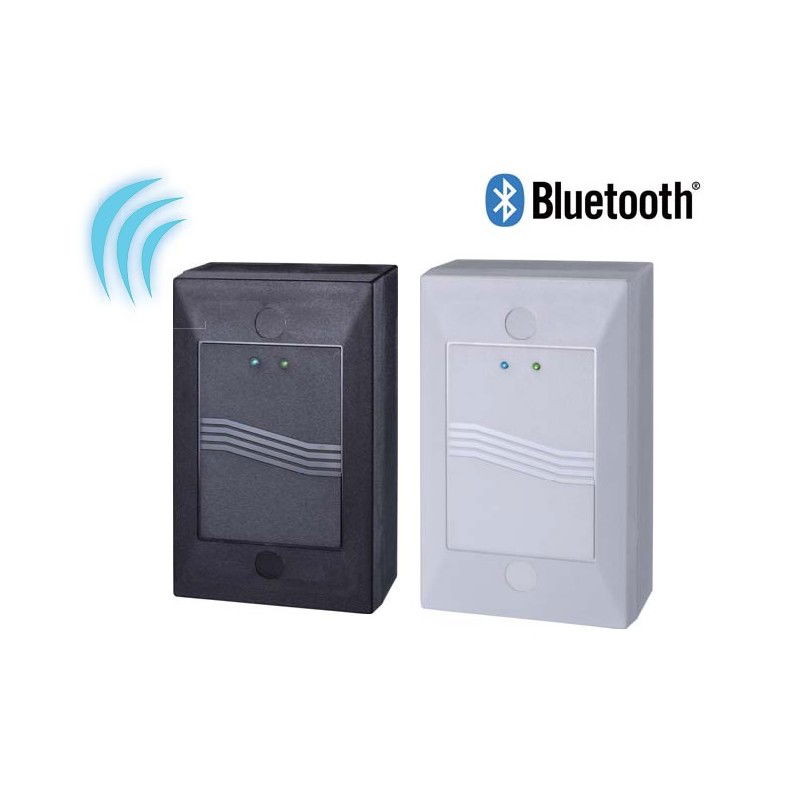

Bluetooth relay door control, Door lock with bluetooth - Access control via mobile phone Android APP
Bluetooth relay door control, Door lock with bluetooth - Access control via mobile phone Android APP

Access control for controlling the electronic door lock via the mobile phone Android APP, Bluetooth

Bluetooth
Up to 196 users
APP for Android - e-access E1196
Range up to 50 meters
Can be set to open by pressing in the APP
Can be set to open automatically when you are within range
Built-in buzzer 85dBA can be activated when the door is open.
When you choose to activate Bi-stable function, you can press down the E button on the screen for a few seconds to activate and keep the door unlocked indefinitely.
Does not save events (no log function)

990.00 kr
Excl. VAT
Quantity
On the way in
ADD TO CART
Product number ADGANG-BT
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Operating Temp. -10° to + 40 °C
Andet Indgang for dør udtryk samt dør føler
Forsyning 12 til 24 volt DC maks. forbrug 1 Watt
Relæ Slutte maks. 30 VDC, 5A
Rækkevidde max. 50 meter
Dimensioner 69 x 114 x 30 mm (B x H x D)

ACCESS-BT
Is based on the communication between Bluetooth reader and access software downloaded APP android. No APP for iOS.
After the reader is turned on and connected to the electric lock, the system is set up with the APP, and users' passwords are entered into the relevant part of the software by installing the APP on their phones.
Then the user has to keep the Bluetooth function of their smartphones on and press the button in the app when they want to open the door.
Or they can use the automatic setting to open the door when they approach.
Since the device works via Bluetooth, it can be placed behind the wall. It doesn't have to be in a visible place.
When you choose to activate Bi-stable function, you can press down the E button on the screen for a few seconds to activate and keep the door unlocked indefinitely.


User creation takes place in the APP, where the first to register in ADGANG-BT becomes the administrator of the system
Users are created in the system with a username and password, so a new user of the system must download the APP and enter the username and password

Power supply AC adapter from 100 - 240VAC to 12VDC 1,25AMP.
12VDC 1.25 Amp (15Watt) power supply from 100 - 240VAC, C-14 power outlet, with 1.5m cable without DC plug

Switch Mode Type
Power Supply 100-240 VAC for 12VDC / 1,25A
Desktop Type
1.5 meter wire without plug

180.00 kr
Item Number: DC12V1.25A-R
Physically in stock
ADD TO CART
