12VDC 1.5Amp (18Watt) power adapter from 110 - 240VAC, plug 5.5 / 2.1mm
Mains adapter - switch mode type
110-240 VAC to 12VDC/1.5A
DC plug: 5.5/2.1 mm
1 meter cable

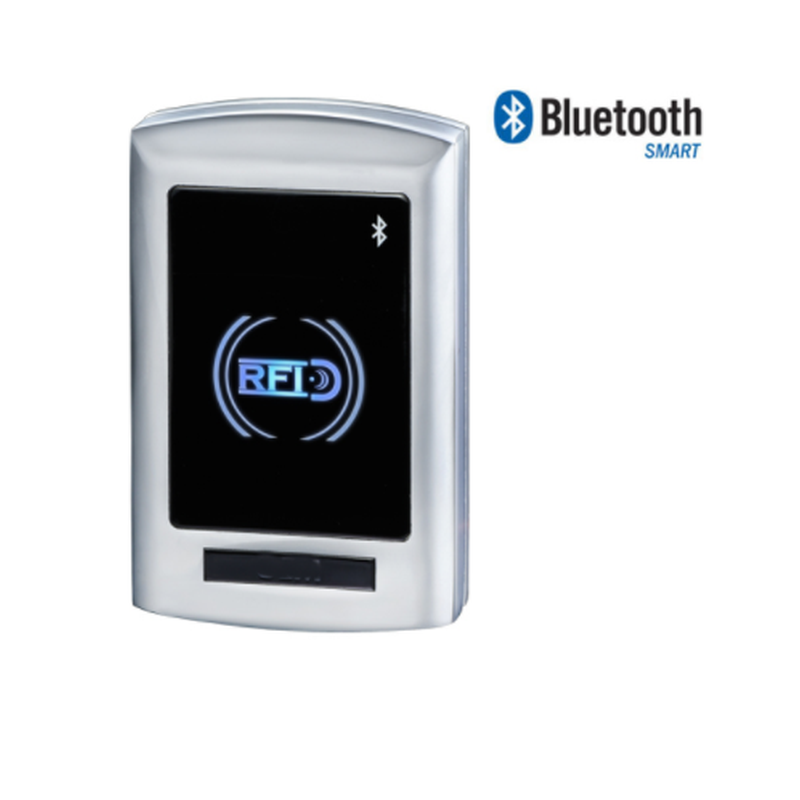

Bluetooth BLE 4.2 (low energy)
Up to 200 users
With user rights
Up to 1000 event logs in memory
Access with RFID chip (EM, 125kHz)
With LED indicator
APP for iPhone and Android
APP is Easiprox
Range adjustable from 0 to 20 meters
Can be set to open by pressing in the APP or automatically when you are within range
With solid state relay - no wear and tear
Adjustable re-lock time 1 - 1800 seconds
3 lock mode: Re-lock, always open, always locked.
Vandal alarm
Supply voltage: 12VDC
Dimensions: 120 x 76 x 21 mm
Can be set to open at the touch of APP or automatically when you are within range
When you choose to enable Bi-stable function, you can press down the E button on the screen for a few seconds to activate and keeps the door unlocked indefinitely.
aCCESS-BT-RFID is based on communication between one bluetooth reader and access software downloaded APP android and IOS.
When the reader is on and the connection is made to the electric lock, set the system with APP, and user passwords entered in the relevant part of the software, install the APP on their phones.
Then the user must hold the Bluetooth function on their smartphones on and press the button in the app when they will open the door.
Or they can use the automatic setting to open the door when they approach.
Since the device works via Bluetooth, it can be placed behind the wall. It need not be in a visible place.
When you choose to enable Bi-stable function, you can press down the E button on the screen for a few seconds to activate and keeps the door unlocked indefinitely.
Users can also open the door with RFID TAG, issued to the individual user.
Creating perish in aPP, where the first who register in aCCESS-BT-RFID becomes administrator of the system
Users created in the system with a username and password, then a new user of the system must download APP and enter your user name and password
Mains adapter - switch mode type
110-240 VAC to 12VDC/1.5A
DC plug: 5.5/2.1 mm
1 meter cable
AC / DC power supply for DIN rail mounting
100-240V AC, 50 / 60Hz, 1.1A
Output, 24V, 1.7A (40 Watt)
Screw terminal
Adjustable output voltage
Short-circuit, overload and surge protection
Compact dimensions: 40 x 100 x 90 mm
Working temperature: -20-70 ° C
Waterproof and sunscreens
black | Material: ABS plastic
Dimensions: 15cm x 10.4cm x 9cm
Simple to install and good quality
RFID reader 125kHz and 13.56MHz
IP65
Operating temperature: -20 ° C ~ 60 ° C
1.77’’ Color LCD
Bluetooth / USB
Lock+, Lock-, Monitor
Technical demanding product - Support hours can be purchased
8" smart access control system, face and ID QR, RFID
Measures body temperature
Interface: LAN, Wiegand, USB2.0
Relay output for electric lock on door/gate
Offline dynamic portrait mode
Face database: 50,000+
Recognition distance: 0.5 - 3 meters
Dual-eye recognition mode
Speed: better than 0.3 second
99.9% accuracy
Thermal IR meter: 32 - 45°C with alarm
Supply voltage: 12VDC /2.5A
Dimensions: 248 x 138 x 30 mm
Weight: 1.5 kg
IP65 sealed
Free management software (English)
Bluetooth
Up to 196 users
APP for Android - e-access E1196
Range up to 50 meters
Can be set to open by pressing in the APP
Can be set to open automatically when you are within range
Built-in buzzer 85dBA can be activated when the door is open.
When you choose to activate Bi-stable function, you can press down the E button on the screen for a few seconds to activate and keep the door unlocked indefinitely.
Does not save events (no log function)
