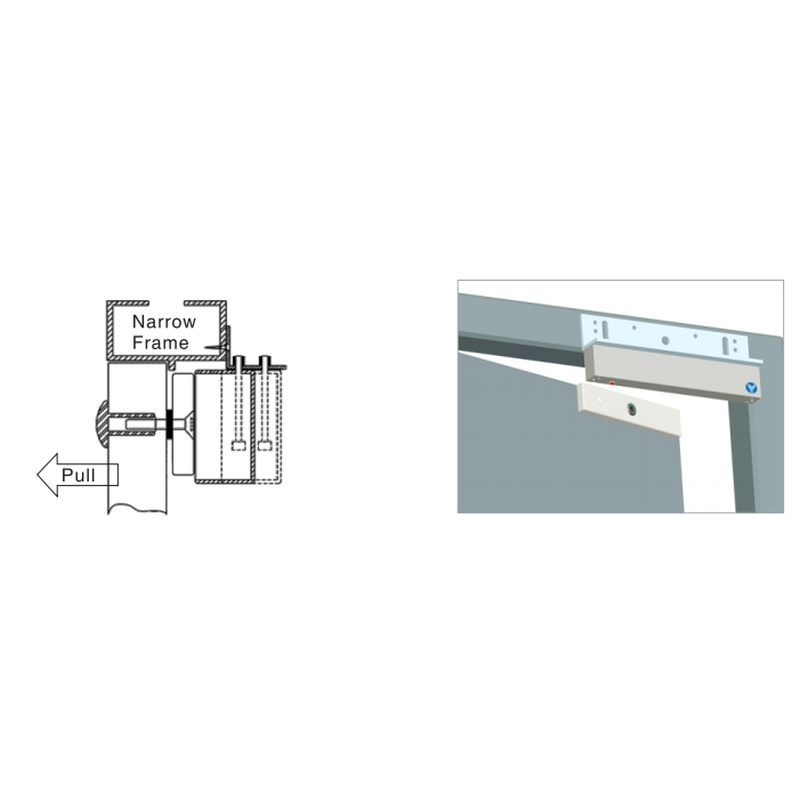

Bracket for the door magnet 500kg -Y50 types. Angle bracket for the magnet. Extruded alu.

Outdoor electromagnet for example. lattice door, gates etc.
door magnet with clamping force up to 272kg
Stainless steel and vandal proof
With waterproof gland for waterproof flex cable
IP67 close - designed for harsh outdoor environment
supply voltage by team: 12VDC or 24VDC 6Watt
Automatic switching between 12 and 24 VDC
No holding force when not energized
Magnetic: 218 x 44 x 27.5 mm
Door-plate: 185 x 38 x 12 mm
Operating temperature: - 10 to + 55°C
weight: 1.5kg

Mounting angle for DOOR-MAGNET-V8 for outward-facing door. The angle clamp is mounted on the lower edge of the door frame.
It is very important that the anchor plate is mounted floating suspended and that it can come into 100% contact with the holding magnet.

Door magnet with holding force up to 540kg
Aluminum House and vandal safe
Supply voltage for holding: 12VDC or 24VDC, 6Watt
Automatic switching between 12 and 24VDC
No holding power at voltageless
with LED indicator
Operating temperature: -10 to + 55 ° C
Magnet: 267 x 68 x 40 mm
Door plate: 185 x 61 x 16 mm
Mounting plate for frame: 267 x 40 x 8 mm
Anti magnetic function
Weight: 4.9kg

For 19mm mounting hole
12VDC
IP65
NO/COM/NC
​Momentary reset
Metal
