Electronic door magnet with clamping force up to 364KG, 12 / 24V DC,

Electronic door magnet 12 / 24V DC
363 KG holding force
Operating temperature: -10-55 degrees
Fungtighed: 0-96% non-condensing Blue Magnetic: (L) 265 (W) 29, (D) 49mm
A valve plate (L) 185 (W) 45, (D) 14mm
mounting plate (L) 265 (W) 29, (D) 6.5mm
Weight: 2.79 KG

1,469.00 kr
Excl. VAT
Quantity
Physically in stock
ADD TO CART
Product number DOOR-MAGNET-LOCK
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Operating Temp. -10~55°C (14~131°F)
Ampere 500mA/12VDC; 250mA/24VDC
Forsyning 12/24 V DC
Luftfugtighed 0~95% non-condensing
Weight 2.79 KG

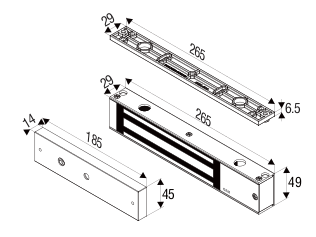

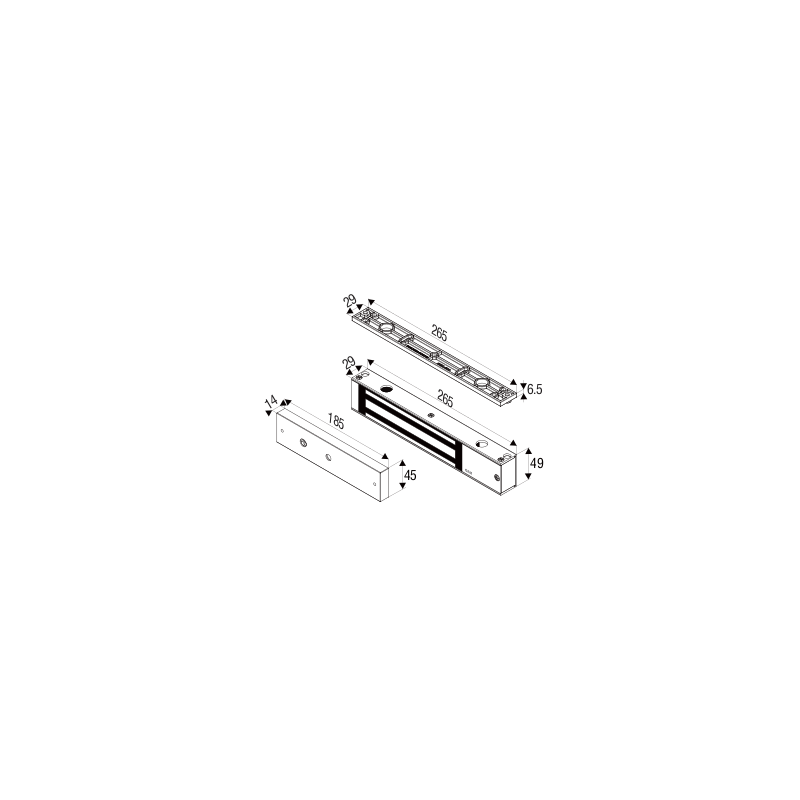

Dimensioner Magnet: (L) 265, (W) 29 , (D) 49mm Armature plate: (L) 185, (W) 45 , (D) 14mm Mounting plate: (L) 265, (W) 29 , (D) 6.5mm

DOOR-MAGNET-LOCK using a new mounting plate patented. The mounting plate is designed with increased thickness of the screw holes to give the lock more immobility and strength. DOOR LOCK magnet can be installed on various types of doors or dørkarmer with various fittings.

Access control with chip - Electric code lock - Door locks - RFID - code keying
Outdoor keyboard with RFID/chip reader. Stand-alone access control. 12 - 24VDC

Stand-alone access control in IP68 sealed housing

ADGANG20-RFID is a stand-alone access control that can control an electronic door lock.
Identification: Via keyboard or RFID EM card/chip.
User capacity: Max. 2000 users.
Identification time: < 20 ms.
RFID Reader: EM type for 125 kHz.
Checking the door lock:
Relay output with make and break function 12VDC or 24VDC / 6Watt
Housing: IP68 sealed stainless metal housing

Technically demanding product - Support hours can be purchased additionally

755.00 kr
Item Number: ADGANG20-RFID
Physically in stock
ADD TO CART
Quick view
AC adapter from 100 - 240VAC to 12VDC 3 Amp
12VDC 3 Amp (36Watt) from the AC adapter 110 - 240VAC, Jack: 5.5 / 2.1mm

Switch mode type
110-240 VAC for & nbsp; 12VDC / 3A
DC connector: 5.5 / 2.1 mm

226.00 kr
Item Number: DC12V/3A-R-Q
Physically in stock
ADD TO CART
Quick view
Info kommer snarestforAdgangskontrol
Stand-alone access control in IP68 close cabinet

 stand-alone adgangskontroller Mifare

1,192.00 kr
Item Number: ADGANG20-RFID-M
Physically in stock
ADD TO CART
Quick view
Bluetooth relay door control, Door lock with bluetooth - Access control via mobile phone Android APP
Access control for controlling the electronic door lock via the mobile phone Android APP, Bluetooth

Bluetooth
Up to 196 users
APP for Android - e-access E1196
Range up to 50 meters
Can be set to open by pressing in the APP
Can be set to open automatically when you are within range
Built-in buzzer 85dBA can be activated when the door is open.
When you choose to activate Bi-stable function, you can press down the E button on the screen for a few seconds to activate and keep the door unlocked indefinitely.
Does not save events (no log function)

990.00 kr
Item Number: ADGANG-BT
On the way in
ADD TO CART
Quick view
Previous
Next

Other products in same category:

Electronic door magnet to create large and small cabinets, 36 kg holding force.
Electronic mini door magnet, 36 kg holding force, 12VDC. Suitable for cabinets, IP65

Miniature Electronic holding magnet for cabinets and closets
Supply Voltage 12 VDC, 140mA minimum
Holding force up to 36 KG
Operating temperature: -10 ~ 55C
IP65 close Stainless steel with epoxy filler
magnet dimensions: 70 x 38 x 26 mm
Counter-plate dimensions: 80 x 32 x 18.5 mm
Weight of 350 g

536.00 kr
Item Number: DOOR-MAGNET
Physically in stock
ADD TO CART
Quick view
Powerful electronic door magnet, 540 kg holding force, 12 / 24VDC for doors and gates.
Powerful electronic door magnet, 540 kg holding force, 12 / 24VDC auto-detect. Aluminum, IP65

door magnet with clamping force up to 545kg
Aluminum housing and vandal proof
Supply voltage for team: 12VDC or 24VDC, 0.5A / 0,25A
No holding power at any voltage
Operating temperature: -10 to + 55°C
Magnetic: 267 x 68 x 40 mm
Door-plate: 185 x 61 x 16 mm
Mounting plate for the frame: 267 x 40 x 8 mm
Anti-magnetic feature
Weight : 4,9kg

1,565.00 kr
Item Number: DOOR-MAGNET+
Physically in stock
ADD TO CART
Quick view
Waterproof electronic door magnet, 12VDC. Stainless steel house. Holding force up to 136 kg
Waterproof electronic door magnet, 12VDC. Stainless steel house. Holding force up to 136 kg

The door magnet with holding force up to 136 kg
stainless steel housing full sealed with epoxy
Voltage for holding: 12VDC 6 Watt
No holding force at voltageless
Operating temperature: -10 to +55°C
Magnet: 170 x 32 x 24 mm
Amaturple plate: 152 x 32 x 10 mm
Anti magnetic function
Weight: Approx. 2.5 kg

1,231.00 kr
Item Number: DOOR-MAGNET-170U
Physically in stock
ADD TO CART
Quick view
Waterproof electronic door magnet, holding force 545 kg, 12 / 24VDC automatic switching. Stainless steel
Waterproof electronic door magnet, holding force 545 kg, 12 / 24VDC / 6 Watt. Bond-sensor Stainless steel, 100% sealed

door magnet with clamping force up to 545kg
Rusrfri steel cabinet full sealed with epoxy and is vandal proof
Equipped with thread for flexible tube to protect the cable
Supply voltage for team: 12VDC or 24VDC, 6Watt
Cable change-over between 12 and 24 VDC
Only holding force when energized
With Bond Sensor (Lock indicator)
Operating temperature: -10 to + 55°C
Magnetic: 220 x 62 x 41 mm
Door-plate: 185 x 61 x 16 mm
Anti-magnetic feature
Weight: ca. 5 kg

1,483.00 kr
Item Number: DOOR-MAGNET-V12
Physically in stock
ADD TO CART
Quick view
Double electronic door magnet 2 x 272 kg for 12 / 24VDC with automatic switching for swing doors, swing doors
Double electronic door magnet with 12/24VDC switching, closed sensor. Indoor double doors. Holding power up to 2 x 272 kg

Electronic door magnet for double doors, swing doors etc.
Holding force up to 272 kg for each door
Aluminum housing and vandal-proof
Supply voltage for team: 12VDC or 24VDC, minimum 2 x 6Watt
Switching between 12 and 24VDC
No holding power when de-energized
With Bond sensor (door closed sensor)
Option: Door status sensor, Re-lock timer
Operating temperature: -10 - 55°C
Double magnet: 500 x 44 x 26 mm
Door panels: 185 x 38 x 12 mm
Double mounting plate: 500 x 26 x 5.5 mm
Weight: approx. 5 kg
Additional access system - see Accessories

2,519.00 kr
Item Number: DOOR-MAGNET-DUAL6
On the way in
ADD TO CART
Quick view
Waterproof electronic door magnet. Holding force of 363 kg, 12 / 24VDC switching. Stainless steel
Waterproof electronic door magnet, 12 / 24VDC switching. Stainless steel, 100% sealed. Holding force up to 363 kg

The door magnet with holding force up to 363 kg
Rust free steel cabinet full sealed with epoxy and is vandal safe
Voltage for hold: 12VDC or 24VDC, 6 Watt
Switch between 12 and 24VDC
No holding force at no voltage
Operating temperature: -10 to + 55 ° C
Magnet: 216 x 53 x 32 mm
Amaturple plate: 185 x 45 x 14 mm
anti magnetic function
Weight: Approx. 4.5 kg

1,707.00 kr
Item Number: DOOR-MAGNET-V8
Physically in stock
ADD TO CART
Quick view
Waterproof mini door magnet, holding power up to 272kg. 12 / 24VDC switching
Waterproof electric door magnet, prepared for 12 / 24VDC - see Label, IP65 for outdoor use. Holding force up to 272 kg.

Designed for narrow frames, gates, out-swing, in-swing and glass doors.
Weather resistant: IP65, designed for harsh outdoor environment.
Vandal-resistant stainless steel casing.
Low maintenance, High reliability.
No holding force at zero voltage.
Holding force: 600 lbs (272 Kg).
Suitable for harsh environment.
Anti-Residual Magnetism (ARM).
Armature Plate: 185, 38, 12 mm.
Magnet: 218, 44, 27.5 mm.
Dual voltage 12 or 24 VDC.
Weight: 1.5 Kg.

1,259.00 kr
Item Number: DOOR-MAGNET-MINI
Physically in stock
ADD TO CART
Quick view
Electronic door magnet for cabinets, large and small cabinets, 36 kg holding power. Built-in closed sensor
Electronic mini door magnet, 12vdc. For cabinets, IP65. Holding power up to 36kg. Bond sensor (closed indicator)

Miniature electronic holding magnet for cabinets
Supply voltage 12 VDC, minimum 140mA
Holding force: Up to 36 kg
with Bond sensor - Relay output COM, NC
Bond sensor is a closed indicator - Can inform the controller
Operating temperature: -10 ~ 55ºC
IP65 Stainless steel with epoxy filling
Magnet dimensions: 70 x 38 x 26 mm
Holding plate dimensions: 80 x 32 x 18.5 mm
Weight 350 g

855.00 kr
Item Number: DOOR-MAGNET-FR
Physically in stock
ADD TO CART
Quick view
