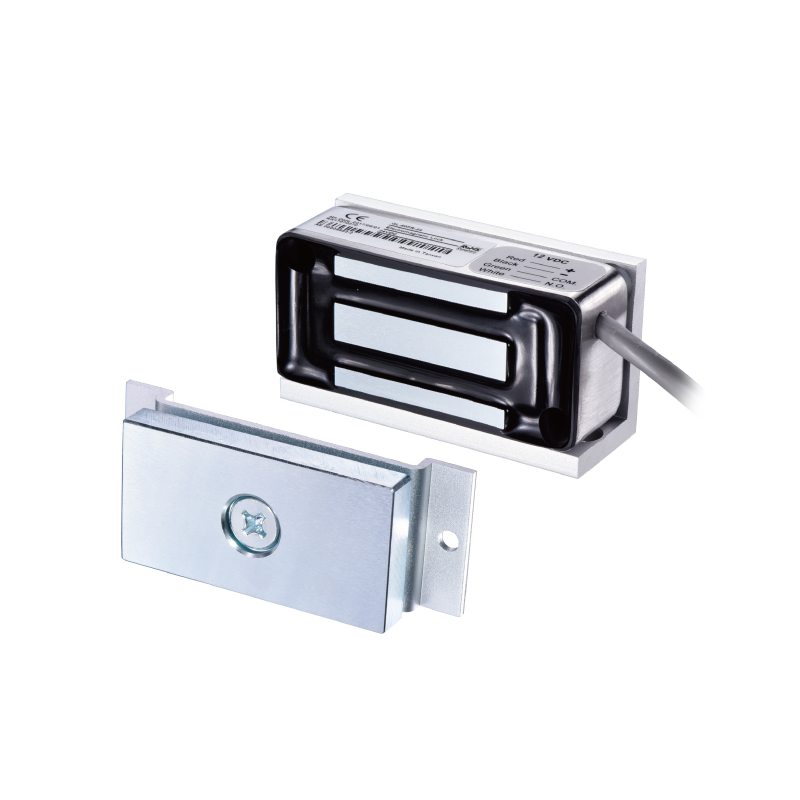

Electronic mini door magnet, 12vdc. For cabinets, IP65. Holding power up to 36kg. Bond sensor (closed indicator)

Miniature electronic holding magnet for cabinets
Supply voltage 12 VDC, minimum 140mA
Holding force: Up to 36 kg
with Bond sensor - Relay output COM, NC
Bond sensor is a closed indicator - Can inform the controller
Operating temperature: -10 ~ 55ºC
IP65 Stainless steel with epoxy filling
Magnet dimensions: 70 x 38 x 26 mm
Holding plate dimensions: 80 x 32 x 18.5 mm
Weight 350 g

855.00 kr
Excl. VAT
Quantity
Physically in stock
ADD TO CART
Product number DOOR-MAGNET-FR
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Operating Temp. -10 - +55°C
Forsyning 12VDC 150mA
Fuld belastning op til 36 kg
Weight 360 g
Dimensioner 70 x 26 x 38 mm

Door magnet is simple and simple mini electronic door magnet for small cabinets, rack cabinets or the like. It has a holding force of up to 36 kg and weighs 350 g. It is small and simple, and can be mounted most places. The holding magnet is active with voltage - 12VDC, 140MA (1.7Watt). Has built-in Bond sensor that activates built-in relay that the doormail is locked. This is recorded by the holding plate lies completely against the electromagnet. Therefore, it is important that the holding plate is mounted on the door / door as specified in the supplied instructions.

Cable 12VDC:
Red: Coil
Black: Coil
Bond sensor: Relay contact (normal open - NO)
Green: Bond sensing Relay
White: Bond sensing Relay
