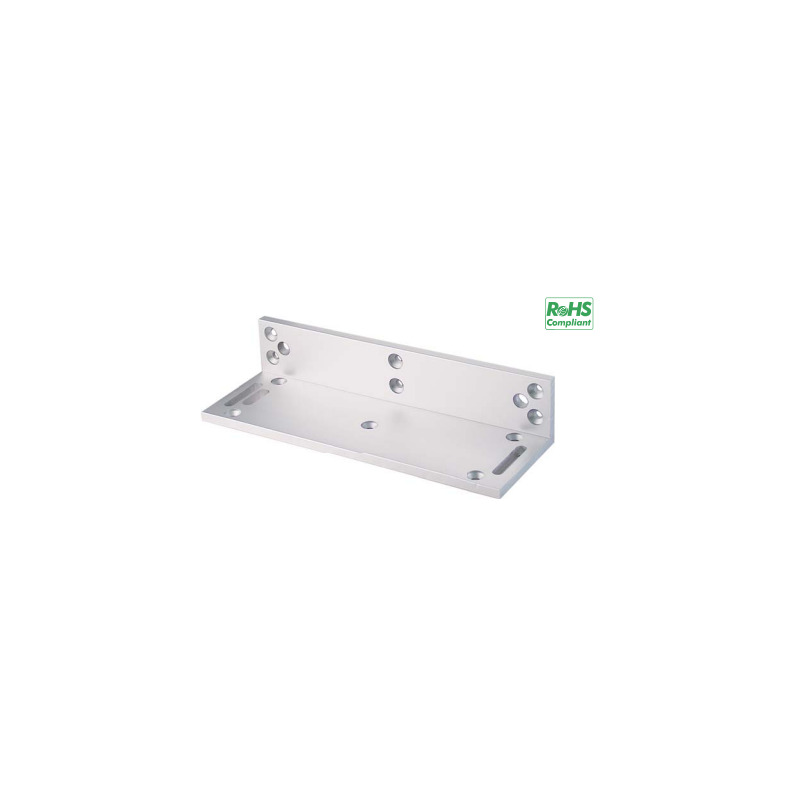

L-bracket for door magnet door-magnet-V12CB If to be mounted on outward door

Accessories for Door-Magnet-V12CB
L-angle bracket for outward door (outswing)
The kit consists of 1 part
heavy aluminum profile

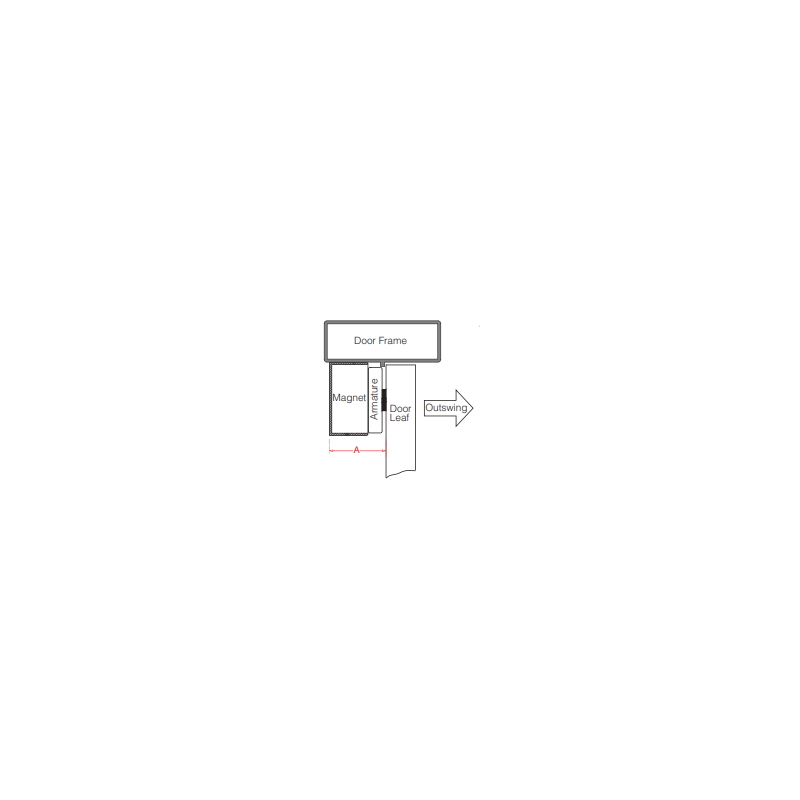

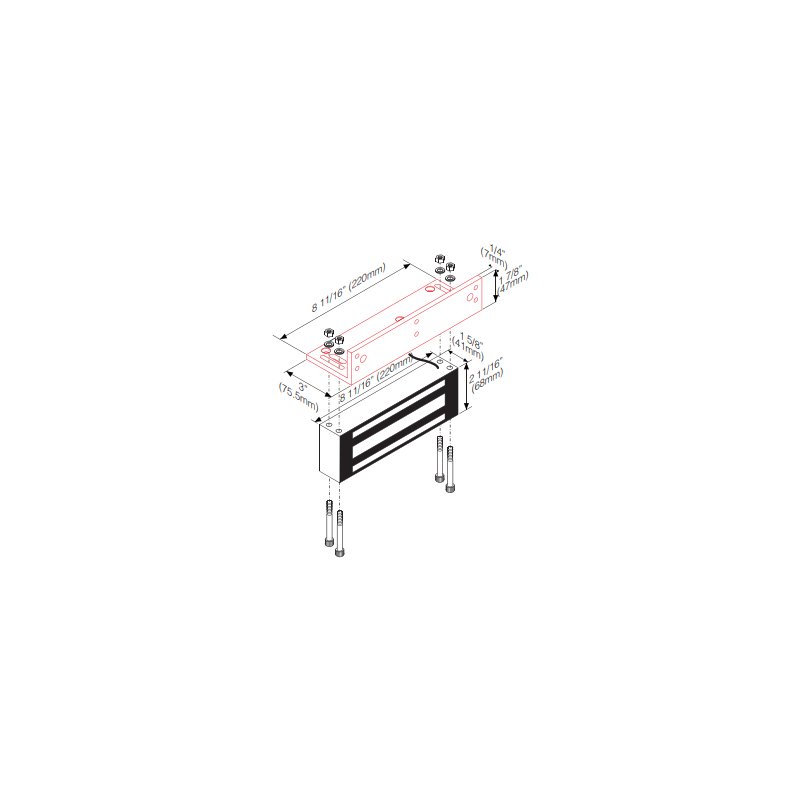

target: See drawing

279.00 kr
Excl. VAT
Quantity
Physically in stock
ADD TO CART
Product number DOOR-BRACKET-L1200S
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

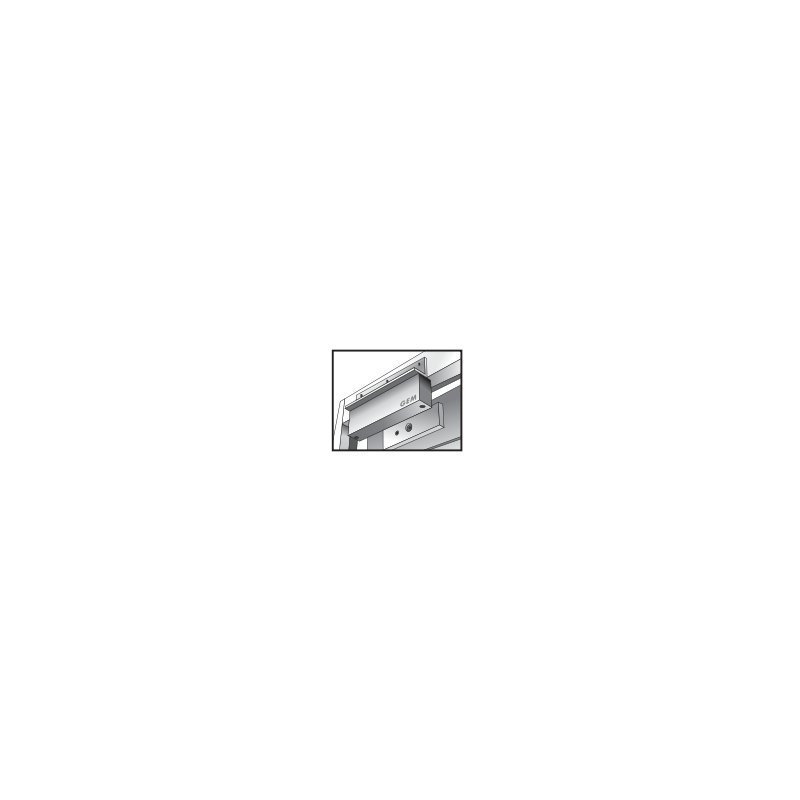

Mounting bracket for outward door, where the magnet must sit the underside of the frame.

Waterproof electronic door magnet, 545 kg holding force, 12 / 24VDC. Stainless steel
Waterproof electronic door magnet, 12/24VDC manual switching. Stainless steel housing. Holding power up to 545kg

Door magnet with holding power up to 545kg
Stainless steel cabinet fully sealed with epoxy
Supply voltage for team: 12/24VDC 6Watt
At 12V connect red to white, yellow to black
At 24V connect white to yellow. Red + Black -
No holding power when de-energized
Operating temperature: -10 to +55°C
Magnet: 220 x 68 x 42 mm
Amatur plate: 185 x 61 x 16 mm
Anti magnetic function
Weight: approx. 5 kg

1,583.00 kr
Item Number: DOOR-MAGNET-V12CB
Physically in stock
ADD TO CART
