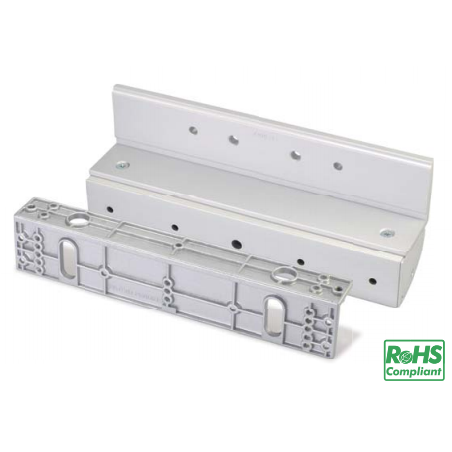

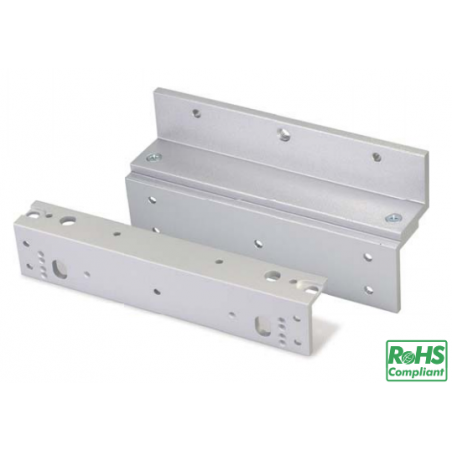

Mounting bracket for Door-Magnet-Yx28 types.
for inward doors.
2 parts of extruded aluminum
Screws included
target: 250 x 49 x 30 mm and 180 x 50 x 50 mm
anodized
487.00 kr
Electrical Door Locks / EXIT Keys
Menu
Electrical Door Locks / EXIT Keys
Electric access control means that the door or gate must be equipped with an electric lock.
There are extremely numerous types and sizes, designed for all type of doors. Type Electric strike is the part of the lock mounted in the door frame. It has an electronically controlled mechanical flap that allows the latch on the door lock housing can pass freely during the time the electronics controlling this.
Where it is not possible to use electric strike may the door and the frame is provided with an electric holding magnet, in turn controlled by the access electronics. When the door is locked must be running a current in the holding magnet coil. When the coil is strømlås, release hold the magnet holding force to the door. This type holding magnets are available in various sizes and holding power. Typically, the holding force 300 kg.
The locking bolt lock type is the most secure, and that can be mounted more on the same door. The lock bolt is provided with a magnetic sensor which only allows the pawl to lock with the door in the exact position. Motor Lock is also an option, but not so widespread. Dørautomatikker combined with electric strike is a good solution, especially taking into account the person in a wheelchair. In addition to our solid solutions are also smart lock. Among other things. we dørrelæer with facial recognition, RFID and fingerprint as after five failed attempts at penetration will lock in 3 minutes and send notification to your smartphone. Super efficient keyless door lock.
Should you not find the lock you need, please contact us for advice and guidance.
There are 95 products.

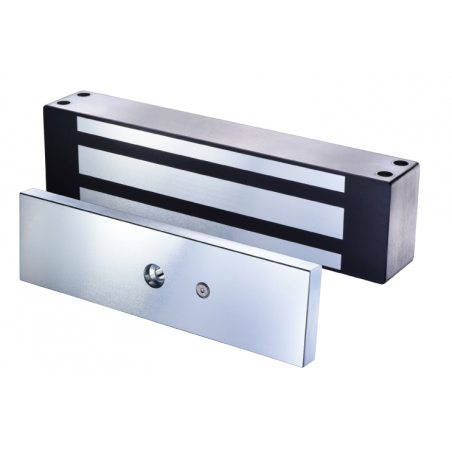

Holding power Up to 500 kg
Dim: 282 x 74.8 x 38.8 mm
Face plate: 185 x 60 x 13.2 mm
Voltage: 12VDC / 24VDC
Power consumption: 12V / 420MA / 24V / 210mA
Signal output NO / NC / COM Lock Status Relay output
LED Red Indicates that the door is unlocked, green indicates that the door is locked
Buzzer - Summer 5/10/20/30 SEK
Suitable For wooden door, glass door, metal door, fireproof door
Surface temp: + 20 ℃
Operating temperature -20 - + 55 ℃
Humidity 0 ~ 95% (non-condensing) Surfaces: House anodized aluminum
Surfaces Magnet: Zinc
Surface plate: zinc
Weight 4.5 kg
995.00 kr
Lock force Up to 350 kg
Dim: 260 x 58 x 30 mm
Face plate: 190 x 45 x 13 mm
Voltage: 12VDC / 24VDC
Power consumption: 12V / 500mA / 24V / 250MA
Signal Output NO / NC / COM Lock Status Relay Output
Timer (Delay): 3 / 6 / 9 seconds
Good for wooden door, glass door, metal door, fireproof door
Surface temp: +20℃
Operating temperature -20 - +55℃
humidity 0 ~ 95% (non-condensing)
Surfaces: House Anodized Aluminum
Surfaces Magnet: Zinc
Surfaces Face Plate: Zinc
Weight: 2.7 kg
775.00 kr

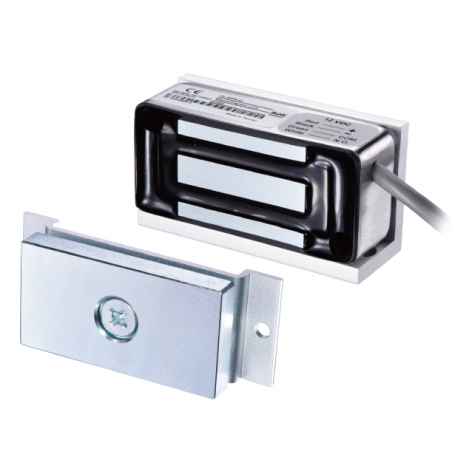

Cabinet lock - 150kg. Locked with voltage
Voltage: 12VDC / 180MA
Holding force: 150kg
Size: 50 x 31 x 27 mm
Weight: 0.18kg
748.00 kr
Cabinet lock - 150kg. Locked without voltage
trigger voltage: 12VDC / 180MA
Holding force: 150kg
Size: 50 x 31 x 27 mm
Weight: 0.18kg
748.00 kr
ABS plastic house for Exit button
target: 38.5 x 38.5 x 48 mm
Center hole: 20 mm
4 x mounting holes for attachment
rubber gasket included
180.00 kr
For 19mm mounting hole
12VDC
IP65
NO/COM/NC
Momentary reset
Metal
86.00 kr
The switch is for touch-free access.
Up to 15 cm activation distance (30 - 150mm)
Touchless EXIT switch with relay output
IR motion technology
Adjustable hold timer 1-60 seconds
Adjustable activation distance 3 - 15cm
With blue and green LED
Relay contacts for 12 - 28VDC, 2Amp
Robust ABS plastic front
Supply voltage: 12 - 24VDC
Dimensions: 86 x 86 x 10 mm
Optional aluminum back piece - see picture and Accessories
522.00 kr
Output contact for access control with cunduct / breaking function
robust plastic house with steel Back plate
Contact: NO / NC / COM
Momentary Contact press
Contact: Max 3A
Size: 86 x 86 x 42 mm
Passive Exit Button
296.00 kr
Robust aluminum housing for EXIT button
Dimensions: 38.5 x 38.5 x 38 mm
Center hole: 20 mm
4 x mounting holes for attachment
3 mm extruded alu
Polished surface
235.00 kr
Electric lock box for single / double acting swing doors
Smal frames - 25 mm Front plate
Brushed stainless steel
272 kg Pressure strength
Latch Status Output: 1A / 125VAC
Supply voltage: 12VDC 280MA / 24VDC 180MA
Operating voltage: 12 - 24VAC / DC
Operating cycle: 250,000 (factory tested)
Size: 24 x 160 mm House, 25 x 210 mm Front plate
Pole plate: 28 x 210 x 2 mm
1,900.00 kr

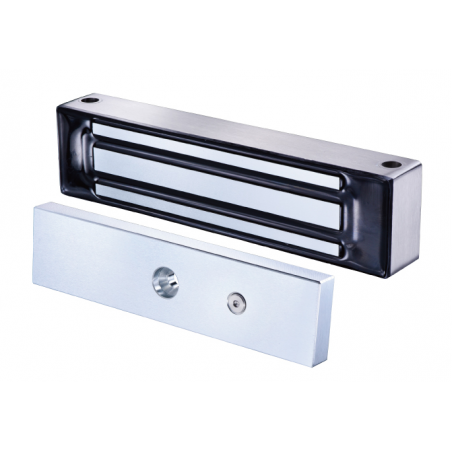

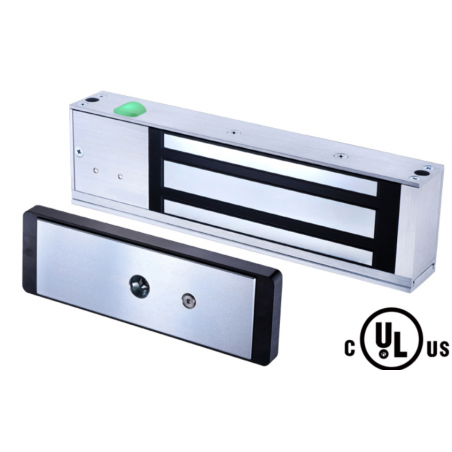

Electronic door magnet with team power up to 272kg
Gen-Close timer Adjustable from 1 - 80 sec.
Door Closed Sensor - Relay output
Aluminum with epoxy at coil
12VDC or 24VDC, 6Watt
Switching between 12 and 24VDC
No holding power at Voltageless
Magnet: 250 x 42 x 26 mm
Door plate: 185 x 38 x 12 mm
Mounting plate: 250 x 25 x 5 mm
Anti magnetic function
Operating temperature: -10 - + 55ºC
1,837.00 kr

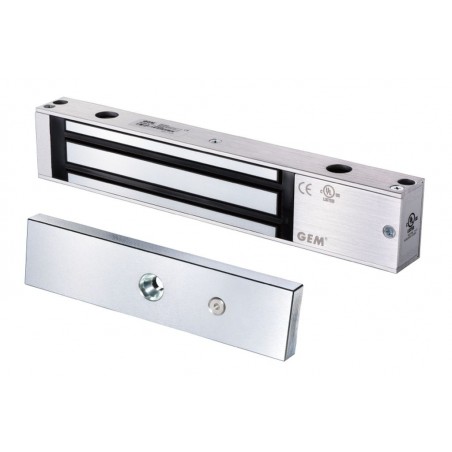

Electronic door magnet with team power up to 272kg
Gen-Close timer Adjustable from 1 - 80 sec.
Door Closed Sensor - Relay output
Aluminum with epoxy at coil
12VDC or 24VDC, 6Watt
Switching between 12 and 24VDC
No holding power at Voltageless
Magnet: 250 x 42 x 26 mm
Door plate: 185 x 38 x 12 mm
Mounting plate: 250 x 25 x 5 mm
Anti magnetic function
Operating temperature: -10 - +55ºC
1,494.00 kr
IR safety sensor for automatic doors prevent property damage and personal injury
Mounted above the frame or on the door
Relay output connected dørautomatikstyringen
Length: 360 mm | IR beam adjustment: 5-25 °
6 measuring points
detector distance: 0 to 2.5 meters
Max. installation height: 2.6 meters
Relay Output is continuously active when the thing or person is detected
Dimensions: 360 x 45 x 45 mm
Weight: 350g
Supply voltage: 12 - 24VDC or 12 - 24VAC
IP54
EU standard: EN16005
2,079.00 kr
Door machine with switch-box for swing-door
Supplied switch box for function selection
With connection for access control
With connection for NON-TOUCH access switches
Connection for emergency battery
Approved according to EN 61000 standards for safety
Supply voltage: 100 - 240VAC
Built-in motor: 60VDC, 2Amp
Power consumption: approx. 77 Watt
Connection for 24VDC backup battery
Dimensions: 125 x 79 x 34 mm
Door opening angle 80 - 120 °
Door width: 750 - 1200 mm
Door height: 2800 mm
Door weight: 50 - 150 kg
230VAC
8,900.00 kr
The switch is for touch-free access.
Up to 10 cm activation distance (10 - 100mm)
Touchless EXIT switch with relay output
Relay timer: 0.5 second
IR motion technology
Adjustable activation distance
With blue and green LED
Relay contacts for 12 - 28VDC, 3Amp
Stainless steel front plate
Supply voltage: 12VDC
Dimensions: 86 x 86 mm
390.00 kr
All Weather Exit contact
cast aluminum housing with sturdy green button
contact DPDT (NO / NC / COM)
Monentary contact 250VAC / 3A and 125VAC / 6A
Can withstand heavy weather and extreme environments.
Ideal for doors and gates
Dimensions: W 90 x H 85 x D 58 mm
906.00 kr

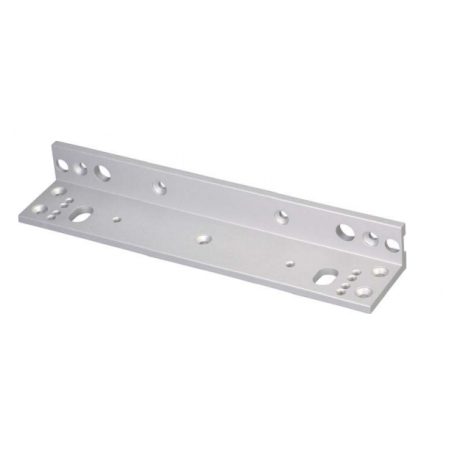

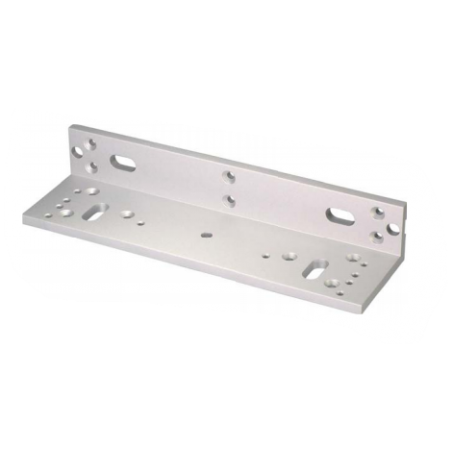

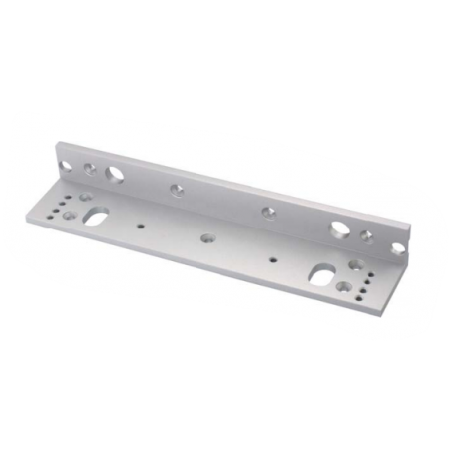

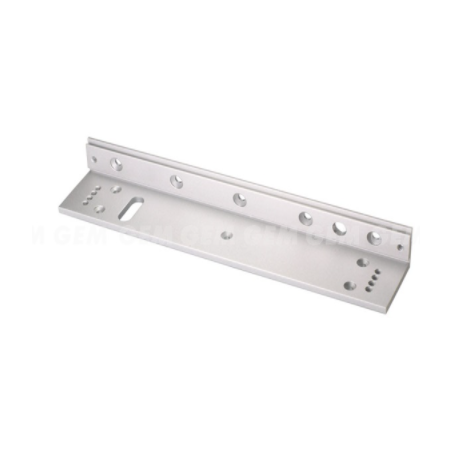

Accessories for Door-Magnet-V12
Mounting the Hold Magnet on side of Karm
mounting door plate If this is necessary
for outward door (outswing)
Heavy Aluminum profile
Dim: L 220 x D 70 x B 45 mm
497.00 kr
accessories DOOR-MAGNET-DUAL12
Mounting brackets for inward double-doors (inswing)
set contains 5 parts
Strong aluminum profiles
Measurements: The magnetic angle: 534 x 76 x 48 mm. Die-plate angles: 190 x 64 x 64 mm
1,600.00 kr

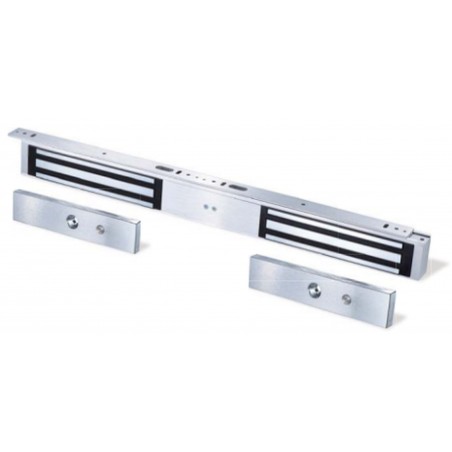

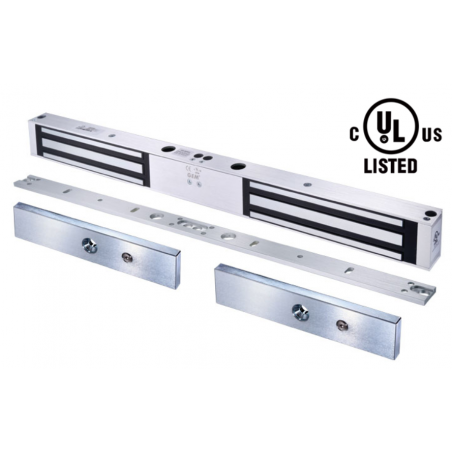

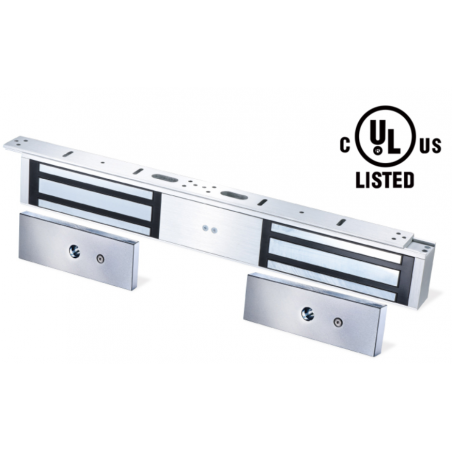

Electronic door magnet for double-doors, folding door etc.
Holding force up to 544 kg for each door
Aluminum housing and vandal proof
Supply voltage for team: 12VDC or 24VDC, minimum 2 x 6Watt
Automatic change-over between 12 and 24 VDC
No holding force when not energized
Operating temperature: -10 - 55 ° C
Humidity: 0-95% non-condensing
Double magnet: 534 x 68 x 40 mm
Door plates: 185 x 61 x 16 mm | Double-mounting plate: 534 x 40 x 8 mm | weight: ca. 6.5 kg
4,133.00 kr
Showing 41-60 of 95 item(s)
