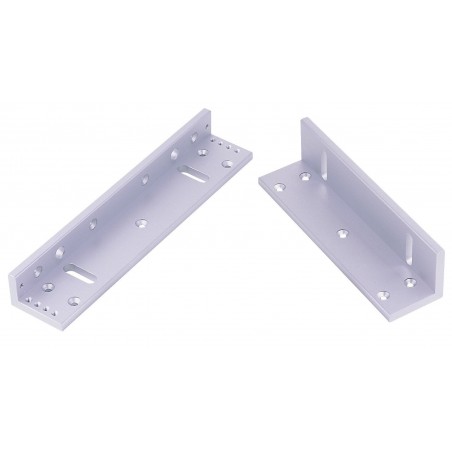

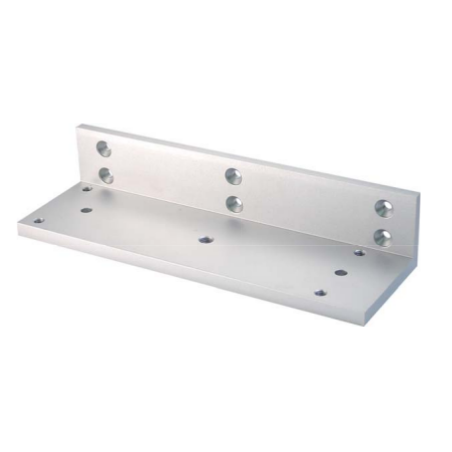

Angle bracket for door magnet DOOR-MAGNET+ if it is to be mounted on outward door
Accessories for DOOR-MAGNET+
angle bracket for outward door (outswing)
The kit consists of 1 part
heavy aluminum profile
target: See drawing
Electric access control means that the door or gate must be equipped with an electric lock.

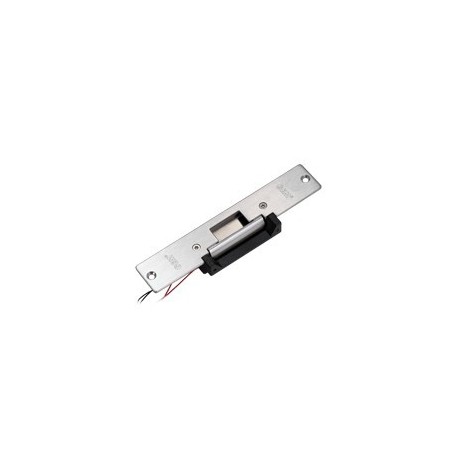

There are extremely numerous types and sizes, designed for all type of doors. Type Electric strike is the part of the lock mounted in the door frame. It has an electronically controlled mechanical flap that allows the latch on the door lock housing can pass freely during the time the electronics controlling this.
...Electric access control means that the door or gate must be equipped with an electric lock.
There are extremely numerous types and sizes, designed for all type of doors. Type Electric strike is the part of the lock mounted in the door frame. It has an electronically controlled mechanical flap that allows the latch on the door lock housing can pass freely during the time the electronics controlling this.
Where it is not possible to use electric strike may the door and the frame is provided with an electric holding magnet, in turn controlled by the access electronics. When the door is locked must be running a current in the holding magnet coil. When the coil is strømlås, release hold the magnet holding force to the door. This type holding magnets are available in various sizes and holding power. Typically, the holding force 300 kg.
The locking bolt lock type is the most secure, and that can be mounted more on the same door. The lock bolt is provided with a magnetic sensor which only allows the pawl to lock with the door in the exact position. Motor Lock is also an option, but not so widespread. Dørautomatikker combined with electric strike is a good solution, especially taking into account the person in a wheelchair. In addition to our solid solutions are also smart lock. Among other things. we dørrelæer with facial recognition, RFID and fingerprint as after five failed attempts at penetration will lock in 3 minutes and send notification to your smartphone. Super efficient keyless door lock.
Should you not find the lock you need, please contact us for advice and guidance.
Subcategories
There are 93 products.
Accessories for DOOR-MAGNET+
angle bracket for outward door (outswing)
The kit consists of 1 part
heavy aluminum profile
target: See drawing

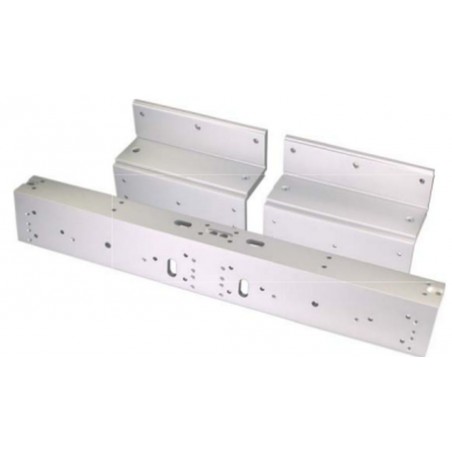

Accessories for DOOR-MAGNET-LOCK6
The kit consists of 3 parts
heavy aluminum profiles
target: See drawing

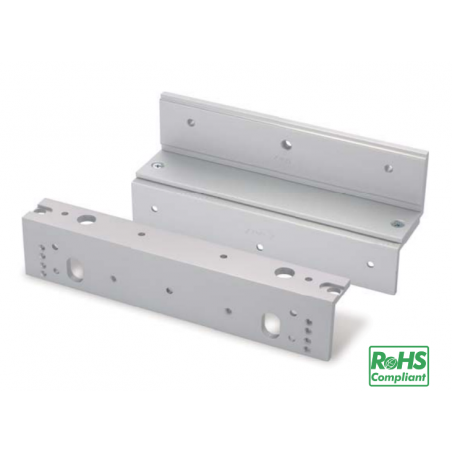

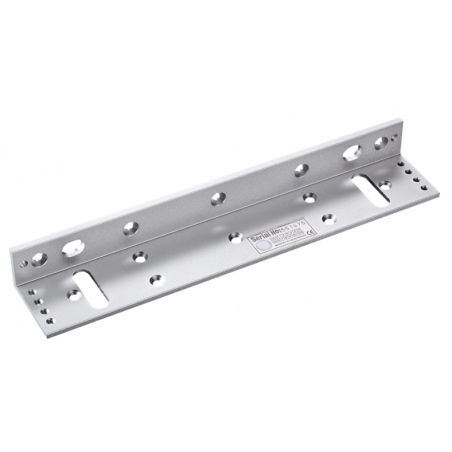

Accessories for DOOR-MAGNET-LOCK
angle fittings for outward door (outswing)
The kit consists of 1 part
heavy aluminum profile
Dim: See drawing

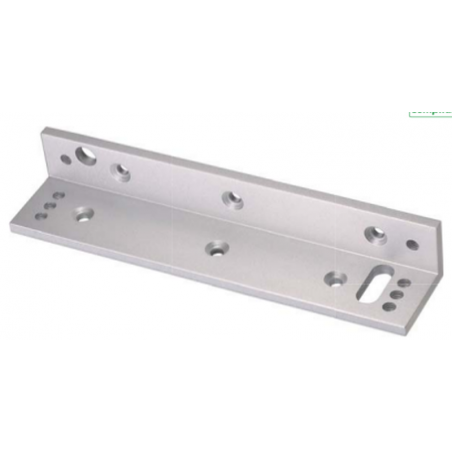

Accessories for DOOR-MAGNET-LOCK6
Angle bracket for outswing door
The set consists of 1 part
Strong aluminum profile
Dimensions: See drawing

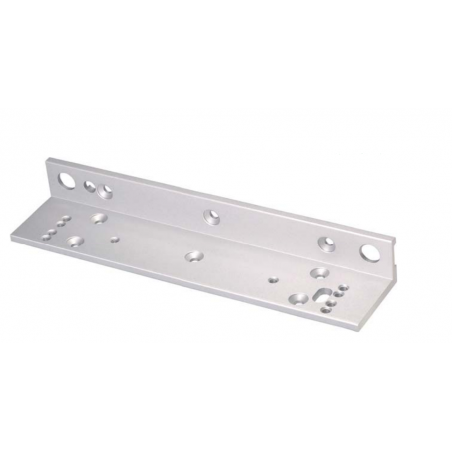

Accessories for DOOR-MAGNET-MI
angle fittings for outward door (outswing)
The kit consists of 1 part
heavy aluminum profile
Dim: See drawing
Electronic door magnet for double-doors, whop door etc.
Holding power up to 545 kg for each door
Aluminum House and Vandalsproof
Supply voltage for team: 12VDC or 24VDC, minimum 2 x 6 watts
Automatic switching between 12 and 24VDC
No holding power at voltageless
Operating temperature: -10 - 55 ° C
humidity: 0-95% non-condensing
double magnet: 533 x 71 x 40 mm
Door plates: 185 x 61 x 16 mm
Double mounting plate: 533 x 40 x 8 mm
Weight: approx. 5.6 kg
Buy access system - see accessories

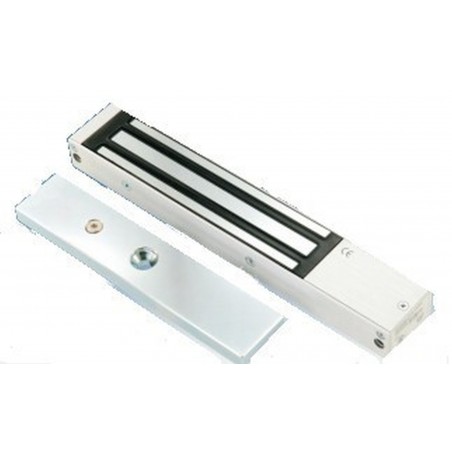

Electronic door magnet for double doors, swing doors etc.
Holding force up to 272 kg for each door
Aluminum housing and vandal-proof
Supply voltage for team: 12VDC or 24VDC, minimum 2 x 6Watt
Switching between 12 and 24VDC
No holding power when de-energized
With Bond sensor (door closed sensor)
Option: Door status sensor, Re-lock timer
Operating temperature: -10 - 55°C
Double magnet: 500 x 44 x 26 mm
Door panels: 185 x 38 x 12 mm
Double mounting plate: 500 x 26 x 5.5 mm
Weight: approx. 5 kg
Additional access system - see Accessories

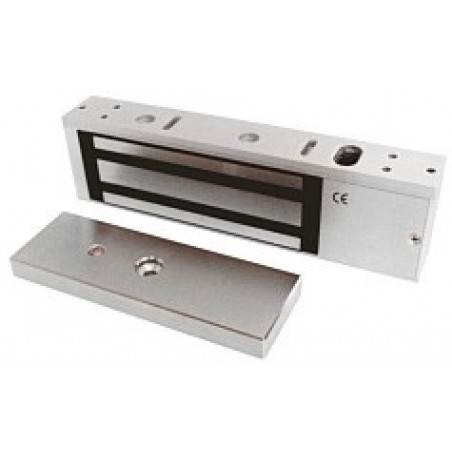

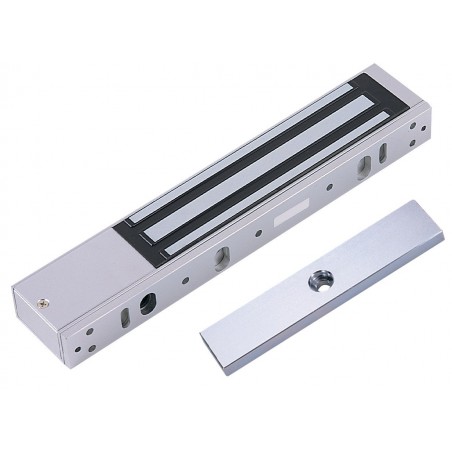

Door magnet with holding force up to 545 kg
Aluminum House and vandal safe
Supply voltage for holding: 12VDC or 24VDC, 6 Watt
automatic switching between 12 and 24VDC
No holding power at voltageless
Operating temperature: - 10 to + 55 ° C
Magnet: 254 x 67 x 40 mm
Door plate: 185 x 61 x 16 mm
Mounting plate for frame: 254 x 40 x 6 mm
Anti magnetic function
Weight: 4.9 kg

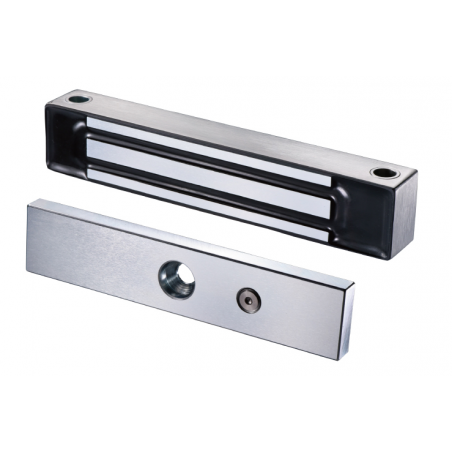

The door magnet with holding force up to 363 kg
Rust free steel cabinet full sealed with epoxy and is vandal safe
Voltage for hold: 12VDC or 24VDC, 6 Watt
Switch between 12 and 24VDC
No holding force at no voltage
Operating temperature: -10 to + 55 ° C
Magnet: 216 x 53 x 32 mm
Amaturple plate: 185 x 45 x 14 mm
anti magnetic function
Weight: Approx. 4.5 kg
Door magnet with holding power up to 545kg
Stainless steel cabinet fully sealed with epoxy
Supply voltage for team: 12/24VDC 6Watt
At 12V connect red to white, yellow to black
At 24V connect white to yellow. Red + Black -
No holding power when de-energized
Operating temperature: -10 to +55°C
Magnet: 220 x 68 x 42 mm
Amatur plate: 185 x 61 x 16 mm
Anti magnetic function
Weight: approx. 5 kg
Door magnet with holding power up to 816 kg
Stainless steel cabinet fully sealed with epoxy
Supply voltage for team: 12VDC 12Watt
No holding power when de-energized
Operating temperature: -10 to +55°C
Magnet: 284 x 72 x 48 mm
Amatur plate: 250 x 61 x 16 mm
Anti magnetic function
Weight: approx. 6 kg
Electronic door magnet for double-doors etc.
Holding power up to 545 kg for each door
Aluminum housing and Vandalsproof
Supply voltage for hold: 12VDC or 24VDC, minimum 2 x 6 watts
Automatic switching between 12 and 24VDC
No holding force at voltageless
Operating temperature: -10 - 55 ° C
humidity: 0-95% non-condensing
Double magnet: 530 x 52 x 29 mm
Door plates: 185 x 45 x 14 mm
Double mounting plate: 530 x 45 x 14 mm
Weight: approx. 5.5 kg
buy access system - see accessories
Door magnet with holding force up to 540kg
Aluminum House and vandal safe
Supply voltage for holding: 12VDC or 24VDC, 6Watt
Automatic switching between 12 and 24VDC
No holding power at voltageless
with LED indicator
Operating temperature: -10 to + 55 ° C
Magnet: 267 x 68 x 40 mm
Door plate: 185 x 61 x 16 mm
Mounting plate for frame: 267 x 40 x 8 mm
Anti magnetic function
Weight: 4.9kg

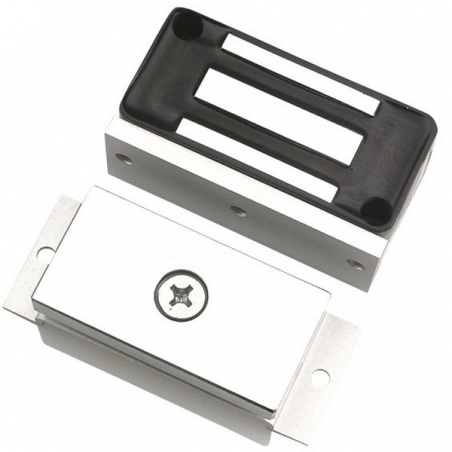

Door magnet with holding power up to 45 kg
Aluminum + steel and vandal-proof
Supply voltage for team: 12 or 24VDC, 4 Watt
Automatic switching between 12 and 24VDC
The door is locked with applied voltage
No holding power without tension
Operating temperature: -10 - 55°C
Magnet: 70 x 31 x 20 mm
Amatur plate: 60 x 32 x 8 mm
Weight: 300g
Purchase additional access control - see Accessories
Electric magnet locksplation for gates and doors
Team power is 110kg
supply voltage 12 or 24vdc, minimum 5watt
consists of electronic magnet and heavy metal plate for door / frame
target: 160 x 28 x 17mm
Plate: 130 x 28 x 8mm
Buying access system - see accessories
angle bracket for mounting on frame
for outward door

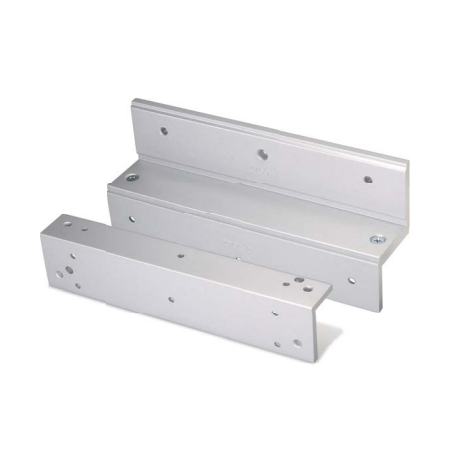

Angle bracket consists of 3 angles
mounting the holding magnet for inward door.
Angle bracket for mounting on frame
for fitting to outward door
Vinkelbeslag kit med 3 dele
Til indadgående dør
angle bracket for frame
for outward door
