Electronic lock, non-power locked 12VDC

Electric lock box for single / double acting swing doors
Smal frames - 25 mm Front plate
Brushed stainless steel
272 kg Pressure strength
Latch Status Output: 1A / 125VAC
Supply voltage: 12VDC 280MA / 24VDC 180MA
Operating voltage: 12 - 24VAC / DC
Operating cycle: 250,000 (factory tested)
Size: 24 x 160 mm House, 25 x 210 mm Front plate
Pole plate: 28 x 210 x 2 mm

Bolt lock for frame, locked with tension,
holding force 1000 KG
Built-in time control and reporting contact
12VDC 900 / 150mA start / operating current
Time delay: 0.3.6.9 sec.
CE & amp; MA Certified
Dimensions: 34 x 38 mm

Compact motorized lock with separate pawl
Locked without tension
Releases the locking pawl in case of short-term tension
The pal part has a push-out (5-8mm)
Adjustable delay on relocking 2 to 5 seconds
2 lock inputs
Can be mounted in 2 different ways
Control voltage - 12 - 28VDC / VAC, max. 165mA
Dimensions: 60 x 60 x 22mm

Electronic lock
DC 12V up, 0.8A
Metal
Cable length 36cm
Weight: 155g

Power socket for door frame, w / monitor funk., 45 mm
Holding force: 900 kg.
Voltage: 12 VDC, 250 mA. Not included. For example, use DC12V / 1A-R-Q
Dimensions: 202 x 45 x 32 mm (H x W x D)
max. (H x B)

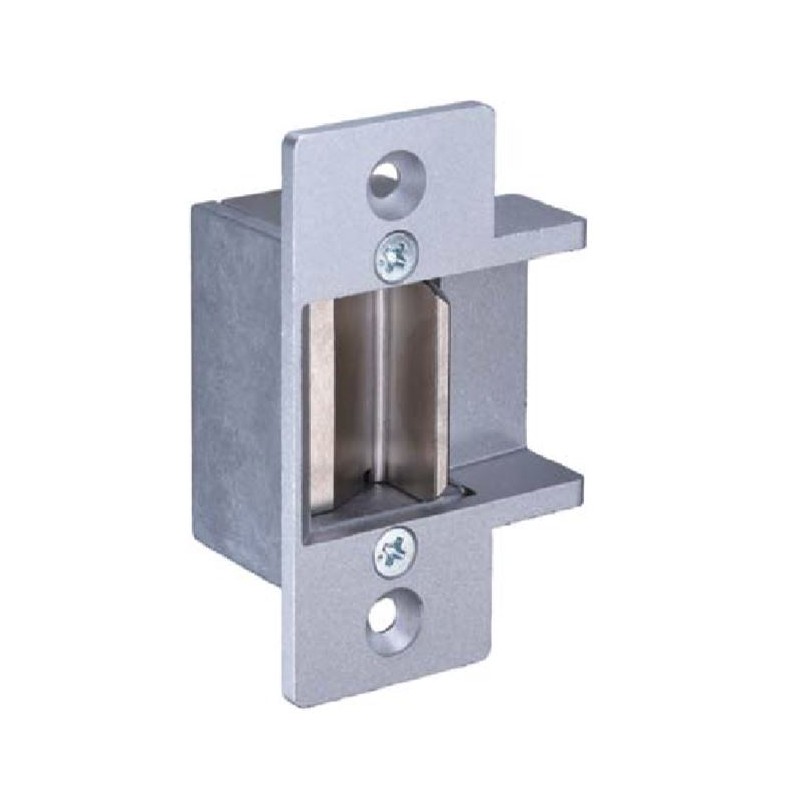

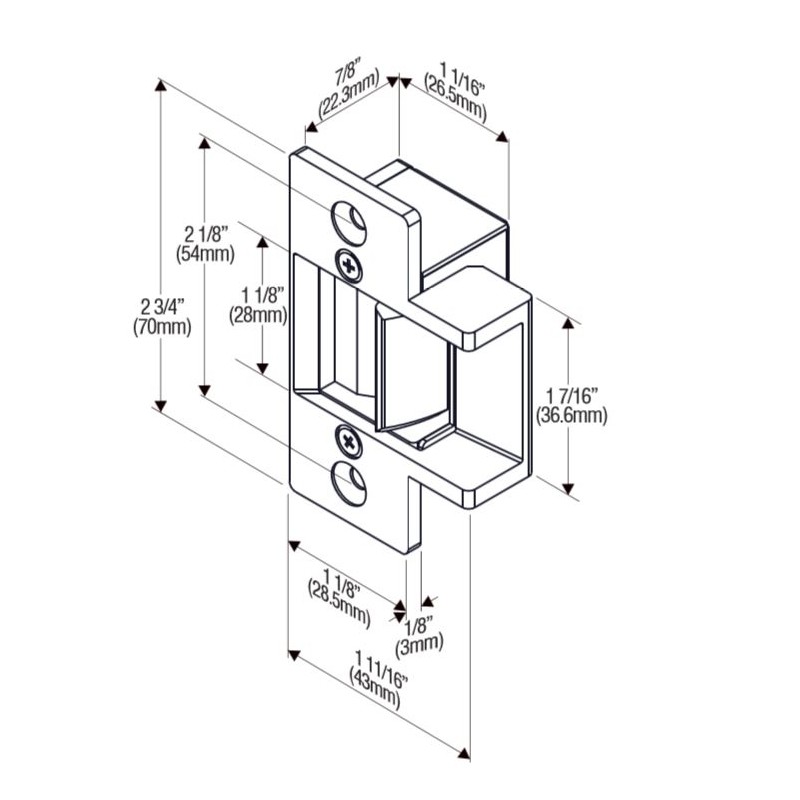

Electric strike for door frame, with lock monitor, 38 mm
with lock open without excitement
with lock closed without excitement
Force: 450kg
Voltage: 12VDC 300mA polarity independent
Lock Monitor: COM, NC NO output
Buy: DC12V/1A-R-Q
Dim: 202 x 36.5 x 27 mm

Electronic Mini Lock
12VDC / 1A
Goal: 80 x 65 x 14 mm
Weight: 260g

Electric door lock that is open without voltage.
Holding force 1000 KG
supply: 12 / 24V DC 130 / 65mA when activated
Suitable for Scandinavian types
Operating temperature: -20 ° C to + 40 ° C
Multi voltage 12-24V AC / DC
approved for use in fire-resistant doors E120 / A120 / EI120
Fail secure (PTO): SL 620
Fail safe (PTL): SL 621
Latch bolt adjustable left / right
Built in "By status" sensor
Status monitoring: latch, anti-thrust bolt live handle
Mechanical key override
