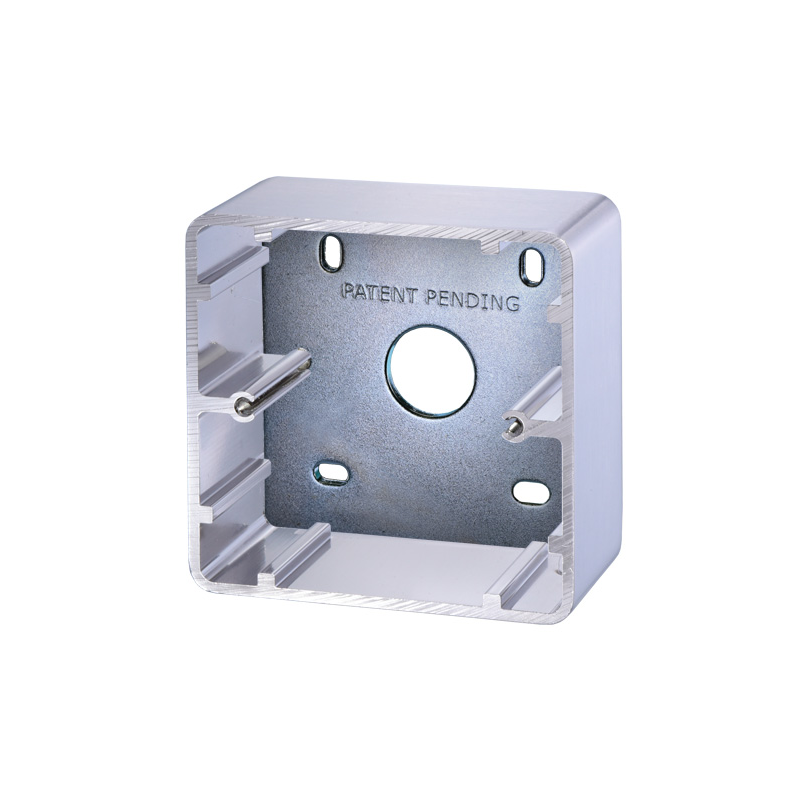

Robust aluminum housing for EXIT button
Dimensions: 38.5 x 38.5 x 38 mm
Center hole: 20 mm
4 x mounting holes for attachment
3 mm extruded alu
Polished surface
Robust aluminum housing for EXIT button
Dimensions: 38.5 x 38.5 x 38 mm
Center hole: 20 mm
4 x mounting holes for attachment
Accessories DOOR-MAGNET+E
bracket for mounting the inward door
Strong aluminum profile
Set consists of 3 parts
The door magnet with holding force up to 136 kg
stainless steel housing full sealed with epoxy
Voltage for holding: 12VDC 6 Watt
No holding force at voltageless
Operating temperature: -10 to +55°C
Magnet: 170 x 32 x 24 mm
Amaturple plate: 152 x 32 x 10 mm
Anti magnetic function
Weight: Approx. 2.5 kg
Cabinet lock - 150kg. Locked without voltage
trigger voltage: 12VDC / 180MA
Holding force: 150kg
Size: 50 x 31 x 27 mm
Weight: 0.18kg
Accessories for DOOR-MAGNET-V12CB
Z-angle bracket for inward opening door (inswing)
The set consists of 3 parts
Strong aluminum profiles
Dimensions: 220 x 75 x 47 mm
