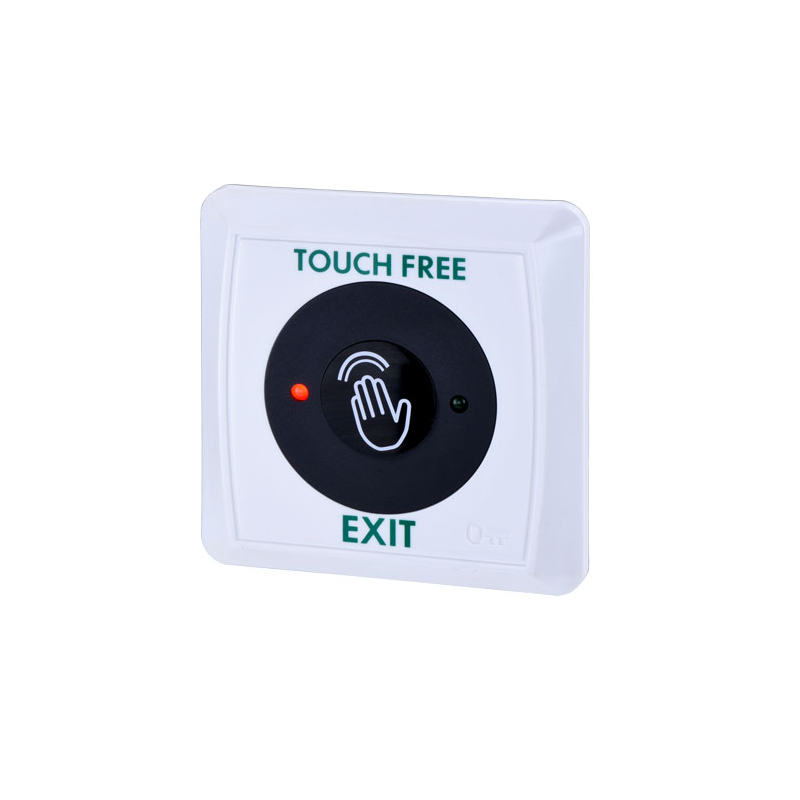

The switch is for touch-free access.
Up to 15 cm activation distance (30 - 150mm)
Touchless EXIT switch with relay output
IR motion technology
Adjustable hold timer 1-60 seconds
Adjustable activation distance 3 - 15cm
With blue and green LED
Relay contacts for 12 - 28VDC, 2Amp
Robust ABS plastic front
Supply voltage: 12 - 24VDC
Dimensions: 86 x 86 x 10 mm
Optional aluminum back piece - see picture and Accessories
Button-exit-touchless + is extremely suitable as exit contact for departure controls, electric door locks where there are sterile conditions. The switch is activated in a selected time to open a door, a shell with opening automation. This completely without touching the contact.
It is an ideal solution for hospitals, restaurants, toilets or maps and good all the places where many people must have access.
No need to touch the contact, but just holding your hand nearby of the front of the contact. The light indicator will change color when the door is open.
There are several versions - Contact our sales department for advice and guidance
Switch mode type
110-240 VAC for & nbsp; 12VDC / 3A
DC connector: 5.5 / 2.1 mm
Robust aluminum housing for EXIT button
Dimensions: 38.5 x 38.5 x 38 mm
Center hole: 20 mm
4 x mounting holes for attachment
3 mm extruded alu
Polished surface
Electronic door magnet for double doors, swing doors etc.
Holding force up to 272 kg for each door
Aluminum housing and vandal-proof
Supply voltage for team: 12VDC or 24VDC, minimum 2 x 6Watt
Switching between 12 and 24VDC
No holding power when de-energized
With Bond sensor (door closed sensor)
Option: Door status sensor, Re-lock timer
Operating temperature: -10 - 55°C
Double magnet: 500 x 44 x 26 mm
Door panels: 185 x 38 x 12 mm
Double mounting plate: 500 x 26 x 5.5 mm
Weight: approx. 5 kg
Additional access system - see Accessories
The door magnet with holding force up to 136 kg
stainless steel housing full sealed with epoxy
Voltage for holding: 12VDC 6 Watt
No holding force at voltageless
Operating temperature: -10 to +55°C
Magnet: 170 x 32 x 24 mm
Amaturple plate: 152 x 32 x 10 mm
Anti magnetic function
Weight: Approx. 2.5 kg
Designed for face mount on in-swing doors or gates
Operating Temperature: -10 - 55ºC
Armature Plate: 185, 45, 14 mm.
Magnet: 203, 43, 40 mm.
Spike and surge protection.
Holding force up to 272 Kg.
Dual voltage 12 or 24 VDC.
Anti-residual magnetism.
High reliability.
Weight: 3.0 Kg.
The switch is for touch-free access.
Up to 10 cm activation distance (10 - 100mm)
Touchless EXIT switch with relay output
Relay timer: 0.5 second
IR motion technology
Adjustable activation distance
With blue and green LED
Relay contacts for 12 - 28VDC, 3Amp
Stainless steel front plate
Supply voltage: 12VDC
Dimensions: 86 x 86 mm
