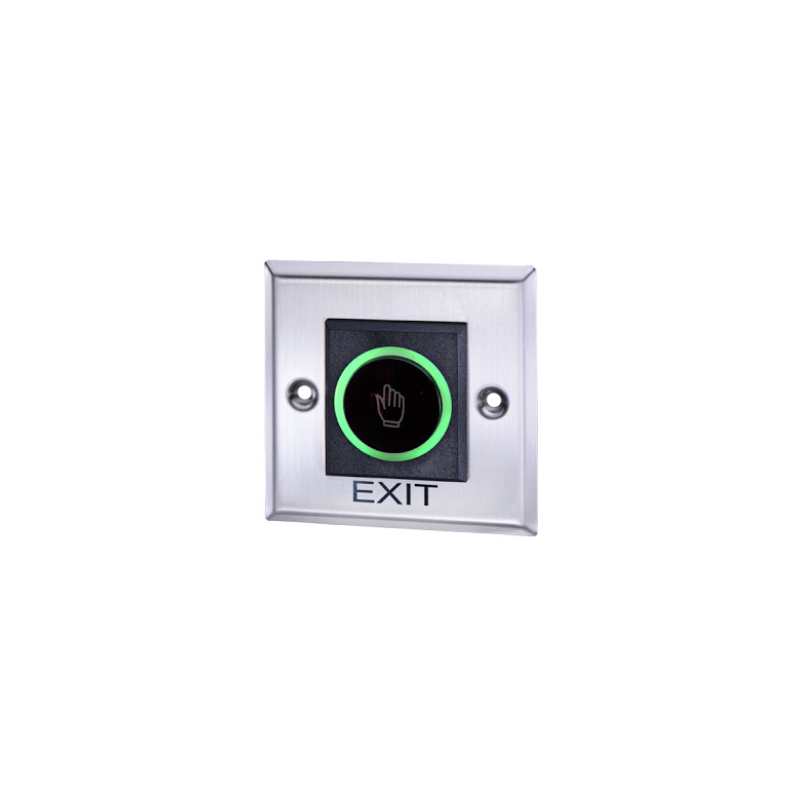

The switch is for touch-free access.
Up to 10 cm activation distance (10 - 100mm)
Touchless EXIT switch with relay output
Relay timer: 0.5 second
IR motion technology
Adjustable activation distance
With blue and green LED
Relay contacts for 12 - 28VDC, 3Amp
Stainless steel front plate
Supply voltage: 12VDC
Dimensions: 86 x 86 mm
Button-exit-touchless is extremely suitable as exit contact for departure controls, electric door locks where there are sterile conditions. The switch activates the relay for a given time to open a door, (must be with opening automation). This completely without touching the contact.
It is an ideal solution for hospitals, restaurants, toilets or maps and good all the places where many people must have access.
No need to touch the contact, but just holding your hand nearby of the front of the contact. The light indicator will change color when the door is open.
There are several versions - Contact our sales department for advice and guidance
Switch mode type
110-240 VAC for & nbsp; 12VDC / 3A
DC connector: 5.5 / 2.1 mm
Robust aluminum housing for EXIT button
Dimensions: 38.5 x 38.5 x 38 mm
Center hole: 20 mm
4 x mounting holes for attachment
3 mm extruded alu
Polished surface
Accessories for DOOR-MAGNET-LOCK
angle fittings for outward door (outswing)
The kit consists of 1 part
heavy aluminum profile
Dim: See drawing
Designed for face mount on in-swing doors or gates
Operating Temperature: -10 - 55ºC
Armature Plate: 185, 45, 14 mm.
Magnet: 203, 43, 40 mm.
Spike and surge protection.
Holding force up to 272 Kg.
Dual voltage 12 or 24 VDC.
Anti-residual magnetism.
High reliability.
Weight: 3.0 Kg.
Electric door lock that is locked without tension.
Holding force 1000 KG
supply: 12 / 24V DC 130 / 65mA when activated
Suitable for Scandinavian types
Operating temperature: -20 ° C to + 40 ° C
Multi voltage 12-24V AC / DC
approved for use in fire-resistant doors E120 / A120 / EI120
Fail secure (PTO): SL 510
Fail safe (PTL): SL 511
Latch bolt adjustable left / right
Built in "By status" sensor
Status monitoring: latch, anti-thrust bolt & amp; live handle
Mechanical key override
Door magnet with holding force up to 540kg
Aluminum House and vandal safe
Supply voltage for holding: 12VDC or 24VDC, 6Watt
Automatic switching between 12 and 24VDC
No holding power at voltageless
with LED indicator
Operating temperature: -10 to + 55 ° C
Magnet: 267 x 68 x 40 mm
Door plate: 185 x 61 x 16 mm
Mounting plate for frame: 267 x 40 x 8 mm
Anti magnetic function
Weight: 4.9kg
