EDID ghost (emulator) til VGA

Emuler skærmens EDID informationer

EDID-GHOST-VGA
465.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

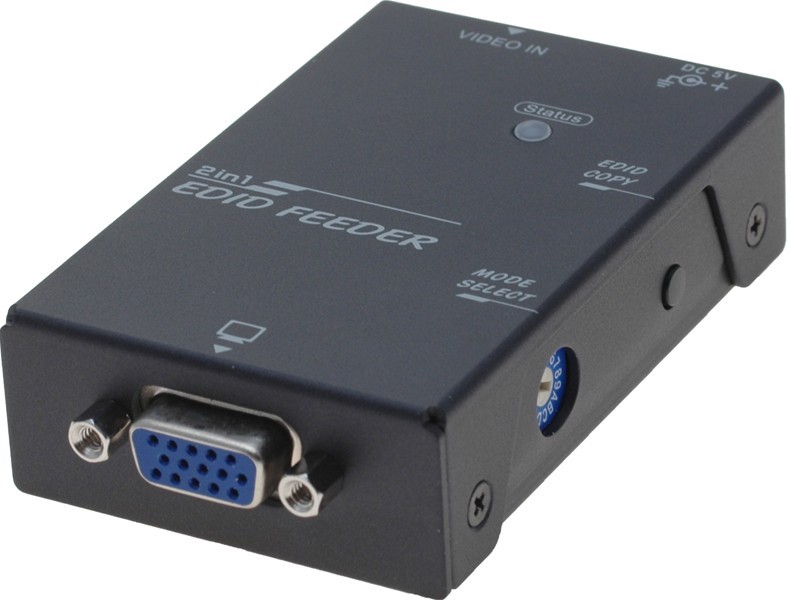

EDID-GHOST er en EDID (Extended Display Identification Data) emulator af en skærms EDID information.

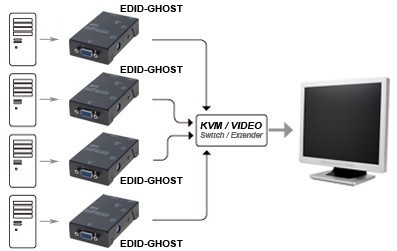

EDID-GHOST emulerer skærmens informationer til pc’en, når EDID signalet ikke kan sendes igennem fra skærmen hvis der f.eks. bruges en video extender eller KVM switch.

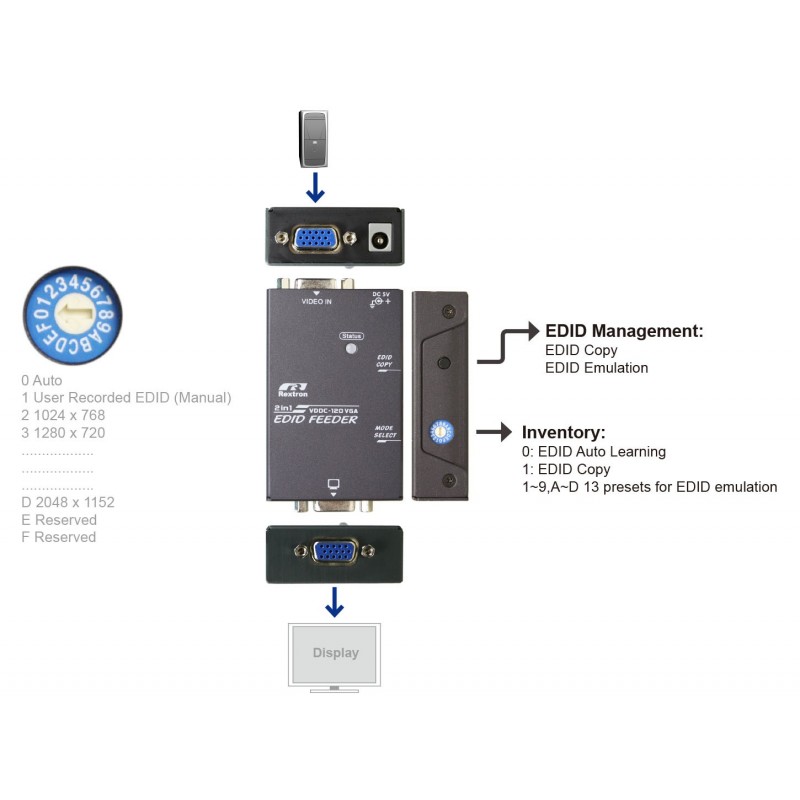

For at indlæse EDID-data fra skærmen i EDID-GHOST sluttes dem direkte til skærmen, hvorefter der trykkes på "EDID Copy"-knappen. Hvis der ikke er en EDID tilgængelig fra skærmen, har EDID-GHOST en Default EDID, der så benyttes til at emulere den ønskede opløsning, som vælges vha. omskifter.

EDID: Extended Display Identification Data, er en strøm af data, som mange skærme sender serielt med information om skærmens opløsning, billedformat, hastighed og meget mere.

Andet
Optagelse af EDID og valg af opløsning vælges vha. drejekontakt med 16 positioner.
Dimensioner
22 x 51 x 80 mm
Hukommelse
Gemmer optaget EDID af skærm i lokal NVRAM
Indikatorer og kontakter
1 x 3-farvet LED (Grøn, Rød, Hvid)
Opløsning
1024 x 768, 1280 x 720, 1280 x 1024, 1366 x 768, 1440 x 900, 1600 x 900, 1600 x 1200, 1680 x 1050, 1920 x 1080, 1920 x 1200, 1920 x 1440 og 2048 x 1152 punkter
Stik
Indgang: 1 x DB15HDF, Udgang: 1 x DB15HDF
Strømforsyning
Strømforsynes af 5VDC. 1,5 meter strømkabel med USB A til 2,5/5,5 mm DC stik medfølger
