VGA passive extends up to 100 meters via network cable. Max. 1280 x 1024, no power connection

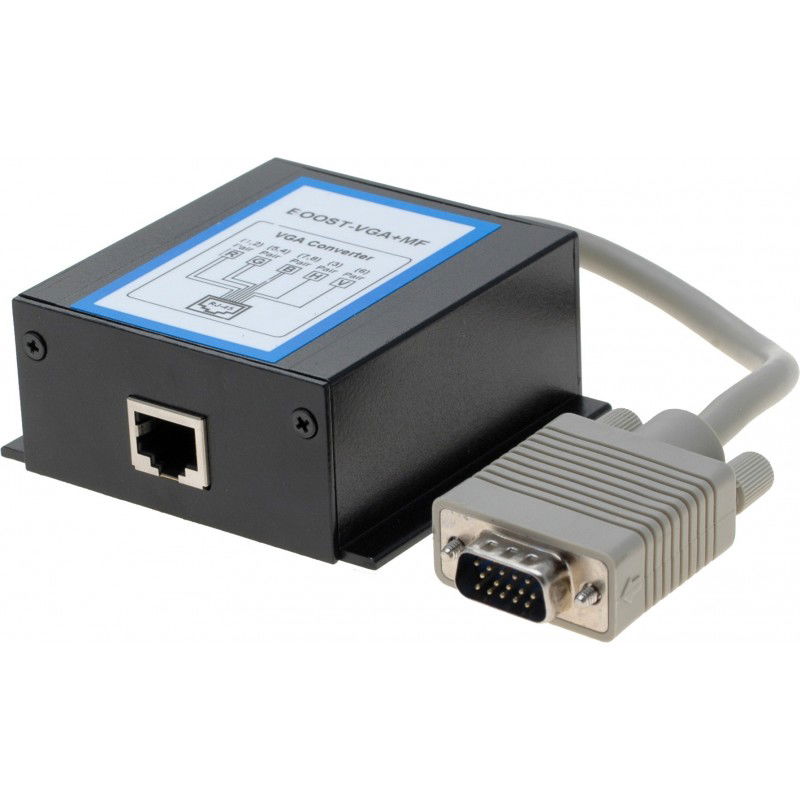

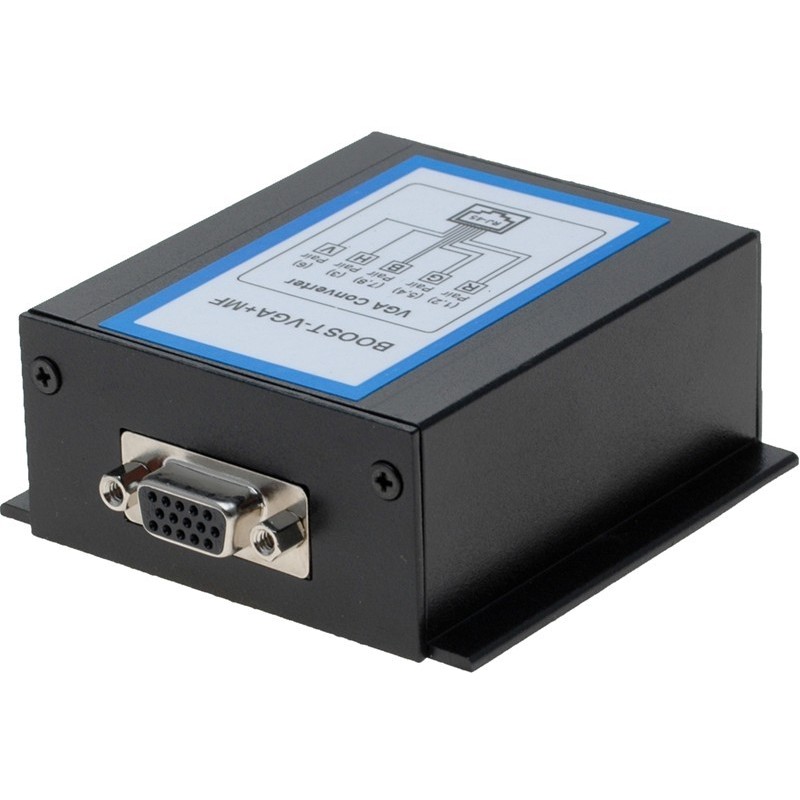

Passive VGA Extender Over Point to Point Network Cable

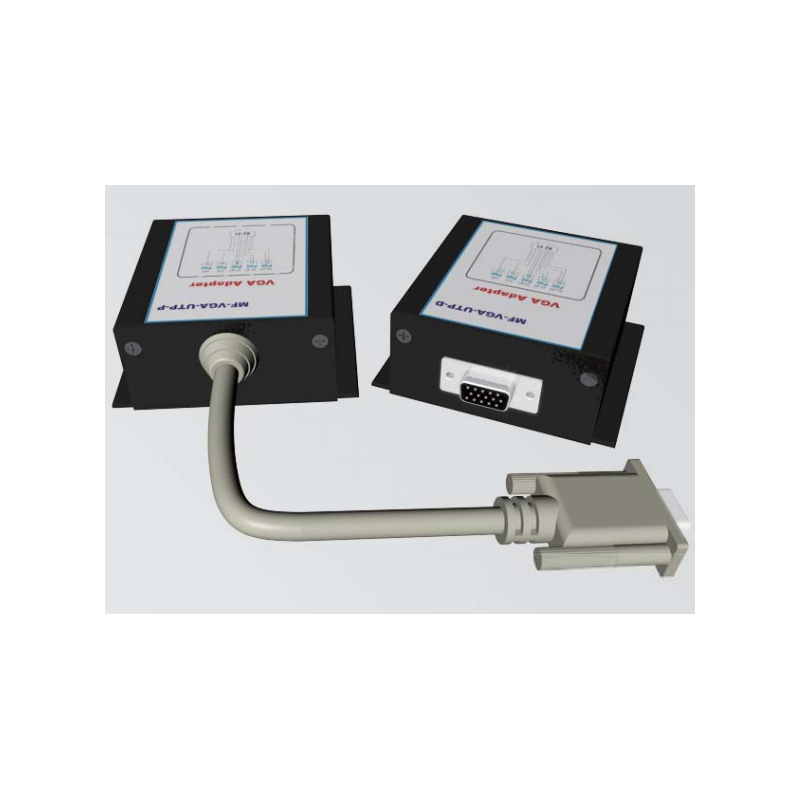

Complete Set With Sender and Receiver Box
Up to 100m. Just through PDS cable (paired cable) - Do not connect network switch
Max. 1280 x 1024 pixel
Balun principle - unbalanced / balanced
Critical with network cable quality.
Supports only UTP network cables, cat. 6 or better
More noise immunity than active extenders.
No power required

BOOST-VGA+MF
1,449.20 NOK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Dimensions 32 x 79 x 71 mm.
Stik1 x RJ45 connector, 1 x DB15HDF (VGA) connector.
Resolution up to 1280 x 1024 pixels
Cable CAT5 ~ 7 UTP cable
Distance up to 100 meters between the transmitter and receiver boxes
No power required as it is built of passive components

Afstand
Afstand op til 100 meter mellem sender- og modtagerboksene
Dimensioner
32 x 79 x 71 mm
Kabel
CAT5~7 UTP kabel
Opløsning
Op til 1280 x 1024
Stik
1 x RJ45 stik, 1 x DB15HDF (VGA) stik.
Strømforsyning
Kræver ingen strømforsyning da den er opbygget af passive komponenter
