ControlByWeb I/O modules

Expansion modul med 2 kraft-relæer op til 20Amp
250VAC ved NO, 30VDC ved NC
10 polet fladkabel til Controller
Daisy chain til næste Expansion modul
RS485 kommunikation mellem modulerne
Forsyningsspænding: 9-28VDC
Mål: 99 x 78 x 36 mm

Expansion Modul til X-400-I og X-600M-I
8 x slutterelæ 125VAC / 30VDC 2,5Amp
10 polet interconnection fladkabel til Controller
RS485 kommunikation mellem enhederne
Forsyningsspænding: 9 - 28VDC fra Controller
Mål: 99 x 78 x 36 mm

Expansion module for X-400-I and X-600M-I
2 x Thermocouple connections for K-type Temperature sensor
10 pole interconnection flat cable for controller
RS485 communication between the devices
Supply voltage: 9 - 28VDC from Controller
Dim: 99 x 78 x 36 mm

WEB-based data logger for temperature and humidity sensors
Can be programmed to 3 second sample time
-55 - + 125°C, -40 - + 80°C 0 - 100%rH
4 pcs. 1-Wire bus for 16 sensors, each
Max. 64 pcs. temperature or temperature/humidity sensors
Max. distance to sensors: 180 meters
Tasks: 50 scheduled, 50 Conditional, 20 override
Email alerts, custom (encrypted email servers, such as gmail)
Real-time clock with NTP server synchronization
No software required
Configurable logging
Graph (logged data)
HTTPS/TLS encrypted
Static or DHCP IP address configuration
Modbus, SNMP, Remote Service, IP filtering
On-site is updated
For DIN rail / wall
Supply voltage: 9 - 28VDC, 134mA
Dimensions: 98 x 78 x 36 mm

WEB-based data logger for temperature and humidity sensors
Can be programmed to 3 second sampling time
-55 - + 125°C, -40 - + 80°C 0 - 100%rH
4 pcs. 1-Wire bus for 16 sensors, each
Max. 64 pcs. temperature or temperature/humidity sensors
Max. distance to sensors: 180 meters
Tasks: 50 scheduled, 50 Conditional, 20 override
Email alerts, custom (encrypted email servers, such as gmail)
Real-time clock with NTP server synchronization
No software required
Configurable logging
Graph (logged data)
HTTPS/TLS encrypted
Static or DHCP IP address configuration
Modbus, SNMP, Remote Service, IP filtering
On-site is updated
For DIN rail / wall
Supply voltage: PoE or 9 - 28VDC, 134mA
Dimensions: 98 x 78 x 36 mm

Web based controller with 8 digital inputs
Digital High is: +4 - +26VDC
8 x digital inputs Opto-isolated
Common ground
200Hz Counter - 24bit
Tasks: 50 Schedule Planned, 50 Conditional, 20 Tuffer Terms
Email Alarms by defined conditions
Supports encrypted e-mail servers such as Gmail
RTC with NTP server synchronization
No software required
Graph (Logged data)
HTTPS / TLS encrypted
Static or DHCP IP Address configuration
Modbus, SNMP, Remote Service, IP Filtering
On-site update
Supply voltage: 9 - 28VDC
Dim: 98 x 78 x 36 mm

Web based controller with 8 digital inputs
Digital High is: +4 - +26VDC
8 x digital inputs Opto-isolated
Common ground
200Hz Counter - 24bit
Tasks: 50 Schedule Planned, 50 Conditional, 20 Tuffer Terms
Email Alarms by defined conditions
Supports encrypted e-mail servers such as Gmail
RTC with NTP server synchronization
No software required
Graph (Logged data)
HTTPS / TLS encrypted
Static or DHCP IP Address configuration
Modbus, SNMP, Remote Service, IP Filtering
On-site update
Supply voltage: 9 - 28VDC
Dim: 98 x 78 x 36 mm

8 x analog inputs - Sample Rate 25 times per second
8 x input - Single ended: ± 1.28V, ± 2.56V, ± 5,12V, ± 10,24V
input 1 - 4 Can be 4-20mA
Web server for configuration and remote monitoring
Permissions: Administrator, Manager, User
Tasks
50 schedule planned
50 Conditional
20 overroubed
Email Alarms by Defined Terms
Supports Encrypted Email Servers, such as Gmail
RTC with NTP server synchronization
No software Required
Basic Script Support for Advanced Flexibility
Logging - Graph Presentation
static or DHCP IP Address Configuration
Modbus, SNMP, Remote Service, IP Filtering
On-site update
Supply voltage: PoE or 9 - 28VDC

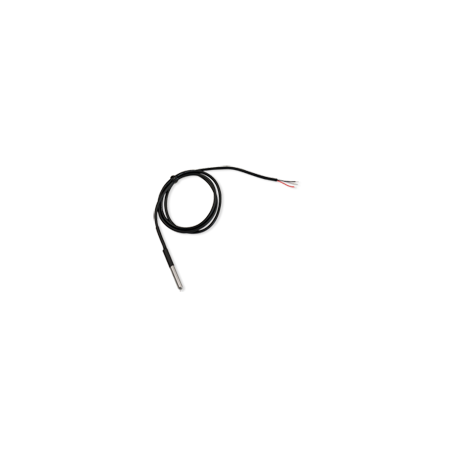

Digital temperature sensor with 1-wire interface
Sensor diameter: 5.5mm
Sensor length: 50mm
Cable: 1 meter
3-wire cable: + 5VDC, GND, data
Max distance from feel to controller is 185 meters
IP66
stainless steel sensor

1-wire adapter box for K Thermopler element
acquire K-thermocoupler sensor
adapter with built-in DS18B20 Chip
interface is + 5VDC, GND, data
screw terminal for K-Thermoføler

Expansion module for X-400, X-600 Controller
with Daisy Chain for several I/O modules
16 x Dry Spst Form c relay - Signal relay
Relays can be grouped in common
Activation of Relays Can switch individual
16 x digital input - optoisolated, 4 - 28VDC
4 x analog inputs - 12bit, 0 - 5VDC, common gnd
LED Indication - Relay and DI status
Supply voltage: 9 - 28VDC ( Preferably 24VDC)
Dim: 219 x 126 x 50 mm
Weight: 342g
DIN mount

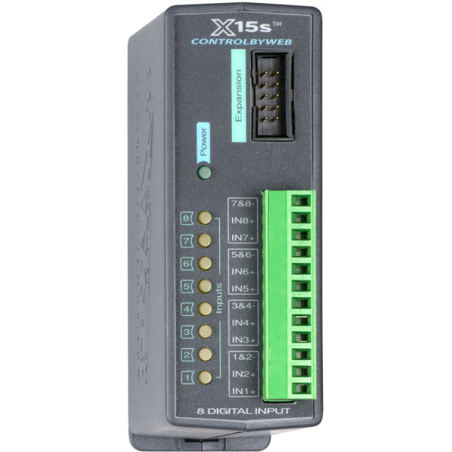

Expansion module for X-400-I and X-600M-I
8 x digital inputs - High is from 3 - 26VDC
Opto-Isolated Inputs, Common GND
Counter Input: Max. 200Hz
10 Polet interconnection flat cable for controller
RS485 Communication between the devices
Supply voltage: 9 - 28VDC from controller
Dim: 99 x 78 x 36 mm

Expansion module for X-400-I and X-600m-I
4 x Endelæ 125vac / 30vdc 2.5AM
4 x digital in, opto-insulated with common frame
10 pole interconnection flat cable For controller
RS485 communication between the devices
supply voltage: 9 - 28VDC from Controller
Dim: 99 x 78 x 36 mm

Expansion module for X-400-I and X-600M-I
4 x C relay 125VAC / 30VDC 2.5AM
C / SPDT Relay
10 pole interconnection flat cable for controller
RS485 communication Between the units
supply voltage: 9 - 28VDC from controller
Dim: 99 x 78 x 36 mm

Expansion module for the X-400 / X-600 Controller series
8 x precise analogue inputs
Voltage Input: ±1.28V, ±2.56V, ±5.12V, ±10.24V
Current input, 4 - 20mA
Removable terminal plug
Driven via expansion bus - no power supply
High input impedance
Great for monitoring applications including:
Temperature
Electric current
Pressure
Fluid levels
With DIN bracket

Water detector with normally closed relay output
Supply voltage: 5VDC / 10mA
Relay contact: max. 30VDC/500mA
Red: +5VDC
Black: GND
Green: Relay contact
White: Relay contact
REMEMBER: Relay contact opens when water is removed.
