X-420-I is a fully equipped, Ethernet I / O monitoring and data collection module with an innovative solution for creating logical tasks without the need for scripting.

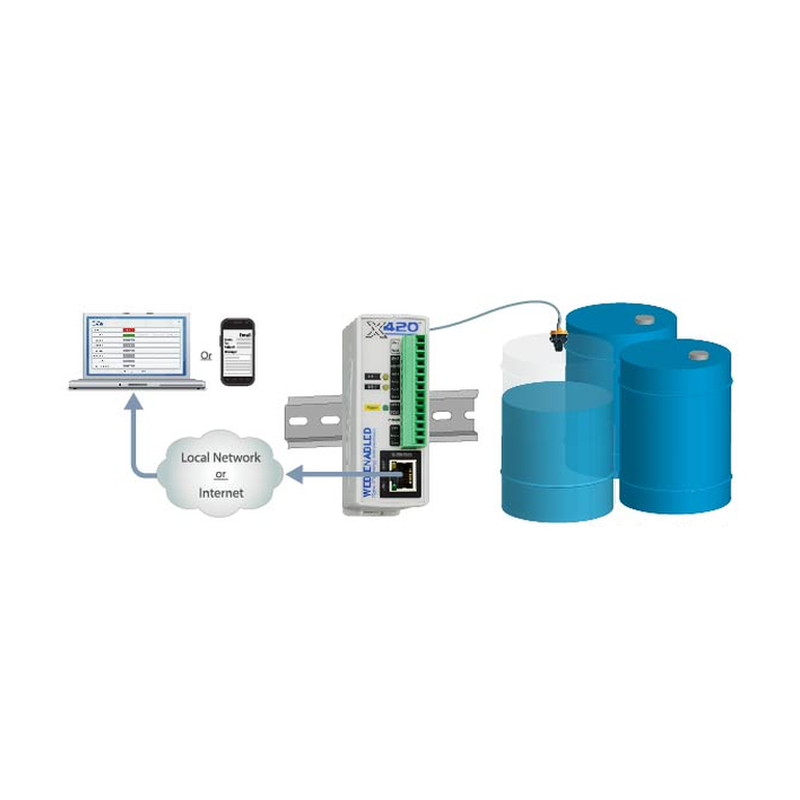

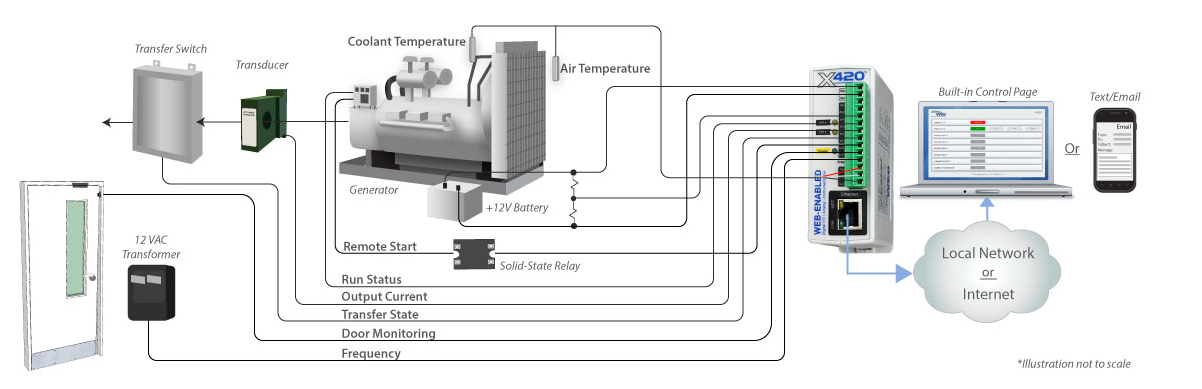

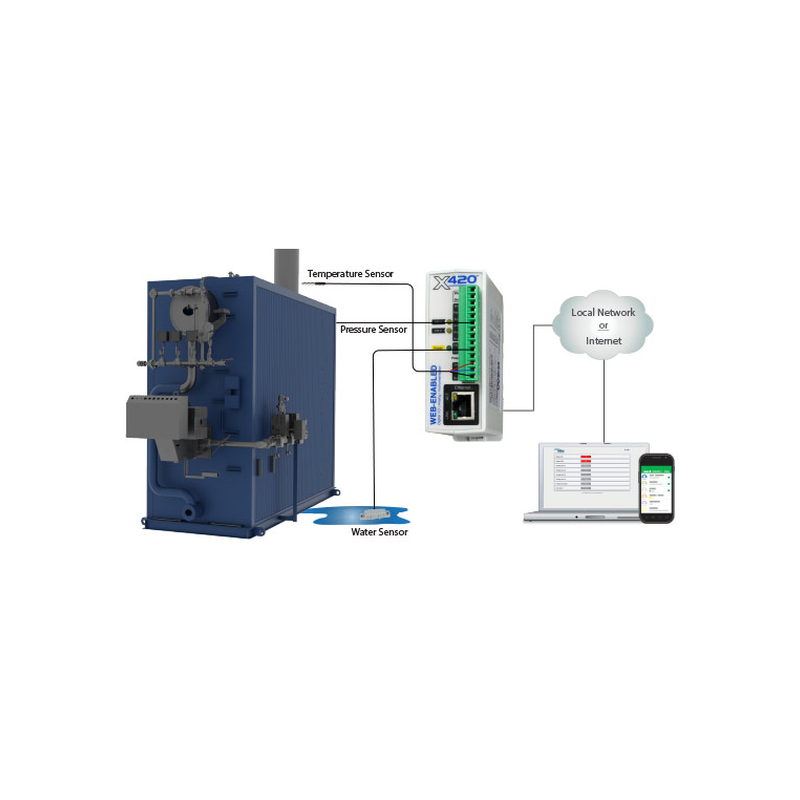

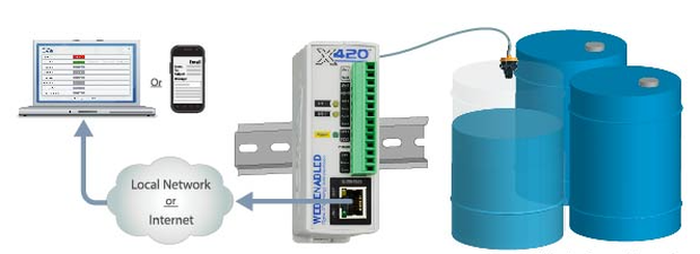

Monitor and log up to 100 inputs and / or outputs from up to 32 external I / O modules using X-420-I's intuitive web interface. PUSH sensor data for other controlbyweb modules. No software required, no programming required and no subscription to buy. 4 analog inputs (multifunction) ± 1.28V, ± 2.56V, ± 5.12V, ± 10.24V, 4-20mA. Can be configured for single-ended, 2 channel differential or 4-20mA (0-20MA) input operation. Monitor industrial sensors, wind direction sensors, pyranometers, pressure transducers and much more.
2 Digital I / O can be configured as inputs or outputs (0-5VDC). Inputs: Monitor Dry Contacts including push buttons, magnetic door alarm contacts, microcontacts, etc. Outputs provide a digital logical signal that can be connected to a solid state relay for control engines, pumps, light, etc. 1-wire bus to max. 16 Temperature / humidity sensors .
frequency counter ac coupled frequency input to e.g. Magnetic wind speed sensor, transformer, etc.
X-420-I support peer-to-peer communication between ControlByWeb modules. It communicates with up to 32 modules and allows you to monitor and control up to 100 I / O points. X-420-I can communicate with all ControlByWeb devices, with immediate message between products in the X-400-in series, which means that X-420-I can monitor and control I / O on other products in X-400- In the series as if it was directly connected to module.
Task Builder (Task Builder) X-420-I's built-in interface allows you to create custom "tasks" for simple and advanced control logic. Easily create tasks based on input or output status. Create up to three actions for each task, so you get the ultimate control and monitoring solution for your application.Opet up to 50 scheduled, 50 conditional and 20 overlay plans.
Conditional tasks are triggered depending on input or output status. Conditional tasks are often used to create alarms, check output and log. Scheduled tasks perform actions on preset times at specific days. Scheduled tasks are often used to log I / O data at a certain time or to control digital outputs. X-420-I contains a Basic script interpreter. This allows you to create scripts that calculate analog parameters or create advanced control logic.
Logging: X-420-I Allows to log a number of data points as local and external I / O, registers and excitement. Logging can be made with preset intervals, scheduled times, triggered by I / O changes or logical events. Plan a daily log file to be sent by e-mail or uploaded via FTP server.
Graphing: Show a graph of the current log file and see I / O's status over time.
