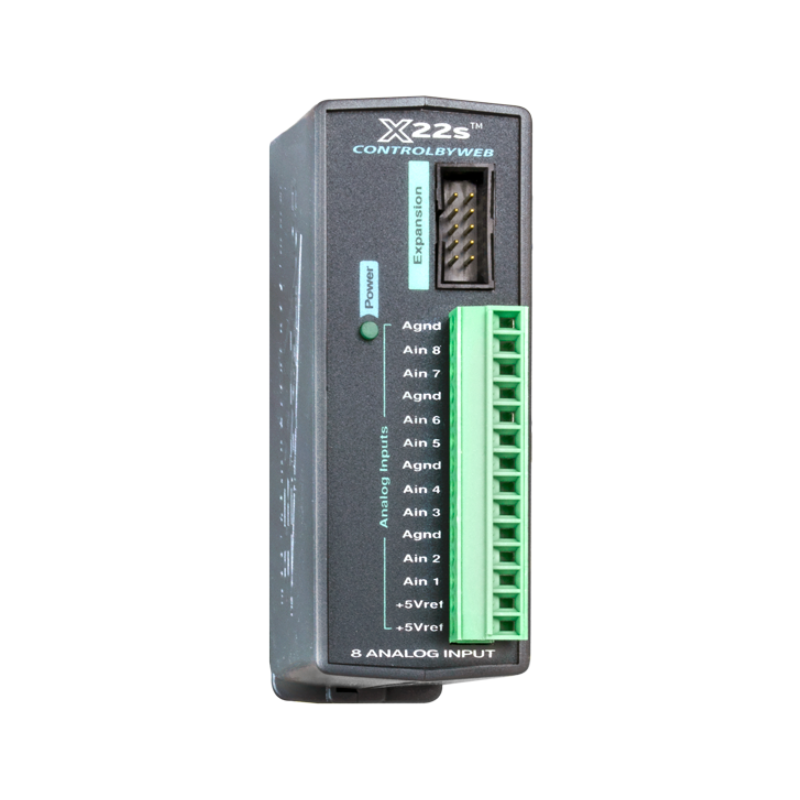

Expansion module with 8 x Analog input, volt, 4-20mA, 16bit resolution, 1 x modular connector for Controller X-400-I or X-600-I

Expansion bus - up to 32 I/O modules or remote modules up to 100 I/O
Peer-to-Peer communication (P2P)
1-wire bus: Up to 16 sensors for temp / moisture : -55°C - +125°C
Web server for configuration and remote monitoring
Permissions: Administrator, Manager, User
Task Builder:
50 Scheduled Tasks
50 Conditional Tasks
20 Restart tasks
20 Override Schemes
Email Alarms by User Terms
RTC with NTP synchronization
configuration of almost all I/O
No software Required
Basic Script Support for Advanced flexibility
Data logging, graphs (logged data)
Static or DHCP IP address
Modbus, SNMP, Remote Service, IP Filtering

Network-based I/O module control
For all ControlByWeb modules
Powerful built-in web server
Logging and automatic drawing of log files
Built-in Ethernet switch with two Ethernet connections
Expansion bus - Direct connection with up to 64 modules *
Supports USB WiFi adapters/USB flash
For 1-wire bus for temp/humidity sensors
Custom email alerts
Logical scripts or programs with Lua
Advanced planning in full calendar
Protocols: HTTP, HTTPS, SSL, SMTP, Modbus/TCP
Remote Services ™ server and client etc
Email alerts based on user defined conditions
Static or DHCP IP address configuration
XML, Modbus/TCP and SNMP interface options
