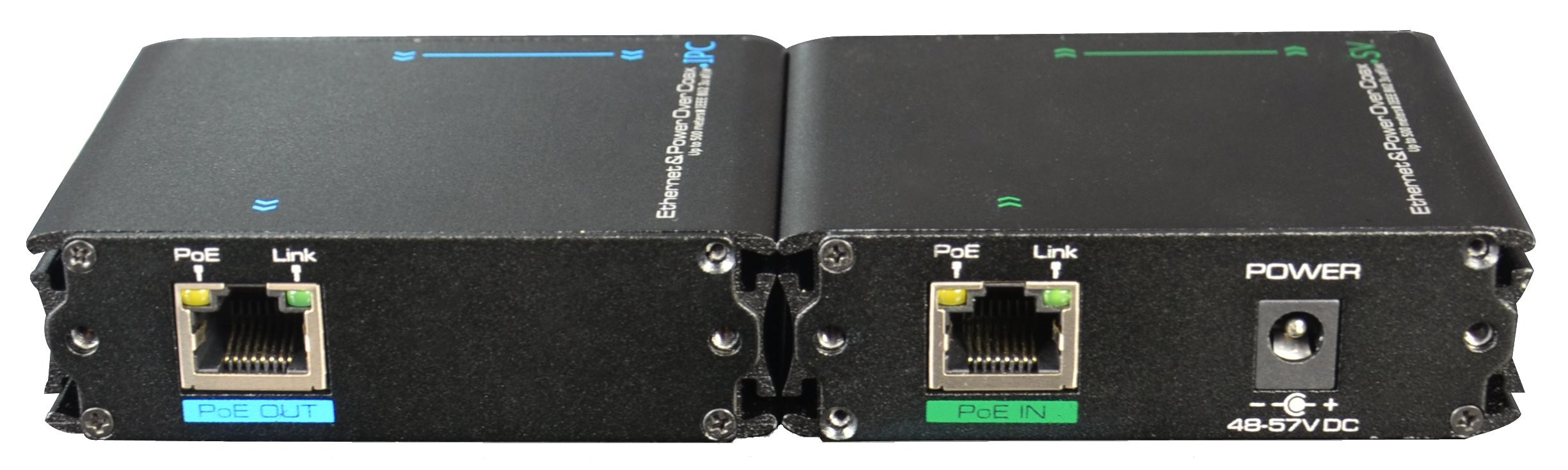

100Mbit netværk over Coax kabel, op til 500 meter, med PoE

Cyper Security VPN Router with dual WAN failover
Managed
10/100/1000Mbit
3 x RJ45 LAN
1 x RJ45 LAN / WAN
1 x WAN
1 x USB 3.0
Auto Reboot for 5 seconds
VPN tunnels: max 60
VPN throughput: max 100Mbps
Encryption: DES, 3DES, AES, AES-128/192/256
Authen: MD5 / SHA-1/256/384/512
IPSec (Host to Host) / GRE / PPTP server / L2TP / SSL
Operating temperature: -40 - + 75 ° C
Dimensions: 135 x 88 x 50 mm
Weight: 530g
Supply voltage: 9 - 48VDC, 9Watt
DIN bracket, wall mounting

POE power supply via Ethernet cable, up to 30 watt
LAN without PoE in, gives LAN with PoE out
Poe +, 56VDC / 30W
10/100/1000Mbit network.
Power supplies from 12 -48VDC / 32W Max
Redundant Power Input via Terminal Block
Power supply not included
Dim: 135 x 87 x 32 mm
Operating temperature: -40 ~ +75°C

5 ports Unmanaged switch - MOXA EDS-205
10/100Mbit RJ45
Broadcast storm protection
DIN-skinne
-10 to 60°C driftstemperatur

External COM port over Ethernet and Internet
RS232/422/485
Baud rate: 1200 - 230.4kbps (2-wire)
Max. baud rate at 4-wire RS485 up to 921.6kbps
Atop SE5201-DB Serial Device Server
10/100Mbit Ethernet.
Serial port via DB9 male connector
Supports TCP Server/Client, UDP, Virtual COM and Tunneling modes
Power is supplied from 9 - 30VDC or 5VDC (power jack)
Power supply not included
DIN kit (option)
Dimensions: 65 x 78 x 28mm (without wall bracket)
Dimensions: 88.5 x 84 x 27.8mm (with wall bracket and DB9 port)
