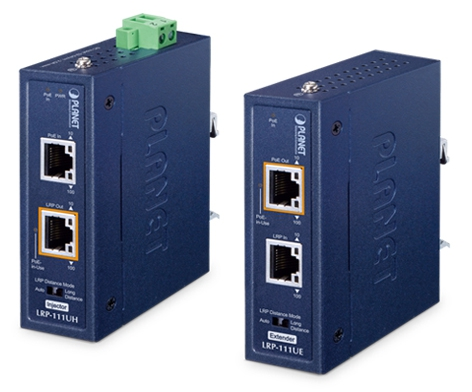

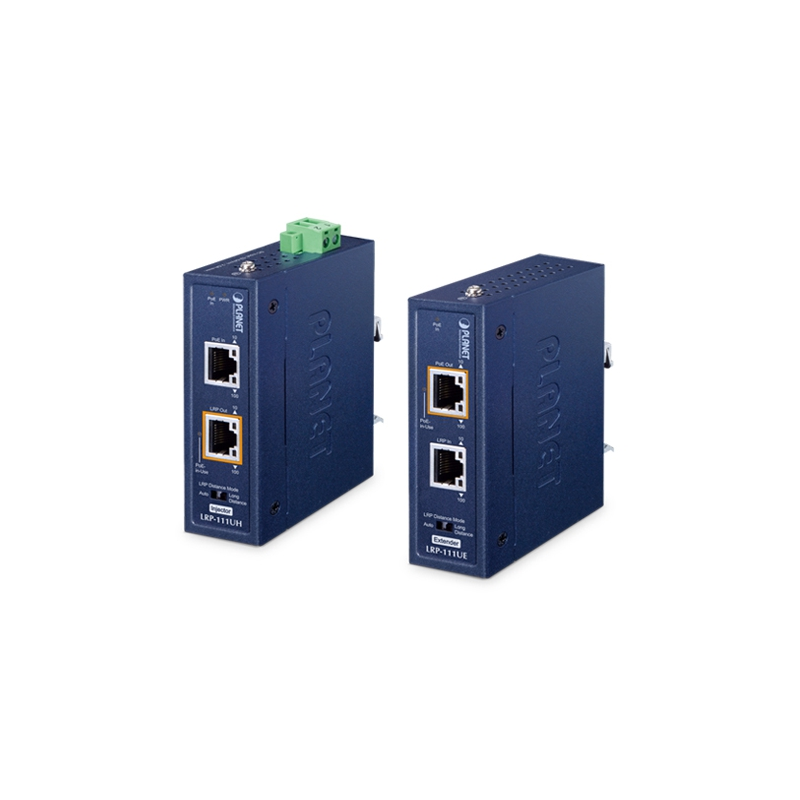

Ethernet over STP/UTP RJ45 cable, max. 800m with PoE pass-through. Set with TX and RX. Transparent Data

  • New

Up to 800 meters - Network extender over RJ45 UTP/STP patch cable

PoE is transmitted in cable from PSE to PD

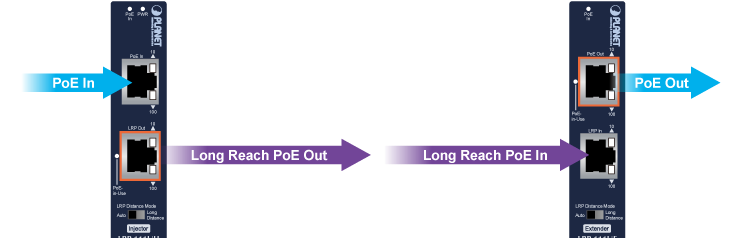

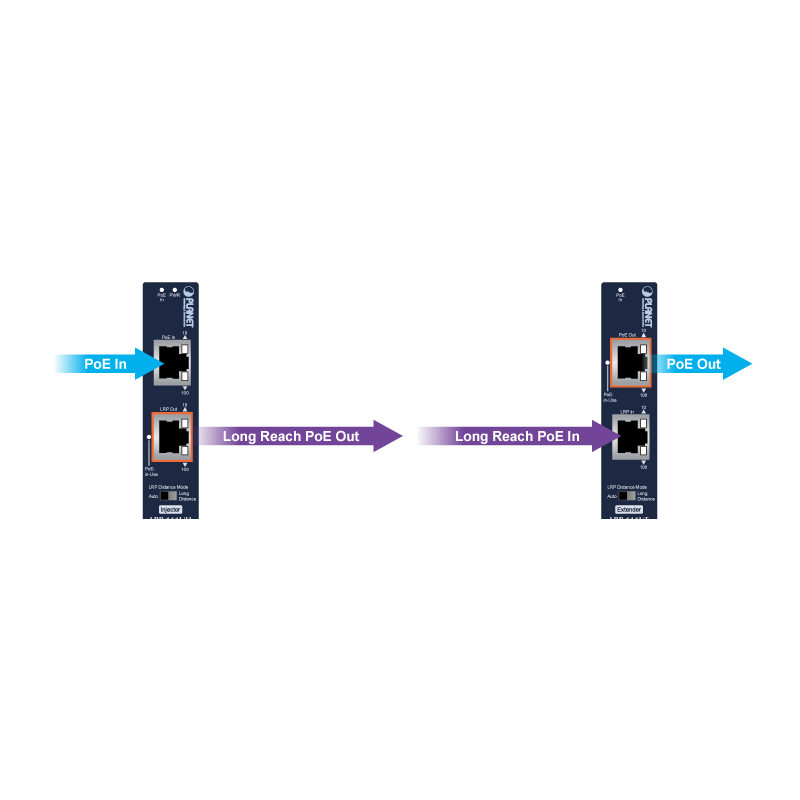

PoE in to RX, PoE out from RX

1 x 10/100Mbit BASE-TX RJ45 with PoE

Data speed: up to 100Mbit auto-optimization

Auto-optimization / auto-MDI/MDI-X

PoE Standard: IEEE 802.3at/af

PoE Output: 48-56VDC from 15.6 to 67 Watts

1 x RJ45 for VDSL + PoE

PoE in (RX) pin 1/2/4/5(+), 3/6/7/8(-)

PoE out (TX) pin:1,2,4,5(+), 3/6/7/8(-)

Distance: 100m w/PoE+, 500m w/PoE, 1000m without PoE

Purchase power supply from 48-56VDC min. 2Amp

Dimensions: 104 x 70 x 30 mm

ETH-VDSL-KIT+P
5,323.20 SEK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Long Reach LAN (VDSL) with PoE solution with a maximum range of over 1000 meters is designed to extend IP Ethernet transmission and supply power simultaneously in an external PoE-compatible powered device (PD) beyond the Ethernet limit of 100 meters.

Practical PoE over UTP Extender in harsh environments.

This VDSL KIT (RX/TX) is a brand new industrial-grade Long Reach PoE solution, is a Single-port PoE over UTP Extender Kit with long-range data and power transmission for distances up to 800m over UTP/STP cable, and another Ethernet cable for remote PoE IP camera, PoE wireless AP 3at/80t systems compatible with AP, provides point-to-point application for easy plug-n-play operation and deployment in climatically demanding environments with wide temperature range from -40 to 75 degrees C. Without the problem of power source, it makes the installation of remote PoE powered devices easier and more efficient.
