Network through powerlines
Ethernet through the same phase of electric cables - sold as a set (2 pcs.)
Not suitable for industrial use.

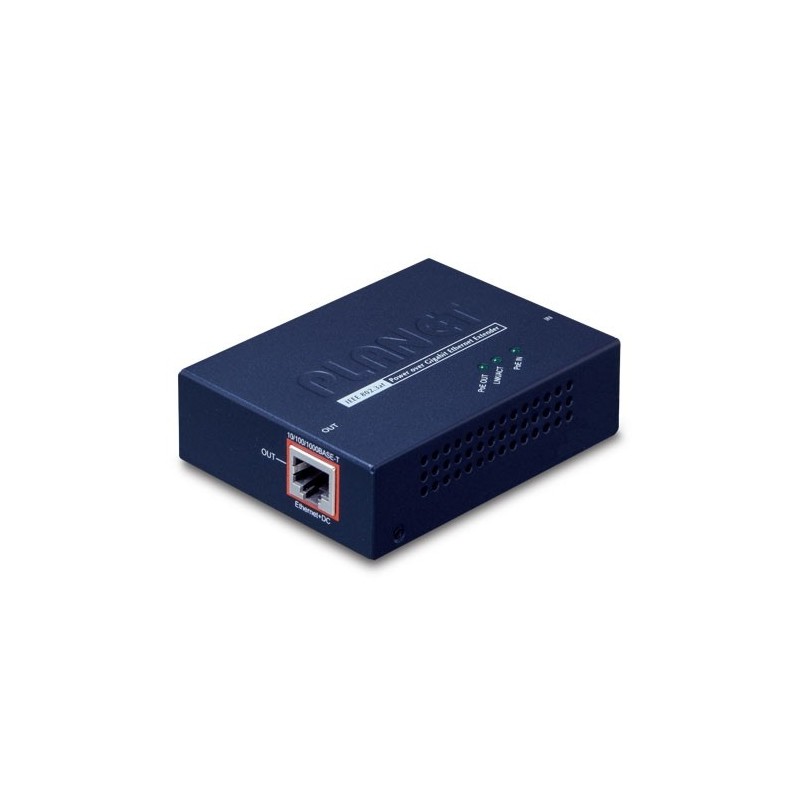

10/100 / 1000Mbit PoE Network Extender
Extend the network cable with PoE over the magic 100 meters
4 pieces. Extenders provide a maximum distance of 500 meters
Extenders are powered from PoE and pass PoE on to the next Extender
Dimensions: 94 x 70 x 26 mm
PoE In: Max 30.8 Watts
PoE Out: Max 26 Watts
Weight: 189g
With Eth-Poe boost, it is possible to expand the POE connection from the normal 100 m up to 300 m. For every 100 m, a Eth-Poe boost must be connected, but since Eth-Poe boost becomes power supplied by Poe, it can be placed most places.
Ethernet through the same phase of electric cables - sold as a set (2 pcs.)
Not suitable for industrial use.
Use VDSL connection over 2-thread cable where WiFi is an unstable connection
up to 1.4 km above eg. Conducted phone cable with 2 pcs. VDSL modules
Use 2 pcs. ETH-VDSL2+4+ or ETH-VDSL2+A and ETH-VDSL2+4+
Ethernet over 2-wire connection with VDSL
Ideal solution When the network distance is over 100 meters of border
ideal solution when a WiFi Link is an unstable connection
providing a transparent data connection
supply: 5VDC, 2A power supply included
DIP switch: VDSL connection must be set to CPE and the other for CO.
Prepared for your Montage, wall assembly. Your fittings are purchased
Order 2 pcs for a set.
2 pieces. VDSL2 + A can be established network connection over the 2-wire cable
Up to 1.4 Km Ethernet bridge via the 2 pieces. VDSL2 + A
speed depends on cable and length - up to 90Mbps
Automatically adapts speed to highest speed
can also communicate with ETH-VDSL2 + 4 + (4 port switch)
1 x LAN 10/100 BASE-T RJ45 auto-MDI / MDI-X port
1 x VDSL2 + A RJ11 she
supply: 5VDC, 2A power supply included
By 2 pcs. ETH-VDSL2 + A one shall be put to the CPE and the other to CO.
Connect each end of the 2-wire twisted pair cable.
ESD protection: 6KV DC Kirke DIN mounting, wall mounting. Your hardware purchased
SOLD SEPARATELY! Order 2 pieces for one set.
1000 meter - network extender over coax cable.
Poe transferred in cable
1 x 10 / 100mbit base-TX RJ45
Auto-Negotiation / Auto-MDI / MDI-X
Poe Standard: IEEE 802.3AT / BY
PoE Output: 48-56VDC Max. 25 Watt
PoE Mode: End-Span, RJ45 Pin 1/2 (+), 3/6 (-)
1 x BNC Hun - RG59 Coax
Max. Distance: 200m w / Poe +, 1000m w / Poe, 1600m without Poe
Power supplied from 48-56VDC min. 2amp
