RS422/485 to WiFi adapter. Connect RS422/485 equipment to a wireless network

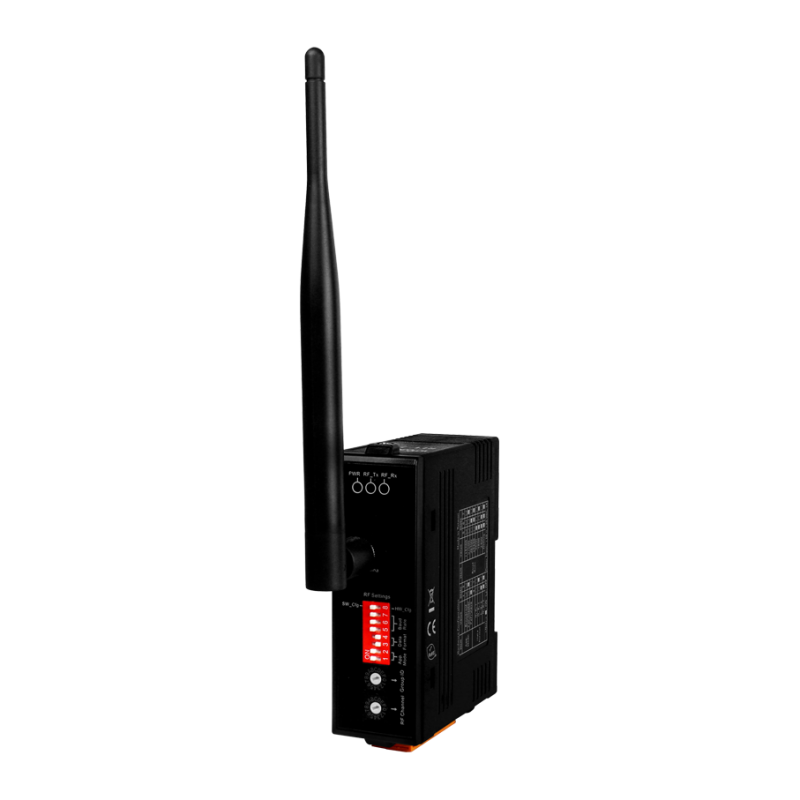

Transparent Wireless RS232 or RS485 link with 2 pcs.
Programmable with DIP- and Rotary switches
433 MHz Radio Frequency
16 RF Channels
0dBi Omni antenna
Baud Rates from 1200 to 115200 bps
Includes a PA switch that can be used to enhance the RF power
Wireless line of sight (LOS) transmission range of up to 500 meters at an RF Baud Rate of 9600 bps
RS232 (RX/TX/GND) and RS485 (2-wire) interfaces
N81, E81, O81
DIN-Rail
Temperatures, -25 - +75°C
TX power: 10dBm to 19dBm
Supply: 10 - 30VDC / 1Watt
Dim: 107 x 83 x 33 mm

Extend the distance between PC and RS232 Equipment
Straight through network cable
RS232 serial port boost up to 1.2 km
Baud rate range: 300 - 200kbps
Supply voltage: DC9-24V (not included )
Optical isolation
isolation voltage: 2500Vrms pulse or 500 V = continuous
Dimensions: 100 mm x 50 mm x 20 mm
Weight: 350 g

Bluetooth from PC to the adapter provides RS232 port
External antenna.
Bluetooth 2.0.
With 2 pcs. as back-to-back link
provides connection between 2 COM ports
Wireless transfer of data between serial ports
Up to 100 meters
Antenna connector is RSMA female
Setup via AT commands
Must be powered from 5 - 40VDC via screw terminal
USB mini cable to A male - for power from 5VDC
2 x screw terminal for any external power supply
Is not battery-powered
Use Putty for testing/setup
Help with setup can be purchased additionally

Easy to use
DIP switch for disconnecting and connecting signal (easy to connect external cables/props)
Branch too high signal
Red for low signal
RS232 8 signals DCD, RXD, TXD,, DTR, DSR, RTS, CTS, RI.
