Wireless serial port converter. Dual band Wifi. Select RS232, RS422, 2-wire RS485. Baud rate up to 921.6kbps. Up to 100 meters

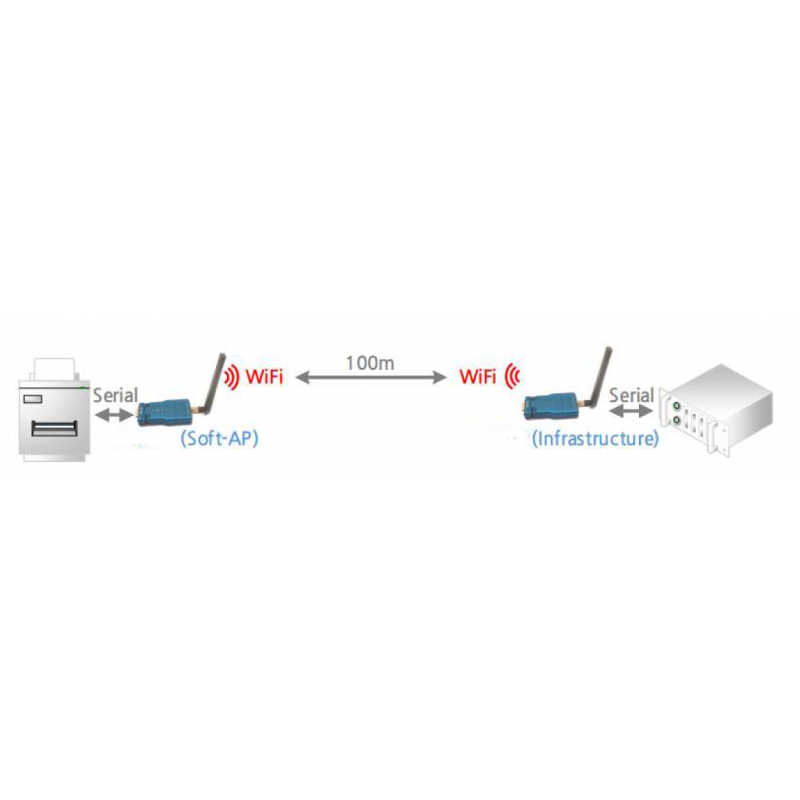

Wireless Com Port - Can Peer-to-Peer connection
IEEE 802.11 a/b/g/n
2.4 GHz, 5 GHz Dual Band
1 Port RS232 or RS422 or 2-wire RS485
Max.Baud Rate: 921.6 Kbps
Operating temperature: -40 - +85°C
with COM Port Re-Director, TestView
± 15KV IEC ESD protection
Supply voltage: 5 - 12VDC / 2W

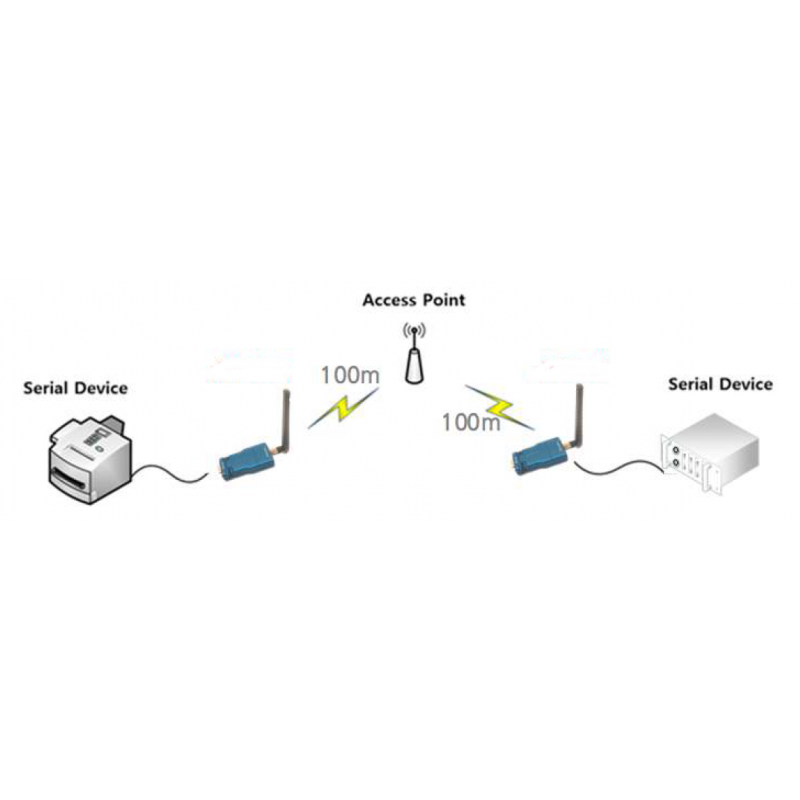

infrastructure, Soft AP, Roaming

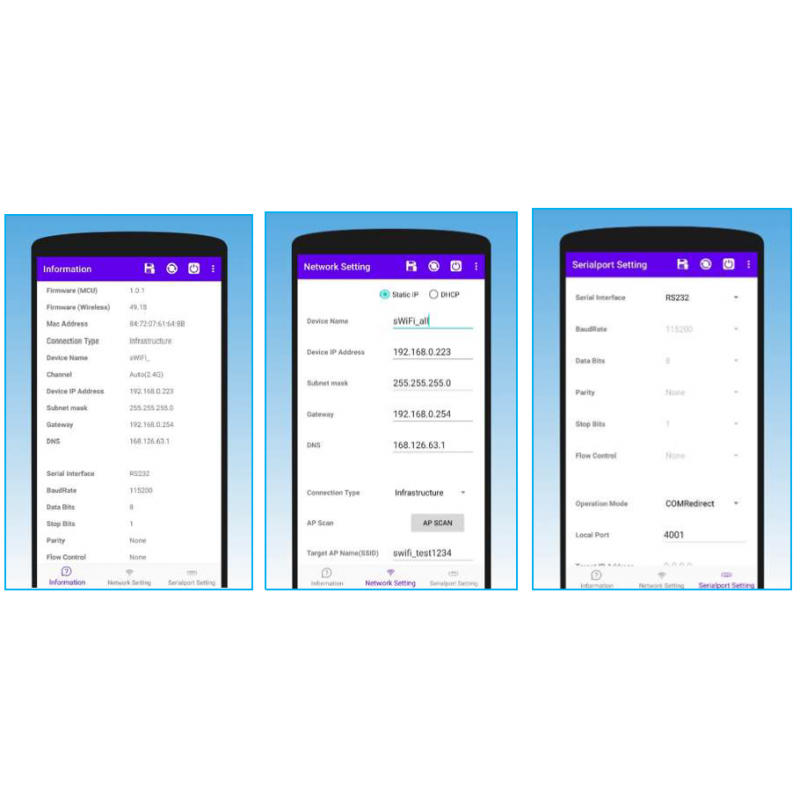

sWifi config Mobile App for Android

WIFI-SERIAL
2,646.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

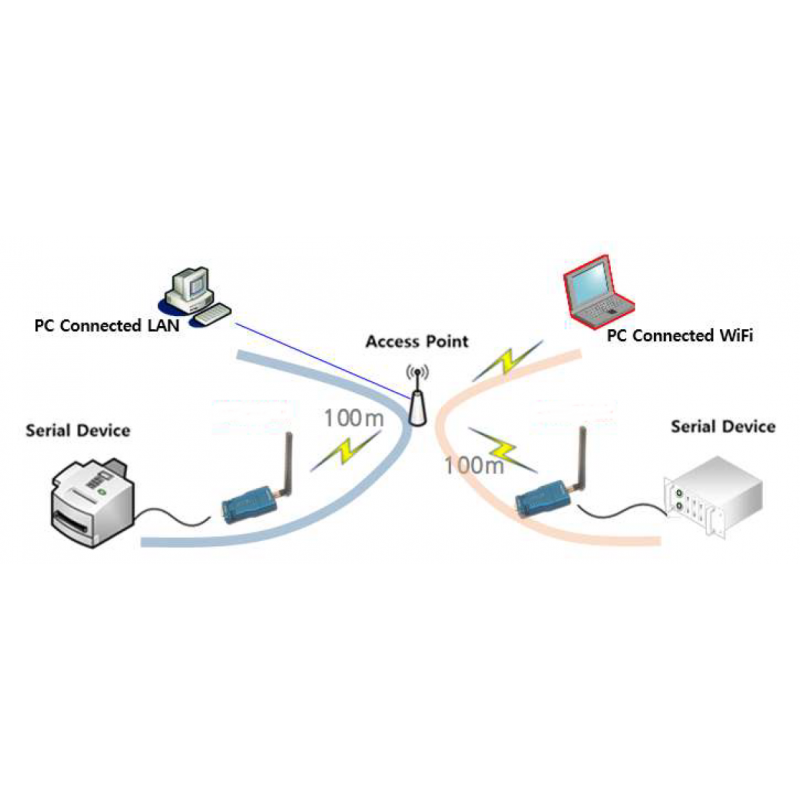

wifi Serial is a dual-band wireless gateway in small size, which provides WiFi communication to RS232 / 422/485 equipment. Equipped with a serial standard DB9 connector, WIFI Serial can be easily used for RS232 or RS422 / 485 equipment, giving the cable communication speed of up to 921.6 Kbps and wireless up to 54 Mbps. WIFI Serial delivers COM Port Redirector program to support remote control, monitoring and data communication of connected devices over the network (TCP / IP), and the connected serial devices can be used instantly without any program changes.
WIFI Serial Provides superior safety protocols for information protection. Provides basic WPA2 Personal, and also supplies WPA2 Enterprise to websites that require increased security, such as business and government offices to enable more reliable wireless communication. In addition, WIFI Serial provides both high performance and high reliability by using parts taking into account the properties of different application sites.
