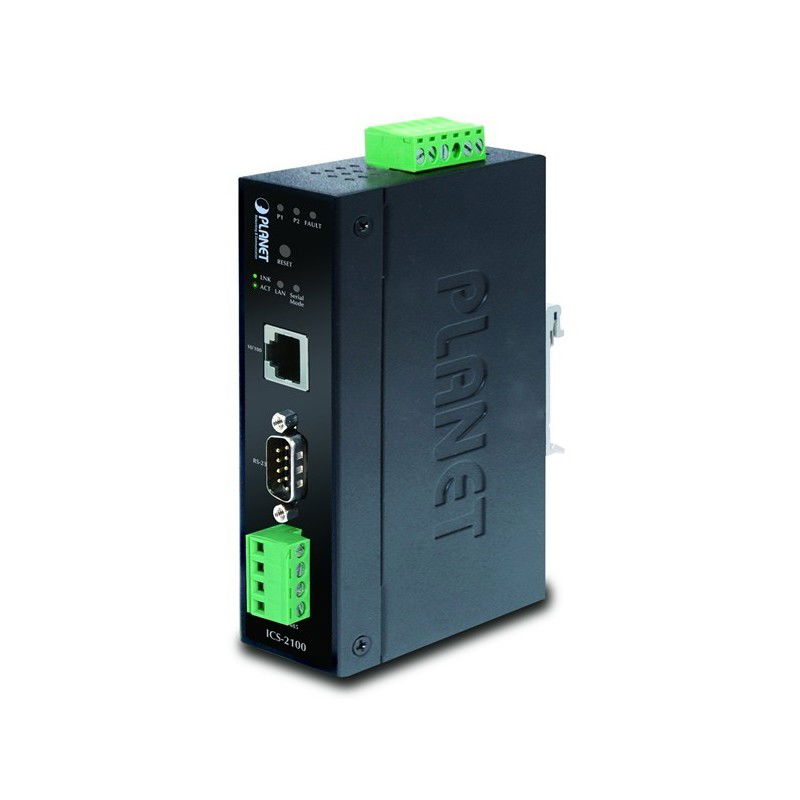

Seriel portserver til Ethernet

External COM port over Ethernet and Internet.
RS232 seriesport via DB9 Han, or
RS422 / 485 port via screw terminal block
Power supplied from 12 - 48VDC. Has redundant DC input.
DIN mounting

ETH1SER-P
1,367.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

ETH1SER-P er en Serial Device Server til Ethernet netværk, f.eks. lokalnet og/eller internet. Den serielle port opsættes som RS232, RS422 eller RS485, og arbejder med hastigheder helt op til 230,4 Kbit/s.

Administration
Indstilles via netværk over http, telenet eller via medfølgende opsætnings software
Andet
Den Serielle port kan sende data til 10 modtagere simultant. Leveres uden strømforsyning benyt f.eks. DC24V625MA-D
Driftstemperatur
-10 - 60°C
Kabinet
IP 30 metalkabinet i format 135 x 32 x 97 mm (H x B x D)
Kompatibilitet
COM-driver til Windows 2000, XP, 2003, Win7 32/64 bit og Win8
Montering
DIN skinne og vægbeslag monteringsdele
Netværk
1 x 10/100 Mbit Ethernet
Porte
En port, der kan bruges som RS232, RS422 eller RS485. Hastigheder fra 300bit/s til 230,4 Kbit/s, Databit:5/6/7/8, Stopbit:1/1,5/2. Paritet: Lige/Ulige/Ingen
Protokol
TCP, UDP, Telnet, DHCP, http, DNS, SMTP
Signaler
RS232: TxD, RxD, DCD, RI, GND. RS422: TxD+, TxD-, RxD+, RxD-. RS485 2-leder: Data+, Data-
Stik
Seriel port: RS232 DB9 hanstik og RS422/485 skrueterminaler. Ethernet: 1 x RJ45 hunstik
Strømforsyning
Redundant spændingsforsyning: 2 x 12 ~ 48 VDC via skrueterminaler
