Monitor, manage and manage industrial devices
2 x SFP slot for fiber transceiver (SM or MM)
Industrial EMC protection, temperature operation wide, -40 ° C ~ 85 ° C
fast- Ethernet 2 x 100/1000 SFP slots with RSTP Redundans
4 software Select RS232 / RS485 / RS422 serial ports, up to 921Kbps
TCP Server / Client, UDP, Virtual com and tunneling modes are supported
Embedded security with PPTP, IPSec or OpenVPN Client / Server
Redundant 12 ~ 48 VDC Power entries
Configuration via Web Browser / Serial Console / Telnet / Windows Utility
Robust metal cabinet with wall or DIN rail mounting
Make serial devices Ready for the network

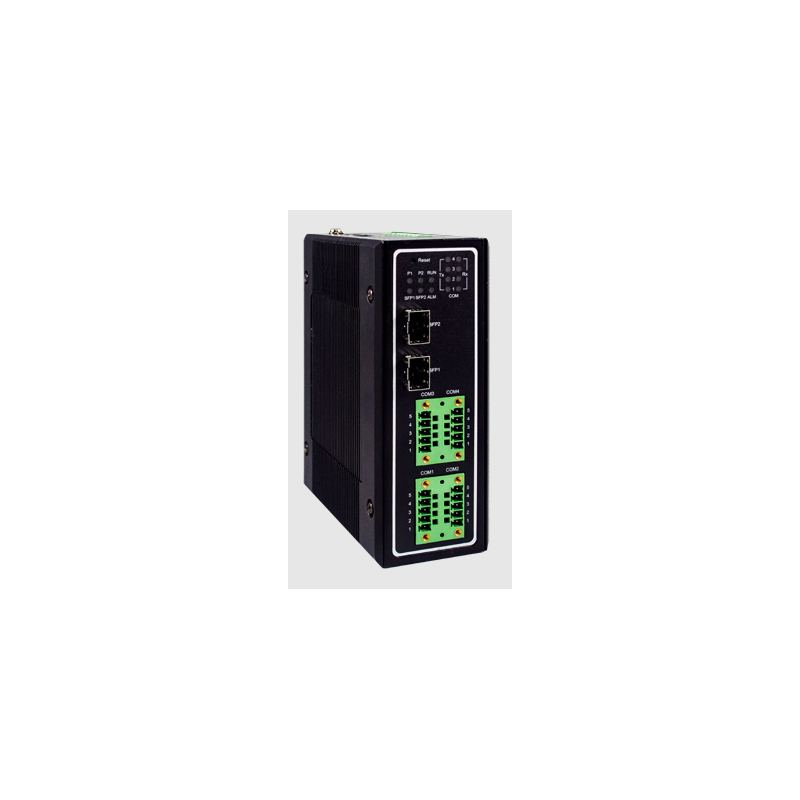

Industrial Serial Device Server Eth4SER-A is a cost-effective gateway to Ethernet (TCP / IP) and serial signal communication; Allows almost any serial device to be connected to a new or existing Ethernet network. By encapsulating serial data and transporting it over Ethernet, Eth4ser-A offers full duplex and bi-directional data seamlessly between the four serial ports and Ethernet network, through 2 x 100/1000 SFP fiber slots.
Advanced embedded security service Eth4ser-A embeds OpenVPN and IPSec VPN, allowing you to tunnel your data safely the design internet and prevent unauthorized control over your serial units of malicious people. The integrated Rapid Spanning Tree Protocol (RSTP) makes it possible to add a backup Ethernet link in case the primary failure.
Flexible configuration options Activate this device to be setup over Ethernet of telnet, web browser , Serial Console, or our Windows Utility. Packed in a robust metal housing for wall or DIN rail mounting with redundant 12-48 VDC wide range power input and a relay output, Eth4ser-A is ideal for almost any industrial and manufacturing automation process. Virtual Com software provides a virtual environment for applications by accessing Eth4SER-A through TCP. in industrial and manufacture automation fields, Eth4ser-A is used as a field Unit to connect Ethernet via the TCP / IP protocol directly. It is also specifically designed together with PLCs, HMI, Barcode scanners, data terminals, and much fun. "Real design protects it from very harsh EMC and environmental conditions, making it a cost-effective choice for advanced applications.
Eth4ser-a embeds high protection EMC, temperature operation wide, programming and flexibility Installation in one unit. POE versions can power via power-over Ethernet (POE 802.3AF), without additional cables and power supply. SDK versions allow you to make use of the powerful hardware and develop your own applications on top of 's reliable SDK.
Serial Device Server for RS232 / RS422 / RS485 with WiFi
2-port RS422/485 serial device servers, MOXA NP5232I
Compact design for easy installation
Socket modes: TCP server/TCP client/UDP
Easy-to-use Windows utility for configuring multiple device servers
Supports 10/100M Ethernet
Patented ADDC® (Automatic Data Direction Control) for 2-wire and 4-wire RS-485
SNMP MIB-II for network management
Internet Communication controller with 1 x CAN bus, 1 x RS-232, 1 x RS-485 and 1 x Ethernet
10/100 Base-TX Ethernet controller
TCP / IP protocol
80 MHz CPU
1 x RS-232 port, 1 x RS-485 port and 1X CAN port can be used simultaneously
Max Transmission Speed up to 1M BPS for CAN and 115.2Kbps for RS-232 RS-485
7 -Segment LED Display
Software Configuration for Can and RS-232
Web Configuration
Up to 25 Ethernet Client Connections
Supports Virtual Com
Wifi CAN converter. CAN CAN bridge. CAN PC
two CAN channels
AP mode and station mode
Compatible with Socket (TCP Server, TCP Client, UDP)
Support: Ethernet, ARP, IP, ICMP, UDP, DHCP, DNS TCP)
DIP switch for terminating
Isolation: 1500VDC
CAN baud rate: 5kbit / s to 1Mbit / s
Wifi: 2.4GHz IEEE802.11a / b / g
Supply voltage: 9 - 30VDC
Consumption: 80mA @ 24VDC
Dimensions: 118 x 94 x 23 mm
Operating temperature: -40 - + 85 ° C
