2 Ports serial port server, 2 x RS232 / 422/485, LAN and WiFi. Serial Device Server over Ethernet. 9 - 48VDC.

External COM ports via Ethernet and Internet

Serial device server to RS232/422/485 with WIFI

ETH2SER-A+RL
4,090.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

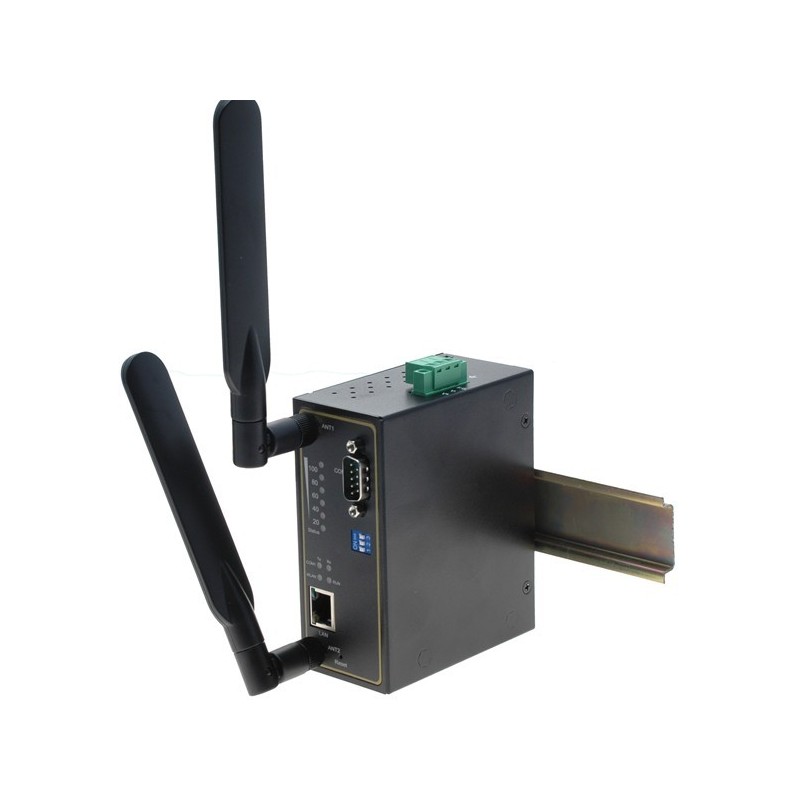

Wireless serial port server with large temperature range for WiFi and RJ45. For LAN and / or Internet. The wireless network port makes it easy to install network access to serial devices, where there is no wired network. ETH2SER-A + RL is a serial port converter for WLAN Ethernet network, for example. LAN or Internet. The redundant network connection ensures continued operation if the primary network connection fails. The serial ports configured as RS232, RS422 or RS485 and works at speeds up to 921 Kbit / s. Supports both 2.4GHz and 5GHz WiFi.

Administration
Indstilles over netværk via http, Telnet konsol eller Windowsprogram
Driftstemperatur
-10 – 60 °C
Kabinet
IP50-tæt metalkabinet i format 47 x 110 x 90 mm (H x B x D)
Montering
DIN skinne
Porte
To serielle porte, der kan bruges frit som RS232, RS422 eller RS485. Hastigheder fra 110 bit/s til 921 Kbit/s, Databit:5/6/7/8, Stopbit:1/2. Paritet: Lige/Ulige/Ingen
Protokol
Pv4, ICMP, TCP, UDP, DHCP Klient, SNMP, SMTP, HTTP, DNS, NTP, RADIUS, RFC2217, WPS
Signaler
RS232: TxD, RxD, RTS,CTS, DTR, DSR, DCD, GND. RS422: TxD+, TxD-, RxD+, RxD-, GND. RS485 2-leder: Data+, Data-, GND. RS485 4-leder: TxD+, TxD-, RxD+, RxD-, GND
Software
COM driver til Windows XP, 2003, Win 7 32/64 bit og Win 8
Stik
Serielle porte: 2 x DB9 han. Ethernet: 1 x RJ45 hunstik og 1 x R/SMA stik til medfølgende antenne
Strømforsyning
9 ~ 48 VDC via terminalblok (forbrug under transmission ca. 5,85 watt). Leveres uden strømforsyning benyt DC24V625MA-D
