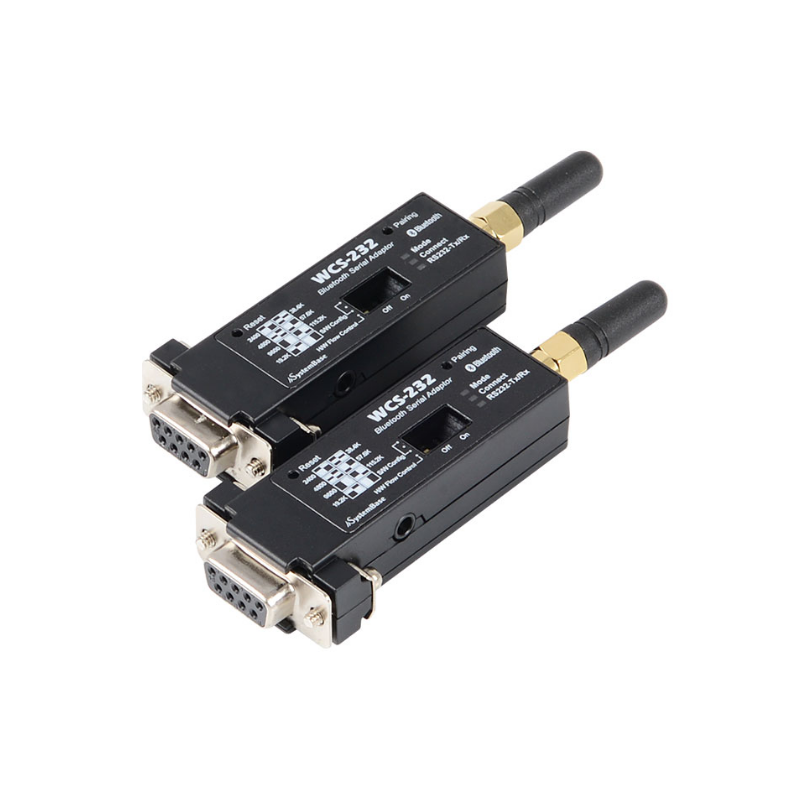

Wireless RS232 connection via Bluetooth - as a set. Up to 100 meters between the two RS232 ports.

Wireless RS232 link between 2 RS232 ports.
Only supplied as a set (2 pcs.).
BT Ver 2.0+EDR, Class1
Up to 100 meters with included antennas at line-of-sight
Up to 1km with larger external antennas (additional purchase)
Automatic establishment of connection at power on
With frequency hopping to avoid interference
Baud rate: 1200 - 921.6kbps, 8 data bits, O/E/No, 1/2 stop bit
Setting up Baud rate etc. with DIP switches
RTS/CTS on/off - DTR/DSR/DCD loop-back
Supports multi-connection: 1 master to 4 slaves
Supply voltage: 5 - 12VDC/80mA

BLUETOOTH-RS232+
3,435.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Wireless transfer of data between serial ports - up to 1,000 meters
BLUETOOTH SER + is a set of 2 adapters that plugs into the serial port, for example. a plotter and a PC.
ættet creates an operating system transparent connection via a Bluetooth radio signal.
range is up to 1,000 meters with directional antennas (not included) and no driver required.
2 adapters DB9 female connector.
Serial Communications Option: 1200 bps - 115,200 bps, full duplex, to 8 data bits, even / odd / no parity, 2.1 stop bits, RTS / CTS ON / OFF DTR / DSR / DCD loopback .
Bluetooth ver. 2.0 + EDR Class 1 79 channels wireless transfer of data between serial ports - up to 1,000 meters
BLUETOOTH SER + supports multi-connection. 1 master to 4 slaves.

Rev: LO

Forsyning
Får strøm via medfølgende USB kabel eller 230 VAC adapter. 5 – 12 VDC (maks. 80 mA v/5 VDC)
Frekvens
Frekvensbånd: 2.402 ~ 2.480 MHz, frekvens hop: 1.600 gange/sek.
OS SUPPORT
Uafhængig af styresystem, kræver ingen drivere
Rækkevidde
Op til 100 meters rækkevidde ved frit sigte og medfølgende antenner. Op til 1.000 meter ved anvendelse af større retningsbestemt antenne.
