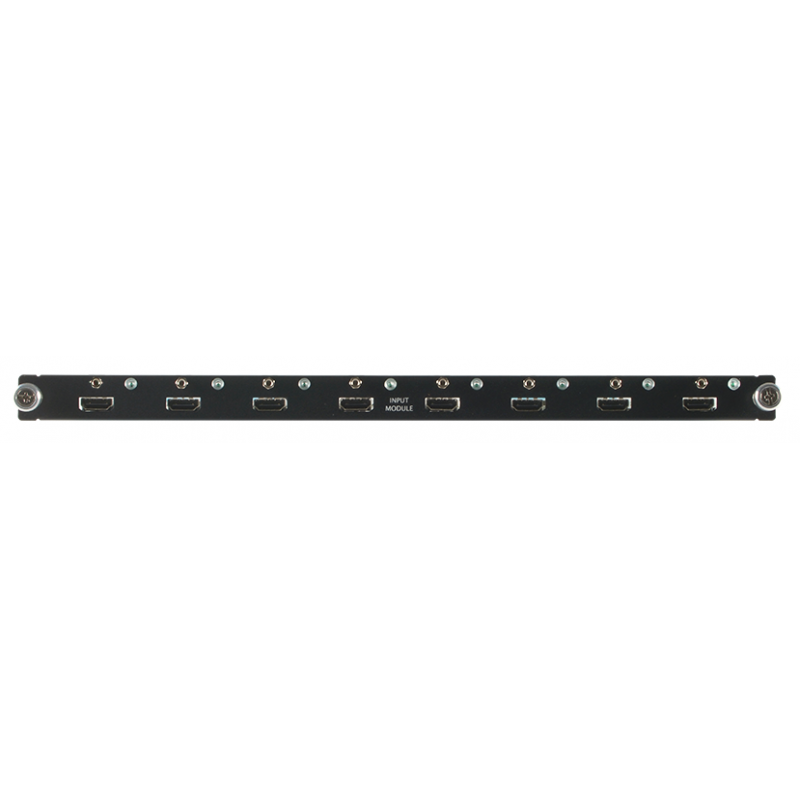

8 port HDMI input module for HDMI MATRIX32X32-M. 480i to 1080p @ 60Hz, 60Hz WUXGA,

8 channel HDMI input module for Video MATRIX
Video bandwidth: 225 MHz / 6.75 Gbps
Input ports: 8 x HDMI
video resolutions: 480i to 1080p @ 60Hz
Audio LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
Sampling frequency of audio: 32 ~ 192 kHz
integration module - plug-in

HDMI-MATRIX8IN
5,451.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

This input module allows the connection of up to 8 HDMI sources to the modular matrix. Resolutions up to 1080p @ 60Hz or WUXGA @ 60Hz (RB) and 3D signals are supported along with high-definition audio transmission including LPCM 7.1CH, Dolby Digital Plus, Dolby True HD and DTS Master Audio. HDMI inputs supports cable lengths of up to 15m @ 1080p / 8-bit or 10 m @ 1080p / 12-bit.
