1 channel software-selectable RS-232/485/422 port
Baud rate: 1200 - 230,400 / RS485 921,600
1 x 10/100 Mbps RJ45 Fast Ethernet port
Supports TCP Server/Client, UDP, Virtual COM and Tunneling modes
Modbus TCP/RTU/ASCII
Configuration via the web server side, the Telnet console and the Windows Utility
Upgradable firmware via Ethernet from a remote PC
Robust metal cladding; industrial EMC protection
Redundant dual DC inputs for non-stop operation
Optional DIN rail mounting
Supply: 9 - 30VDC or 5VDC / 9W
Dimensions: 78 x 65 x 28 mm
Temp: -40 - +70°C

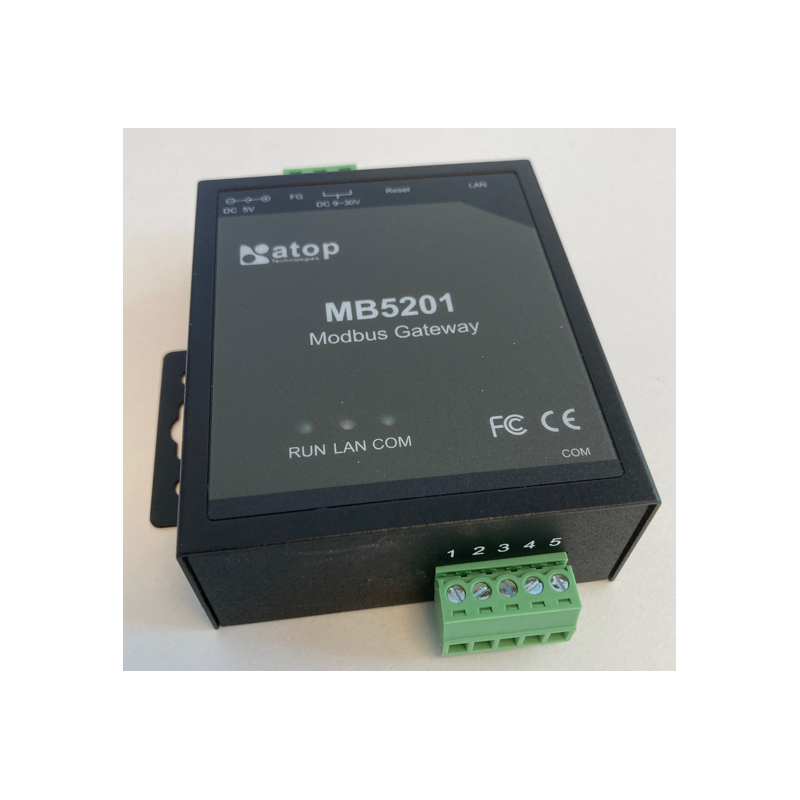

Modbus Gateway supports the four most commonly used communication standards, RS-232/485/422 and Ethernet. The easy-to-use configuration tool provided with the Modbus Gateway can quickly select the hardware interface and easily switch to the existing communication infrastructure. Industrial EMC protection and wide temperature operation make the gateway ready for any mission.
Switch between Modbus protocols: Modbus Gateway supports standard Modbus protocol and is able to convert any Modbus protocols between Modbus TCP, Modbus RTU and Modbus ASCII to all supported hardware interfaces.
Modbus ID Routing: Modbus Gateway supports various types of hardware communication interfaces, Modbus protocol conversion, and Modbus ID routing. Therefore Modbus Gateway can integrate your existing and complex Modbus hardware configuration into a simple network that can be easily managed
Serial device server with RS232 / RS485
RS232 via DB9
RS485 via screw terminal - 2-wire
Seriel port: 2 x RS232, 1 x RS232/485 maks. 115 Kbps
Signaler: RS232: Rx , Tx , RTS , CTS
RS485: Data +, Data - (2-leder halv duplex)
Digital I/O: 6 indgange og 2 udgange TTL
Protokoller: TCP, PPP
Stik til digital I/O: Skrueterminaler
3/5V SIM kortholder indbygget
3 lysdioder viser GPRS- og systemstatus
Strømforsyning: 9 - 35 VDC maks. 4,8 Watt. medfølger ikke
Leveres med beslag til DIN skinne
Monitor, manage and manage industrial devices
2 x SFP slot for fiber transceiver (SM or MM)
Industrial EMC protection, temperature operation wide, -40 ° C ~ 85 ° C
fast- Ethernet 2 x 100/1000 SFP slots with RSTP Redundans
4 software Select RS232 / RS485 / RS422 serial ports, up to 921Kbps
TCP Server / Client, UDP, Virtual com and tunneling modes are supported
Embedded security with PPTP, IPSec or OpenVPN Client / Server
Redundant 12 ~ 48 VDC Power entries
Configuration via Web Browser / Serial Console / Telnet / Windows Utility
Robust metal cabinet with wall or DIN rail mounting

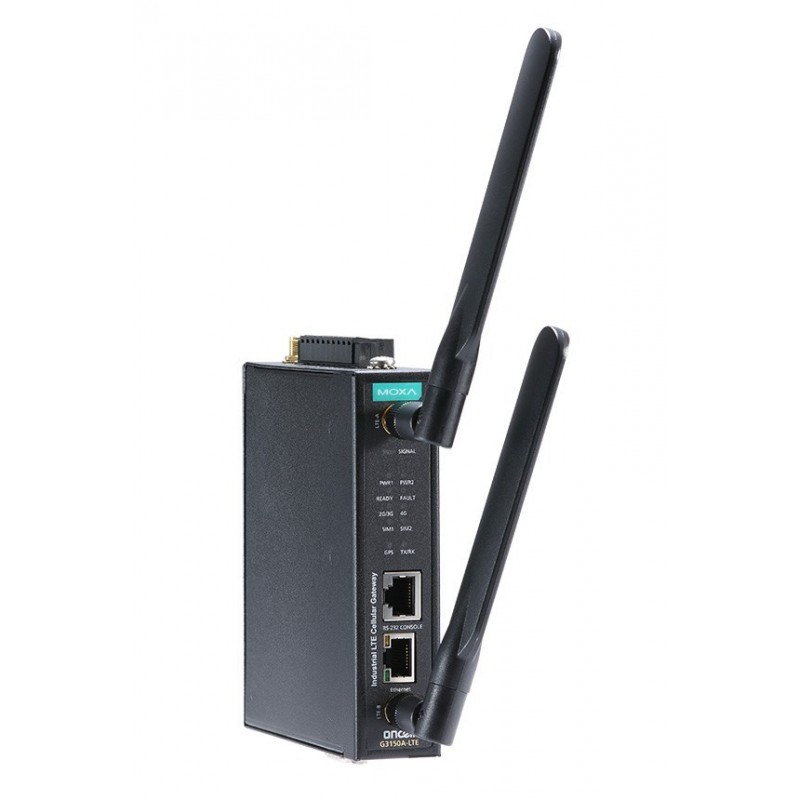

1 port LTE serial to Ethernet gateway / modem, RS232 / 422/485
GSM / GPRS / EDGE / UMTS / HSPA / LTE
Supports VPN and virtual comport
Operating temperature -30 -70 ° C
IP30
Supplied via the 12-48 VDC
DIN rail mounting (bracket supplied)
