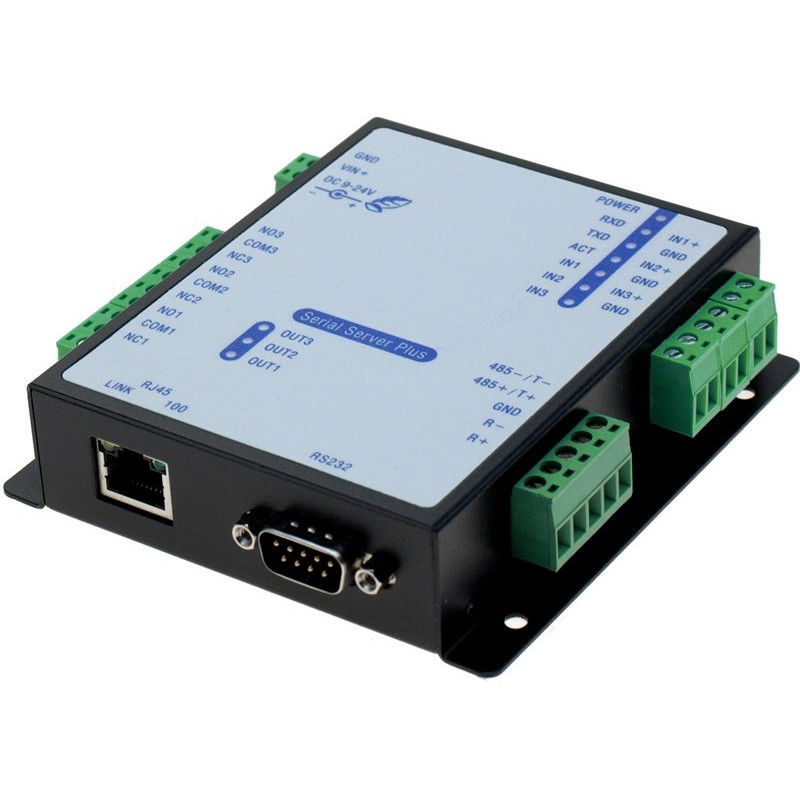

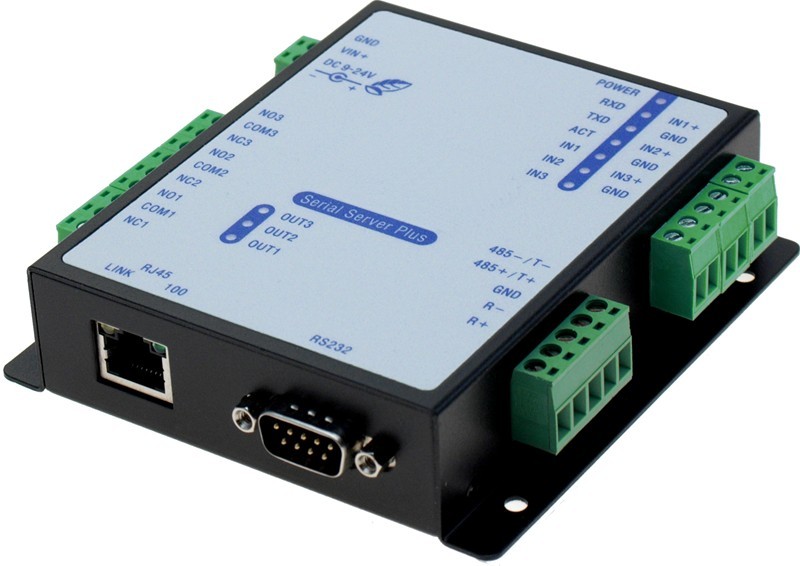

1 PORT SERIAL PORT SERVER RS232 / 422/485 with 3 x digital input, 3 x relay. 1 x RJ45. 9 - 24VDC.

External COM port and DI / DO via Ethernet and Internet
built-in web server
3 x Shift relays Expanses Max. 30 VDC 1A
3 x digital contact inputs
1 x RS232 (DB9 Male), RS422 or RS485 (screw terminal)
1 x Ethernet 10 / 100Mbit
Power supply from 9 to 24 VDC

ETH1SER-R3I3+
224.58 EUR
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

In addition to an RS232/422/485 port, the ETH1SER-R3I3+ also has 3 relay outputs and 3 digital inputs. ETH1SER-R3I3+ has a built-in web server, so it can be set up with a general. WEB browser. The ETH1SER-R3I3+ has a serial port that can be connected as RS232 or RS422/485 as well as 3 relay outputs and 3 inputs that can be controlled and read with simple commands. A simple Windows program is included which automatically finds all ETH1SER-R3I3+ on the network so they can be set to any IP address. There is a built-in WEB server for simple setup - access protected with a password. E-mail can be automatically sent when an input or output changes status.

CPU
16 bit CPU, 100 MHz
Driftstemperatur
0 – 55 °C
Hukommelse
2MB RAM, 256 KB ROM
Indgang
3 indgange der aktivereres ved at de ligges til stel
Kabinet
Stålkabinet i format 22 x 67 x 93 mm (H x B x D)
Netværk
1 x 10/100 Mbit Ethernet
Porte
En port, der kan bruges som RS232 eller RS422/485, 1200 bps – 230,4 Kbps
Protokol
TCP, UDP, DHCP, HTTP, ICMP, ARP, ICMP, Telnet, SMTP
Signaler
RS232: Rx , Tx , RTS , CTS , DTR , DSR og DCD. RS422: Rx+/- , Tx+/- , (4 -leder fuld duplex). RS485: Data + og Data - (2-leder halv duplex)
Skærm
9 lysdioder viser Tx, Rx, netværks- og systemstatus samt status på de digitale indgange og relæ udgangene
Stik
DB9M til RS232 og skrueterminaler til RS422/485. 1 x RJ45 til Ethernet. Spændingsforsyning: 1 x 5,5 mm DC jackstik (hun) til medfølgende 220 VAC adapter eller via skrueterminal. Skrueterminaler til relæudgange og isolerede digitale indgange
Strømforsyning
Kræver 9 - 24 VDC maks. 500 mA (ustabiliseret), netadapter medfølger
Udgange
3 relæer: Maks. 30 VDC 1 A type C skifte
