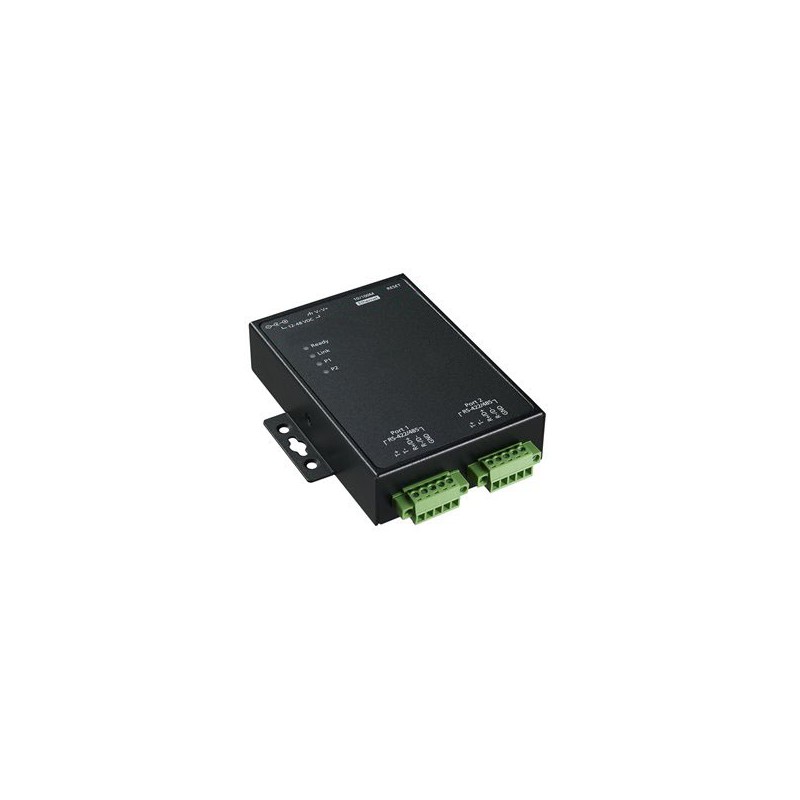

2 Ports serial port server RS422 / 485 Optoisolated, Moxa Nport 5230A-T. Serial Device Server

External COM ports via Ethernet and Internet

Serial Device Server with RS422 or RS485 via Ethernet and Internet.
RS422 / 485 seriesport via screw terminal
Dual DC Power input with Power Jack and Terminal block
Power supplies from 12 - 48VDC
DIN mounting

ETH2SER5230A
4,368.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

The Nport® 5200A device servers are designed to make serial devices networkable in a moment and give your PC software direct access to serial devices from anywhere on the network.

The NPort® 5200A series saves at least 50% on Power consumption compared to existing solutions to the market, which helps engineers meet the hard environmental challenges found in today's industrial environments.
Surge, which is typically due to high voltage caused by coupling and lightning transients, is a common threat to all electrical units . Moxa's leading overvoltage immunity solution used on NORT® 5200A serial, power and Ethernet lines, has been tested and proven in accordance with IEC 61000-4-5.
3-step web-based configuration of NPORT® 5200as is straightforward and user-friendly. NPORT® 5200A web console guides users through 3 simple configuration steps needed to activate the serial-to-Ethernet application. With this fast 3-step web-based configuration, a user only use 30 seconds to complete the NPORT® settings and activate the application, saving a lot of time and forces.
NPort® 5200as COM grouping function allows you to create a COM group and redirect data from it to several physical COM ports on Nport device servers. With COM grouping you will be able to control several physical serial ports simultaneously by operating only a COM port

Andet
Ethernet Line Protection EN 61000-4-5 (Surge) Level 2
Dimensioner
Without ears: 77 x 111 x 26 mm With ears: 100 x 111 x 26 mm
Driftstemperatur
0 to 60°C
Forsyning
Power Requirements Input Voltage 12 to 48 VDC Input Current 119 mA @ 12 VDC
Hastighed
10/100 Mbps, auto MDI/MDIX
Isolation
1.5 kV built-in
Materiale
Metal
Porte
2
Protokol
Network Protocols ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, IGMP V1/2, ARP
Signaler
RS-422 Tx+, Tx-, Rx+, Rx-, GND RS-485-4w Tx+, Tx-, Rx+, Rx-, GND RS-485-2w Data+, Data-, GND
Stik
8-pin RJ45
Weight
340 g
Watchdog
Built-in WDT (watchdog timer)
