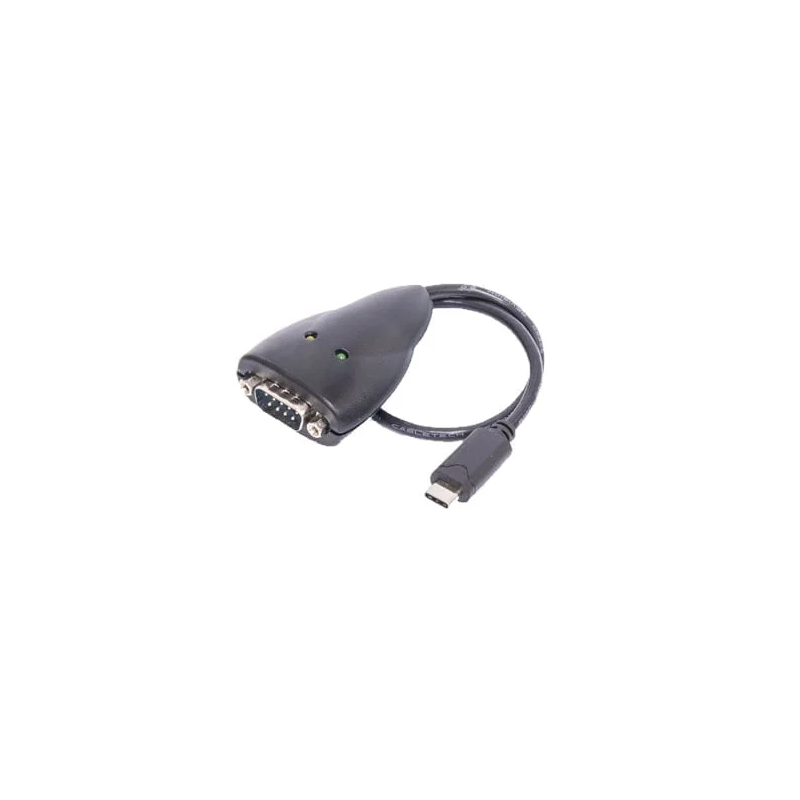

USB-C converter to 4-wire RS422 or 2/4-wire RS485, 0,25cm cable

Adds a high speed RS422 or RS485 serial port by connecting to a USB port
USB Type-C cable, 0,25m
Powered by USB port, no external power adapter required
LEDs indicate TxD and RxD for easy port monitoring and diagnosis
Installs as a standard Windows COM port
Automatic transmit and receive control for 2-wire RS485 half-duplex mode
Serial port protected with surge protection of 15kV
Non-standard baudrates supported
Easy plug and play installation and RS-422/RS485 device connection
High speed serial port with baud rate up to 3Mbps
Provides 15KV ESD protection and 600W surge protection for all serial signals
Supports Windows XP to 11, Server 2000 to Server 2022 (WHQL certified)
Supports Linux Kernel 3.0 and above
Supports Mac OS X 10.3 and above, driver signed by Apple

CNV-USBC-RS485T
55.34 GBP
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Mini CNV-USBC-RS485T is a surge and static protected USB to RS-422/485 Adapter.
The CNV-USBC-RS485T USB-to-Industrial Single RS-422/485 Adapter is designed to make industrial communication port expansion quick and simple.
Connecting to a USB port on your computer or USB hub, the CNV-USBC-RS485T instantly adds an industrial communication port to your system.
No jumper setting is required for setting this mini adapter to RS-422 or RS-485 mode.
The mini USB to RS-422/485 Adapter makes it easier than ever to add a RS-422 or RS-485 device to your system with easy plug-and-play and hot plug features.

Plugging the CNV-USBC-RS485T to the USB TYPE-C port, the adapter is automatically detected and installed.
There are no IRQ & COM port conflicts, since the port doesn’t require any additional IRQ, DMA, memory as resources on the system.
The RS-422/485 port functions as native Windows COM port, and it is compatible with Windows serial communication applications.
The USB Industrial I/O Adapter provides instant connectivity to RS-422/485 communication device for factory automation equipment,
multi-drop data collection devices, barcode readers, time clocks, scales, data entry terminals, PC-to-PC long distance communications and serial communication in harsh environments.
The USB Industrial I/O provides industrial solution for applications requiring single node or multi-drop communications over short and long distance.
